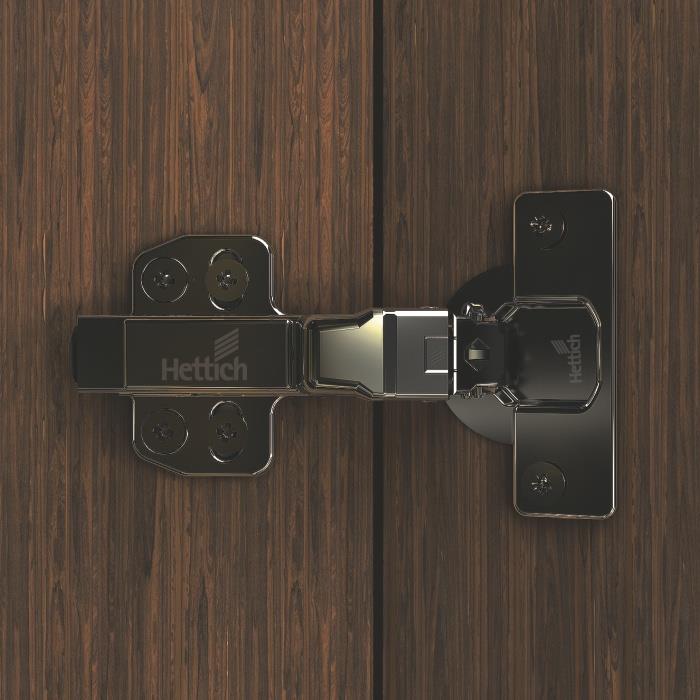

Onsys Magma Black 9.5 Crank Softclose Hinge (with 4-Hole Mounting Plate & Cover Caps)

Overview

The Onsys Magma Black 9.5 Crank softclose hinge is a concealed cabinet hinge from Hettich, finished in black nickel to match dark wood furniture. It is designed for half overlay door applications and includes an integrated soft-close (silent) system with a 105° opening angle. The set is sold as a pair and includes the hinges, mounting plates, and cover caps.

What It Does

This hinge allows cabinet doors to open and close silently and smoothly, using a clip-on installation method. The integrated soft-close mechanism prevents slamming, while built-in overlay and depth adjustments let installers fine-tune door alignment after mounting.

Who It Helps

• Furniture manufacturers and modular kitchen/wardrobe fabricators sourcing concealed hinges for dark-finish cabinetry
• Interior designers and contractors specifying premium soft-close hardware
• Homeowners and renovators replacing or upgrading cabinet hinges for a quieter, higher-end feel

Key Capabilities

• Black nickel-plated finish designed to blend with dark wood furniture
• Integrated Silent System for soft, quiet closing
• 105° opening angle
• Rated for 40,000 open/close cycles
• Quality classification under EN 15570, Level 2
• Integrated overlay adjustment: +2 mm / −2 mm
• Integrated depth adjustment: +2.5 mm / −1.5 mm
• Height adjustment available at the mounting plate
• Clip-on mounting for straightforward installation
• Suitable for door thickness of 14–25 mm
• Cup diameter 35 mm, cup depth 11.5 mm

Product Specifications

Pricing and Availability

Variants Available

• Size: Full Overlay / 0 crank
• Size: Half Overlay / 9.5 crank
• Size: Inset / 16 crank

Buyer Questions This Page Should Answer

What door thickness does this hinge fit?

It is designed for door thickness between 14 mm and 25 mm.

Does it close quietly?

Yes, it has an integrated Silent System for soft, silent closing.

How wide does the door open?

The hinge supports a 105° opening angle.

How durable is the hinge?

Each hinge is designed to withstand 40,000 open/close cycles and carries a 10-year warranty.

Can the hinge be adjusted after installation?

Yes — it offers integrated overlay adjustment (+2 mm / −2 mm), depth adjustment (+2.5 mm / −1.5 mm), and height adjustment at the mounting plate.

What is included in the package?

Each pair includes 2 hinges, 2 mounting plates, and 2 cover caps.

What finish and color is available?

Magma Black with a black nickel-plated finish, intended to complement dark wood furniture.

What overlay type does this fit?

This specific listing (SKU 9354034) is configured for Half Overlay applications; other crank variants (Full Overlay / 0 crank and Inset / 16 crank) are available under the related product listing (SKU 9354035_P).

Proof or Trust Signals

• Quality classification under EN 15570, Level 2
• Manufactured/imported by Hettich India Pvt Ltd
• 10-year warranty
• Rated for 40,000 open/close cycles
