Hettich InnoTech Atira Narrow Pull-Out – Silver, 40 kg, 470 mm Depth
Overview

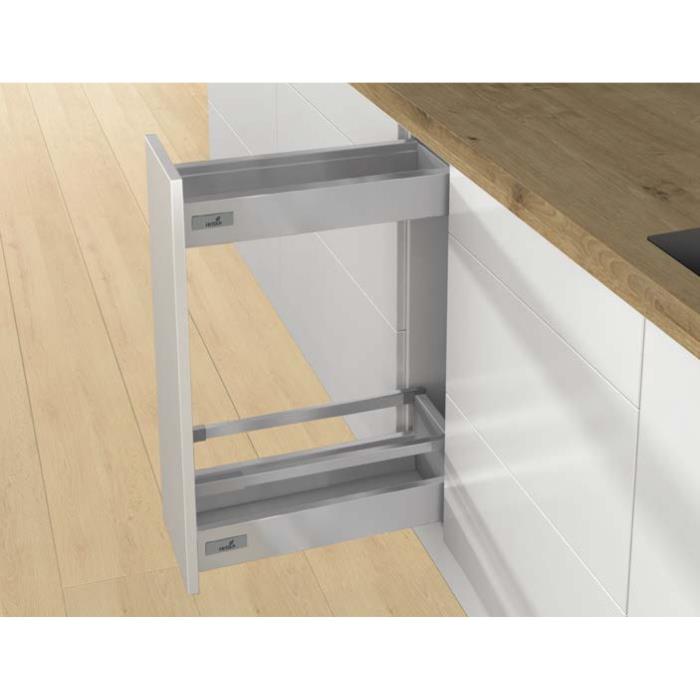

The Hettich InnoTech Atira Narrow Pullout is a linear drawer system designed for tight kitchen spaces. It uses Quadro drawer runners mounted diagonally on the left and right for smooth, soft-closing operation, and is built for narrow cabinet widths where full-size drawer systems won't fit.
Product Facts
| Attribute | Detail |
|---|---|
| Product name | InnoTech Atira Narrow Pullout (Height 70+144mm)/Silver/40 Kg/Depth 470 mm |
| Brand | Hettich |
| Category | Linear Drawer Systems > InnoTech Atira > Innotech Atira Narrow Pullout |
| SKU | 9332372 |
| Finish | Silver |
| Material | Powder coated steel |
| Weight capacity | 40 Kg |
| Country of origin | Germany |
| Warranty | 20 years |
What It Does
This narrow pull-out drawer system organizes kitchen essentials in slim cabinet spaces. It relies on diagonally mounted Quadro runners on both sides for stable, smooth extension and soft closing, even in compact installations.
Who It Helps
- Kitchen designers and modular kitchen fabricators fitting drawers into narrow cabinet sections
- Homeowners renovating kitchens with limited cabinet width
- Contractors sourcing German-engineered drawer hardware with long warranty coverage
Key Specifications
| Spec | Value |
|---|---|
| Minimum cabinet internal depth | 485 mm |
| Installation width | 9.5 mm |
| Cabinet body height (max) | 750 mm |
| Cabinet body width (max) | 300 mm |
| Drawer height | 70 + 144 mm |
| Drawer length | 470 mm |
| Total load capacity | 20 kg max (runner-rated); 40 kg (system-rated) |
| Closing functionality | Soft closing |
| Extension type | Full extension |
| Cycle testing | 80,000 cycles |
| Unit | Set |
Package Contents
Each set includes:
- 4 drawer side panels
- 4 front & back connectors
- 2 runners
- 4 cover caps
- 2 railings
- 2 railing connectors
Installation Requirements
- Quadro drawer runners must be mounted diagonally on both the left and right sides.
- Minimum cabinet internal depth of 485 mm is required.
- Maximum cabinet body height is 750 mm and maximum cabinet body width is 300 mm, making this suited to narrow cabinet openings.
Buyer Questions This Page Should Answer
What is the load capacity of this drawer system?
The system supports up to 40 kg total load capacity, with the Quadro runner rated at 20 kg max per side.
What depth of cabinet does it need?
A minimum cabinet internal depth of 485 mm is required, and the drawer length itself is 470 mm.
Does it close softly?
Yes, it features soft-closing functionality with full extension.
What finish and material options are available?
This listing is Silver finish, made of powder coated steel.
Where is it manufactured?
Germany.
What warranty is included?
20 years.
What's included in the box?
4 drawer side panels, 4 front & back connectors, 2 runners, 4 cover caps, 2 railings, and 2 railing connectors — one complete set.
Resources
Current product facts
- Product: InnoTech Atira Narrow Pullout (Height 70+144mm)/Silver/ 40 Kg/ Depth 470 mm
- Brand: Hettich
- Category: Linear Drawer Systems > InnoTech Atira > Innotech Atira Narrow Pullout > Festive Magic Offer
- SKU: 9332372
- Price: ₹8,098.8
- Availability: InStock
