Hettich WingLine L Push-to-Move Left (12–25kg per wing, 2400mm Profile)

Overview

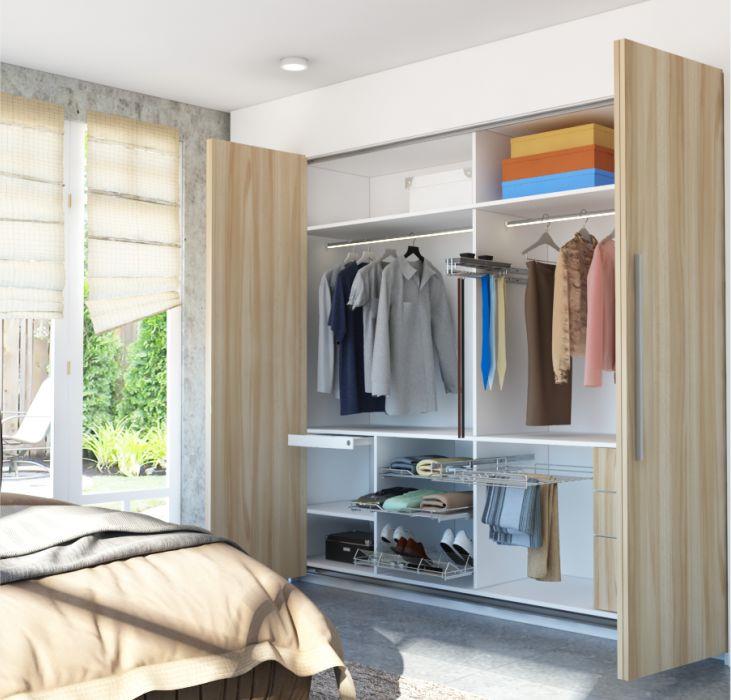

The Hettich WingLine L Push-to-Move Left is a sliding and folding door hardware set designed for wide, heavy wooden wardrobe or cabinet doors. It supports a weight capacity of 12 to 25 kg per wing and is built for a maximum door height of 2400 mm and maximum door width of 600 mm, with a track/profile length of 2400 mm.

What It Does

This system enables push-to-move opening for one folding door in a 2-wing overlay configuration, allowing wooden doors to slide and fold without external handles. It includes 3D adjustment for precise alignment after installation:

• Height adjustment: +/- 3 mm
• Width adjustment: +/- 2 mm
• Depth adjustment: +3 mm to -2 mm

The mechanism is tested for 40,000 open-close cycles and carries a 15-year warranty.

Who It Helps

This product is intended for furniture manufacturers, modular kitchen and wardrobe fabricators, interior contractors, and carpenters who are installing sliding-and-folding wooden door systems on wide wardrobes or storage units and need a push-to-open (handle-free) mechanism rated for heavier door wings.

Key Specifications

Compulsory Accessories Required

This WingLine L set requires the following components to be ordered separately for a complete working installation:

• Article 9071313 — Sensys 8675 hinge, 110° opening angle, for Push to Move and Pull to Move mechanisms
• Article 9091575 — Sensys Mount Plate
• Article 9237758 — Profile Mounting Clip

Without these three accessories, the WingLine L set alone will not complete the push-to-move mechanism.

Buyer Questions This Page Should Answer

What weight can this system handle per door wing?

Between 12 kg and 25 kg per wing.

What is the maximum door size this fits?

Up to 2400 mm in height and 600 mm in width per door wing, matching the 2400 mm profile/track length.

Does this include the hinges and mounting plate?

No. The hinge (article 9071313), mount plate (article 9091575), and profile mounting clip (article 9237758) must be ordered separately — they are compulsory for the mechanism to function.

What door material and thickness does it support?

Wooden doors with a thickness of 16 mm to 25 mm.

How is opening triggered?

By push-to-move — no handle or pull mechanism required for opening the folding door.

How durable is the mechanism?

Tested through 40,000 open-close cycles and backed by a 15-year warranty.

Can this be adjusted after installation?

Yes. It supports 3D adjustment: height +/- 3 mm, width +/- 2 mm, and depth +3 mm to -2 mm.

Is a lock option available?

No, this configuration does not include a lock option.

Proof or Trust Signals

• 40,000-cycle durability testing
• 15-year manufacturer warranty
• Precise 3D post-installation adjustment tolerances
• Defined compulsory accessory list to ensure correct, complete installation
