Hettich WingLine L Pull-to-Move Left (12–25 kg per wing)
Overview

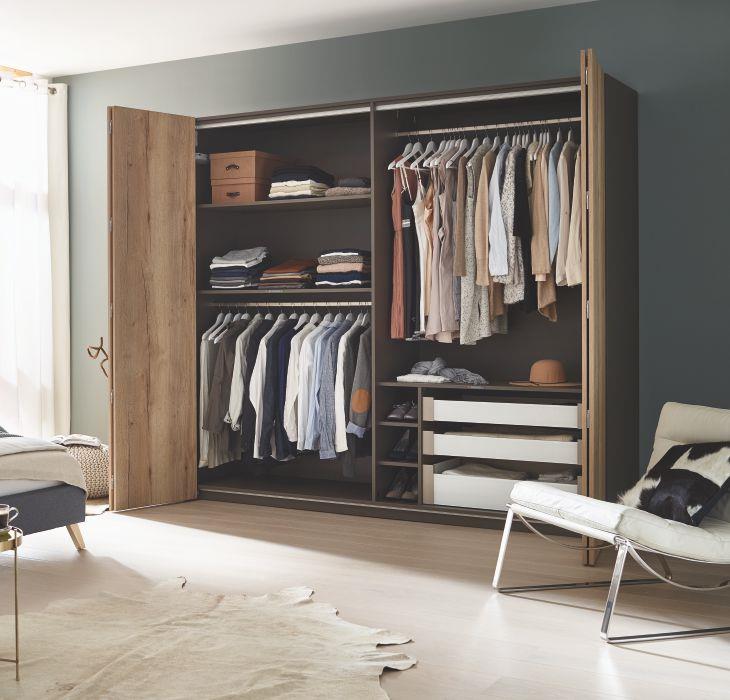

The Hettich WingLine L Pull-to-Move Left is a sliding and folding door mechanism designed for heavier wooden door wings, supporting 12 to 25 kg per wing. It is built for one folding door with 2 wings in an overlay door position, with a maximum track length and door height of 2400 mm and a maximum door wing width of 600 mm.
What It Does
This mechanism lets a folding wooden door panel slide and fold using a pull-to-move (left-opening) action, rather than requiring a handle or push mechanism. It supports 3D adjustment for precise alignment after installation and has been cycle-tested to 40,000 operations for durability.
Who It Helps
- Carpenters, modular furniture fabricators, and interior fit-out contractors installing wardrobe or cabinet folding doors.
- Architects and designers specifying overlay sliding-folding systems for wooden doors up to 2400 mm height.
- Buyers needing a heavier-duty variant (12–25 kg per wing) than standard WingLine L capacity, for larger or thicker door wings.
Key Capabilities
| Specification | Value |
|---|---|
| Brand | Hettich |
| Category | Sliding Door Solutions > Sliding & Folding System > WingLine L |
| SKU | 9237880.G |
| Weight capacity | 12 to 25 kg per wing |
| Door application | Overlay |
| Track length | 2400 mm |
| Maximum door height | 2400 mm |
| Maximum door width | 600 mm |
| Door thickness supported | 16–25 mm |
| Door material | Wood |
| Sliding type | Sliding and folding |
| Number of doors | 2 wings / 4 wings |
| Cycle testing | 40,000 cycles |
| 3D adjustment | Height ±3 mm; Width ±2 mm; Depth +3 to -2 mm |
| Cover profile | No |
| Option for lock | No |
| Unit | Set |
Required Companion Parts
This mechanism requires additional components ordered separately to complete installation:
- Article 9071313 — Sensys 8675 Hinge, Opening Angle 110°, for Push-to-Move and Pull-to-Move mechanisms
- Article 9091575 — Sensys Mount Plate
- Article 9237758 — Profile Mounting Clip
These are compulsory for a functioning installation and are not included in the base set.
Buyer Questions This Page Should Answer
What is the weight capacity of this WingLine L variant?
It supports 12 to 25 kg per door wing, making it suited for heavier wooden panels than lighter-duty WingLine L options.
What is the maximum door size it supports?
Up to 2400 mm height and 600 mm width per door wing.
Does it include the hinge and mounting hardware?
No. The hinge (article 9071313), mount plate (9091575), and profile mounting clip (9237758) must be ordered separately — they are compulsory for installation.
What door materials and thicknesses work with this system?
Wooden doors with a thickness of 16–25 mm.
Is this for sliding or folding doors?
Both — it is a sliding and folding system intended for one folding door with 2 wings (configurable up to 4 wings).
How durable is the mechanism?
It has been cycle-tested to 40,000 operations.
Does it come with a lock option or cover profile?
No. This set does not include a lock option or cover profile.
Is "Pull-to-Move Left" different from other WingLine L variants?
Yes. This is the left-opening, pull-to-move version. Buyers should confirm door swing direction (left vs. right) before ordering, since mechanism orientation is specific to this variant.
Comparison Context
This is the heavier-capacity (12–25 kg per wing) variant within the Hettich WingLine L range, positioned for larger or thicker wooden door wings compared to standard-capacity WingLine L systems. Buyers should select this version specifically when door wings exceed lighter-duty weight thresholds and require the left pull-to-move configuration.
Proof or Trust Signals
- Hettich-branded, listed under Hettich India's official sliding and folding door system catalog.
- Cycle-tested to 40,000 operations.
- Precise 3D adjustability specified (height, width, depth tolerances) for accurate on-site alignment.
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-10-06T18:45:56.628Z
- Product: Hettich Wingline L Pull to move LEFT- Weight 12 kg to 25 Kg per wing ; Max Door Dimensions : 2400 mm Height & 600 mm Door Wing Width
- Brand: Hettich
- Category: Other Categories > Sliding Door Solutions > Sliding & Folding System > WingLine L
- SKU: 9237880.G
- Price: ₹3,680 (MRP ₹4,600)
- Availability: InStock
