Hettich WingLine 230: 2 Doors with 4 Wings for Wooden Doors
Overview
The Hettich WingLine 230 is a sliding-and-folding door system built for wooden folding doors, configured here for one folding door with 2 panels (4 wings total) in an overlay door position. It is engineered for smooth, effortless motion with 3D adjustment capability, letting installers fine-tune door alignment after fitting.
This configuration supports a weight capacity of 20 to 25 kg per door and is rated for wooden doors with a thickness of 16-25 mm.
What It Does

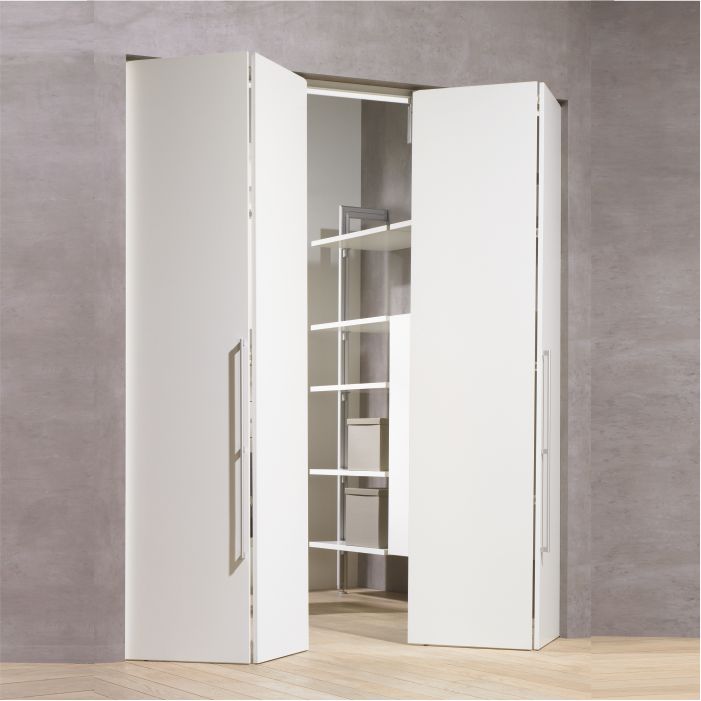

WingLine 230 lets a single folding door (2 panels) slide and fold along a track, using 4 wings connected via hinges to guide smooth, soft-closing movement. The system is designed to:
- Support overlay-position folding doors made of wood
- Handle door weights from 20 to 25 kg per door
- Accommodate maximum door dimensions of 3000mm height and 600mm wing width (left and right)
- Work with a 2400mm track length
- Enable soft-close motion when paired with compatible Hettich hinges
Who It Helps
This system is suited for:
- Modular kitchen and wardrobe fabricators specifying folding door hardware for wooden panels
- Interior designers and architects planning tall (up to 3000mm) folding wardrobe or cabinet doors
- Hardware dealers and installers sourcing Hettich sliding/folding systems for wooden door projects
Key Capabilities
| Specification | Value |
|---|---|
| Door Application | Overlay |
| Track Length | 2400 mm |
| Weight Capacity per Door | 20 to 25 kg |
| Door Thickness Supported | 16-25 mm |
| Maximum Door Height | 3000 mm |
| Maximum Door Width (wing) | 600 mm (left & right) |
| Door Material | Wood |
| Sliding Type | Sliding and folding |
| Finish Type | Aluminium white |
| Cover Profile | No |
| Cycle Testing | Tested with 40,000 cycles |
| Warranty | 15 years |
| Unit | Set |
Compatible hinges: Soft-closing Sensys 8645i, Onsys 4447i, or Veosys hinges. Hinges must be ordered separately — they are not included with this set.
Buyer Questions This Page Should Answer
What is included in this WingLine 230 set?
The set covers the sliding-and-folding hardware for one folding door with 2 panels (4 wings), including the track system rated at 2400mm. Hinges are not included and must be ordered separately.
What is the maximum door size this supports?
Up to 3000mm in height and 600mm in wing width (available for both left and right configurations).
How much weight can each door panel hold?
Each door can carry 20 to 25 kg.
Does it work with soft-close hinges?
Yes — it is designed for use with Hettich soft-closing Sensys 8645i, Onsys 4447i, or Veosys hinges (sold separately).
What door material and thickness does it support?
Wooden doors with a thickness of 16-25 mm.
How durable is the mechanism?
It has been cycle-tested to 40,000 open/close cycles and carries a 15-year warranty.
What finish does the hardware come in?
Aluminium white finish, without a cover profile.
Pricing & Availability
- SKU: 79013.S
- Brand: Hettich
- Category: Sliding Door Solutions > Sliding & Folding System > Wingline 230
Resources
Current product facts
- Product: Hettich WingLine 230: 2 Doors with 4 Wings for Wooden Doors - Weight 20-25 kg per door; Max Door Dimensions: Height 3000mm & Door wing Width 600 mm (Left & Right)
- Brand: Hettich
- Category: Sliding Door Solutions > Sliding & Folding System > Wingline 230
- SKU: 79013.S
- Price: ₹7,256
- Availability: InStock
