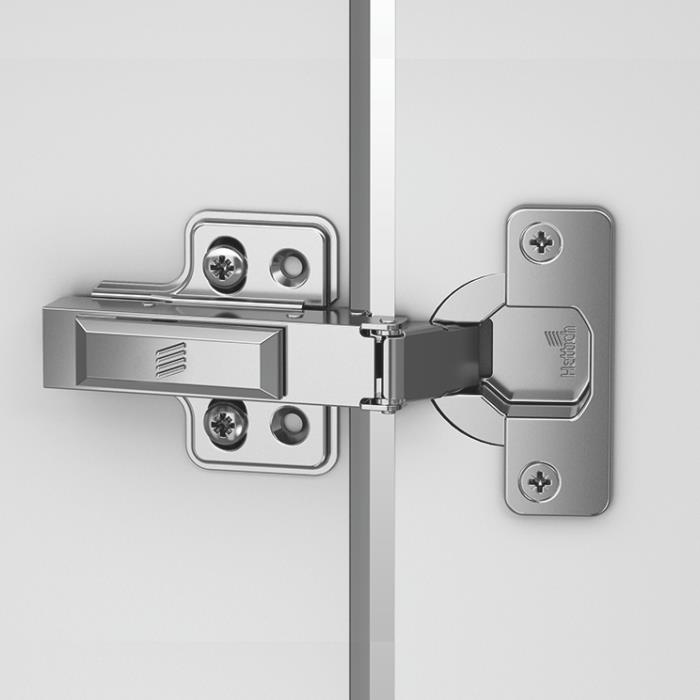

Hettich Veosys (9.5 Crank) with Mounting Plate (D 0 mm) & Cover Cap
Overview
The Hettich Veosys is a stainless steel concealed cabinet hinge with clip-on installation and an integrated Silent System for soft closing. The 9.5 crank version is designed for half overlay door applications with a 105° opening angle. It is built to resist temperature fluctuations and moisture, making it suitable for both indoor and demanding environments.
What It Does
The Veosys hinge connects a cabinet door to its frame while providing:
- Soft, silent closing via an integrated Silent System
- Corrosion resistance (Level 2, 120h neutral salt spray tested to DIN EN ISO 9227)
- Clip-on mounting for straightforward installation and removal
- Adjustable overlay (+2.5 mm / -2.5 mm) for fine-tuning door alignment
Who It Helps
This hinge suits cabinet makers, interior fit-out contractors, modular kitchen installers, and homeowners sourcing durable, quiet-closing hardware for furniture doors with a half overlay configuration.
Key Product Facts
| Attribute | Detail |
|---|---|
| Brand | Hettich |
| Product line | Veosys |
| Crank type | 9.5 Crank (Half Overlay) |
| SKU | 9315434 |
| Door application | Half Overlay |
| Door thickness range | 14 - 22 mm |
| Closing functionality | Soft Closing |
| Opening angle | 105° |
| Material / Finish | Stainless Steel |
| Cup diameter | 35 mm |
| Cup depth | 11.5 mm |
| Mounting option | Clip On |
| Overlay adjustment | +2.5 mm / -2.5 mm |
| Quality classification | EN 15570, Level 2 corrosion proof |
| Corrosion test | 120h NSS to DIN EN ISO 9227 |
| Warranty | 10 Years |
| Country of origin | India |
| Unit sold | Pair |
| Package contents | 2 Hinges, 2 Mounting Plates, 2 Cover Caps |
Available Crank Variants
The Veosys hinge series is offered in three crank options to match different door overlay setups:
| Variant | Door Application |
|---|---|
| 0 Crank | Full Overlay |
| 9.5 Crank | Half Overlay |
| 16 Crank | Inset |
Buyer Questions This Page Should Answer
What door overlay is the 9.5 crank hinge designed for?
Half overlay doors, where the door partially covers the cabinet frame edge.
What door thickness does it fit?
14 mm to 22 mm.
Does it include the mounting plate and cover cap?
Yes. Each pack includes 2 hinges, 2 mounting plates, and 2 cover caps.
Is it corrosion resistant?
Yes, it meets Level 2 corrosion protection and passes a 120-hour neutral salt spray test per DIN EN ISO 9227.
What is the opening angle?
105 degrees.
Does it close silently?
Yes, it has an integrated Silent System for soft, quiet closing.
What is the warranty?
10 years.
How is it installed?
Clip-on mounting, allowing tool-free attachment and removal from the mounting plate.
What if I need a different overlay type?
Choose the 0 Crank variant for full overlay doors or the 16 Crank variant for inset doors.
Proof or Trust Signals
- Quality classified under EN 15570
- Level 2 corrosion protection with 120-hour neutral salt spray test (DIN EN ISO 9227)
- 10-year warranty
- Stainless steel construction rated for temperature fluctuations and moisture exposure
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-09-25T18:46:51.139Z
- Product: Hettich Veosys with mounting plate (D 0 mm) & cover cap, Opening angle 105°
- Brand: Hettich
- Category: Furniture Hinges > Veosys > Other Categories
- SKU: 9315435_P
- Price: ₹874 (MRP ₹920)
- Availability: InStock
- Variants: Size: Full Overlay / 0 crank, Size: Half Overlay / 9.5 crank, Size: Inset / 16 crank
