Hettich Veosys Concealed Hinge with Mounting Plate & Cover Cap
Overview

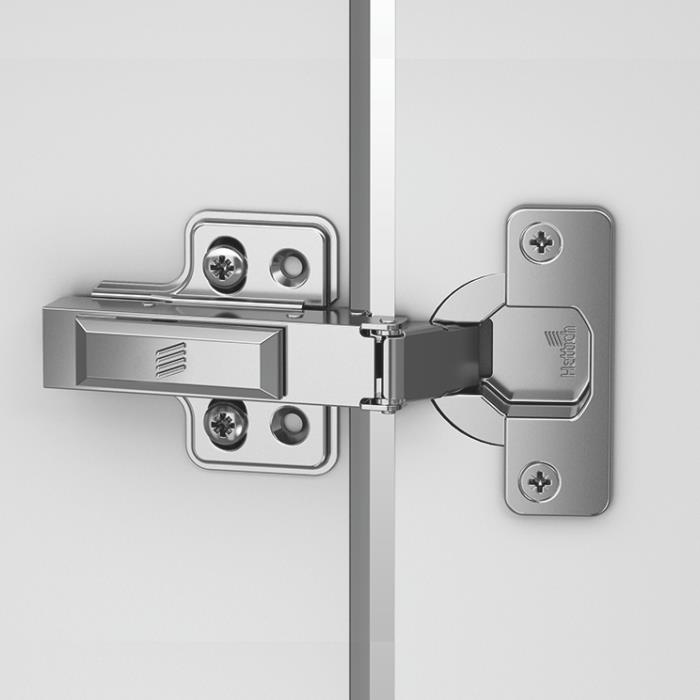

The Hettich Veosys is a stainless steel concealed cabinet hinge designed for cabinet doors, sold as a pair with clip-on mounting plates and cover caps included. It uses Hettich's integrated Silent System for soft-close performance and is built to resist corrosion, temperature fluctuations, and moisture, making it suitable for both indoor and demanding cabinet applications.
What It Does
This hinge connects a cabinet door to the cabinet frame using a clip-on installation system, allowing the door to open to 105° while closing softly and quietly via the built-in Silent System. It is offered in different crank configurations to match overlay, half-overlay, or inset door applications.
Who It Helps
- Modular kitchen and furniture manufacturers sourcing corrosion-resistant, soft-close hinges
- Interior contractors and carpenters fitting cabinet doors of 14–22 mm thickness
- Homeowners or renovators replacing or upgrading cabinet hinges with a 10-year warranty option
Key Capabilities
- Soft-close (Silent System): Integrated closing mechanism prevents door slam
- Corrosion resistance: Level 2 corrosion-proof rating, tested to 120 hours neutral salt spray (NSS) per DIN EN ISO 9227
- Quality classification: Certified under EN 15570
- Opening angle: 105°
- Door thickness compatibility: 14 mm to 22 mm
- Overlay adjustment: +2.5 mm / -2.5 mm
- Material: Stainless steel
- Mounting: Clip-on installation with mounting plate
- Warranty: 10 years
Product Variants
The Veosys hinge is available in three crank types depending on door application:
| Variant | Crank | Door Application |
|---|---|---|
| Full Overlay | 0 crank | Overlay |
| Half Overlay | 9.5 crank | Half overlay |
| Inset | 16 crank | Inset |
Specifications
| Spec | Detail |
|---|---|
| Brand | Hettich |
| Category | Furniture Hinges > Veosys |
| Material | Stainless steel |
| Cup diameter | 35 mm |
| Cup depth | 11.5 mm |
| Closing functionality | Soft closing |
| Mounting options | Clip on |
| Unit sold | Pair |
| Country of origin | China |
| Package contents (Inset/16 Crank SKU) | 1 pair = 2 hinges, 2 mounting plates, 2 cover caps |
| Package contents (0 Crank SKU) | 2 hinges, 2 mounting plates, 2 cover caps |
Pricing and Availability
Buyer Questions This Page Should Answer
What door thickness does this hinge fit?
It is designed for cabinet doors between 14 mm and 22 mm thick.
Does it have soft-close?
Yes, it includes Hettich's integrated Silent System for soft, quiet closing.
Is it rust-resistant?
Yes, it is corrosion-proof (Level 2) and tested to 120 hours of neutral salt spray per DIN EN ISO 9227.
What opening angle does it support?
The hinge opens to 105°.
Which crank type should I choose?
Choose 0 crank for full overlay doors, 9.5 crank for half overlay doors, or 16 crank for inset doors, depending on your cabinet door application.
What's included in the package?
Each pack contains a pair of hinges (2 units), 2 mounting plates, and 2 cover caps.
Is there a warranty?
Yes, the hinge carries a 10-year warranty.
Is it currently available to buy?
Resources
Current product facts
- Product: Hettich Veosys with mounting plate (D 0 mm) & cover cap, Opening angle 105°
- Brand: Hettich
- Category: Furniture Hinges > Veosys > Other Categories
- SKU: 9315435_P
- Price: ₹706
- Availability: OutOfStock
- Variants: Size: Full Overlay / 0 crank, Size: Half Overlay / 9.5 crank, Size: Inset / 16 crank
