Hettich VB Connectors VB 36/19 – Nickel Plated, for 19 mm Shelves
Overview

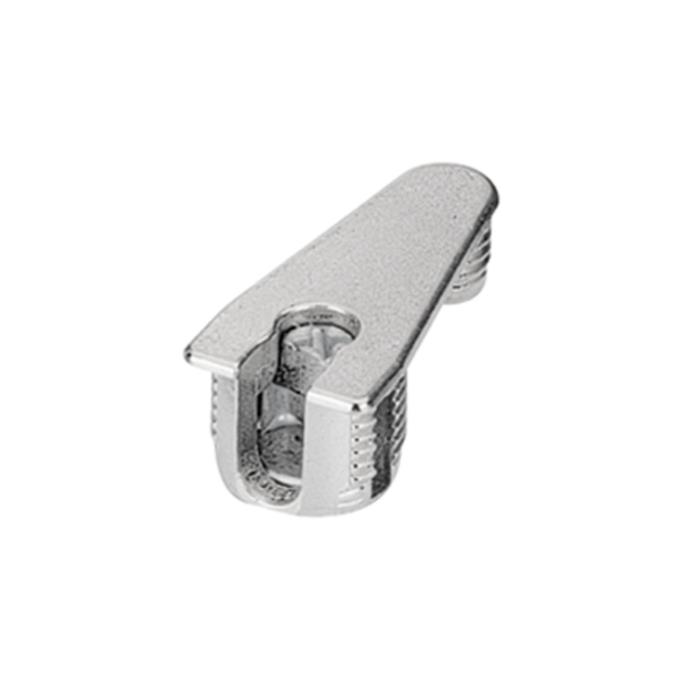

The Hettich VB 36/19 is a nickel-plated connecting fitting designed to join 19 mm thick shelves or panels securely. It is part of Hettich's Connecting Fittings range under the VB Connectors category, built for System 32 cabinet construction and shelf assembly work.
What It Does
The VB 36/19 connector is pressed into a double hole drilled 32 mm apart, creating a strong mechanical joint between two 19 mm panels. It uses a spherical eccentric mechanism to draw and lock panels together for a tight, lasting fit.
Who It Helps
- Furniture and cabinet makers assembling shelving units with 19 mm panel thickness
- Carpenters and fabricators working within the System 32 drilling standard
- Hardware buyers sourcing connecting fittings for shelf and panel joinery
Key Capabilities
- Joins 19 mm shelves/panels with a concealed, mechanical connector
- Insertion holes of 20 mm and 10 mm diameter
- Spherical eccentric design for secure, adjustable tightening
- Compatible with System 32 drilling layout
- Nickel-plated finish for corrosion resistance and durability
- Die-cast zinc / plastic construction
Product Specifications
| Attribute | Detail |
|---|---|
| Product | Hettich VB Connectors VB 36/19, 19 mm shelves, nickel plated |
| Brand | Hettich |
| Category | Other Categories > Connecting Fittings > VB Connectors |
| SKU | 65529 |
| Material | Die-cast Zinc / Plastic |
| Finish | Nickel Plated |
| Unit | Piece |
| Panel Thickness | 19 mm |
| Drilling Dimension | N/A |
| Warranty | 5 years |
| Country of Origin | Czech Republic |
Buyer Questions This Page Should Answer
What panel thickness does the VB 36/19 support?
It is designed for 19 mm thick shelves or panels.
What finish and material is this connector made from?
It has a nickel-plated finish and is constructed from die-cast zinc and plastic.
Do I need to order any other part with this connector?
Yes. The product listing notes that item 74688 must be ordered along with this connector — it is a compulsory companion part for the fitting to function correctly.
What drilling setup does it require?
The fitting is pressed into a double hole drilled 32 mm apart, with insertion holes of 20 mm and 10 mm diameter, consistent with the System 32 drilling standard.
What warranty does it carry?
Hettich provides a 5-year warranty on this connector.
Where is it manufactured?
Country of origin is the Czech Republic.
Proof or Trust Signals
- Manufactured by Hettich, a recognized furniture fittings brand
- Backed by a 5-year manufacturer warranty
- Listed with a defined SKU (65529) and confirmed in-stock availability
Resources or Next Steps
Note: This connector requires the companion part (item 74688) to be ordered together for proper installation.
Current product facts
- Product: Hettich VB Connectors-VB 36 / 19 for 19 mm shelves, nickel plated
- Brand: Hettich
- Category: Other Categories > Connecting Fittings > VB Connectors
- SKU: 65529
- Price: ₹76
- Availability: InStock
