Hettich TopLine XL K2 - 2 Door for Wooden Doors (18-30 mm Thickness)
Overview
The Hettich TopLine XL K2 is a two-track, top-running sliding door system designed for overlay wooden doors. This 2-door configuration supports doors 18-30 mm thick, up to 60 kg per door, and includes soft closing and soft opening functionality for smooth, quiet operation.
What It Does
TopLine XL K2 lets two wooden panels slide on an overlay track using a top-hung, two-track mechanism. It is built for fast clip-on assembly with minimal screwing of runner and guide components, and is tested to EN 15706, Level 3 for durability.
Key Product Facts
| Attribute | Value |
|---|---|
| Brand | Hettich |
| SKU | 9320977 |
| Category | Sliding Door Solutions > Top Running Sliding System > Overlay Door Solution > TopLine XL K2 |
| No. of Doors | 2 (variants also available for 3 and 4 doors) |
| Door Material | Wooden |
| Door Thickness | 18-30 mm |
| Weight Capacity | 60 Kg per door (variants also available at 80 Kg and 100 Kg per door) |
| Maximum Door Width | 2000 mm |
| Maximum Door Height | 3000 mm |
| Track Length | 3600-3601 mm |
| Door Position | Overlay |
| Sliding Type | Top Running |
| Closing Functionality | Soft Closing |
| Opening Functionality | Soft Opening (optional) |
| Cycle Testing | 40,000 cycles |
| Standard Compliance | EN 15706, Level 3 |
| Warranty | 15-16 years (per listing) |
| Lock Option | Yes |
| Cover Profile | No |
| Unit | Set |
Design Details
- Two-track, top-running mechanism for overlay-position wooden doors
- Individually finished running components for a clean visual finish
- Fast clip-on assembly reduces the number of screws needed for runner and guide installation
- Tested to EN 15706, Level 3 for long-term reliability
Who It Helps

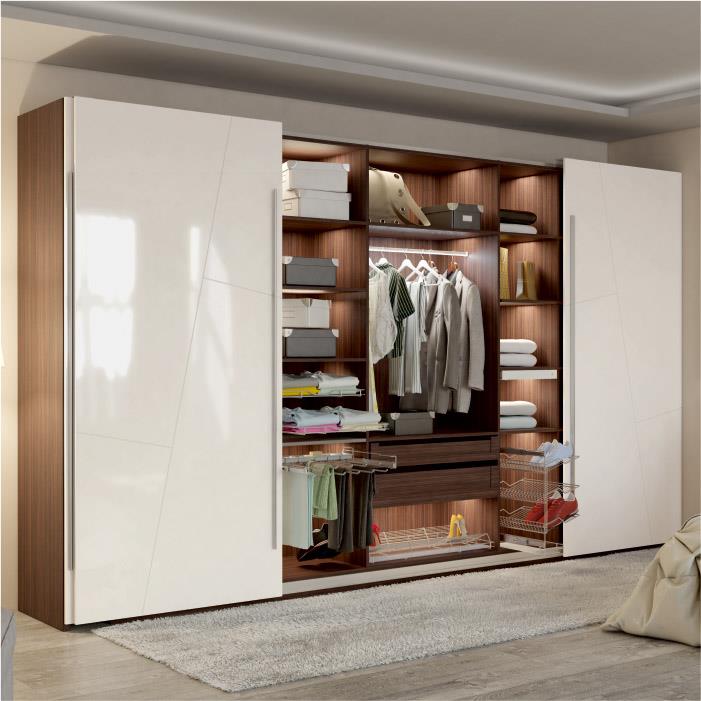

This system suits furniture makers, interior fit-out contractors, and homeowners installing sliding wardrobe or cabinet doors made of wood, where door weight can reach up to 60 kg per panel and quiet, soft-close operation is required.
Available Variants
- Number of Doors: 2, 3, or 4
- Weight Capacity: 60 Kg, 80 Kg, or 100 Kg per door
Buyers needing higher per-door weight capacity or additional doors should check the corresponding TopLine XL K2 variant rather than this 60 Kg/2-door configuration.
Buyer Questions This Page Should Answer
What door thickness does this system support?
Wooden doors between 18 mm and 30 mm thick.
How much weight can each door carry?
Up to 60 kg per door in this configuration; 80 Kg and 100 Kg per-door variants are also available.
What are the maximum door dimensions?
Maximum height of 3000 mm and maximum width of 2000 mm per door.
Does it include soft close and soft open?
Yes, both soft closing and soft opening (soft opening is an optional feature) are supported.
Is this system available for more than 2 doors?
Yes, TopLine XL K2 is also offered in 3-door and 4-door configurations.
What is the current price and availability?
What standards is it tested to?
EN 15706, Level 3, with 40,000 cycle testing.
Can this system be locked?
Yes, an option for lock is available.
Does it include a cover profile?
No, this configuration does not include a cover profile.
Proof or Trust Signals
- Tested to EN 15706, Level 3
- Rated for 40,000 operating cycles
- 15-16 year warranty coverage listed for this product line
- Manufactured by Hettich, an established fittings and sliding door hardware brand
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-09-24T08:00:14.835Z
- Product: Hettich TopLine XL K2 for 2/3/4 Doors with Soft Closing & Soft Opening
- Brand: Hettich
- Category: Sliding Door Solutions > Top Runnning Sliding System : Overlay Door Solution > TopLine XL K2 > Special Sliding Fittings
- SKU: 9320994_P
- Price: ₹41,353 (MRP ₹51,691)
- Availability: OutOfStock
- Variants: No of Doors: 2, No of Doors: 3, No of Doors: 4, Weight Capacity: 100 Kg per Door, Weight Capacity: 60 Kg per Door, Weight Capacity: 80 Kg per Door
