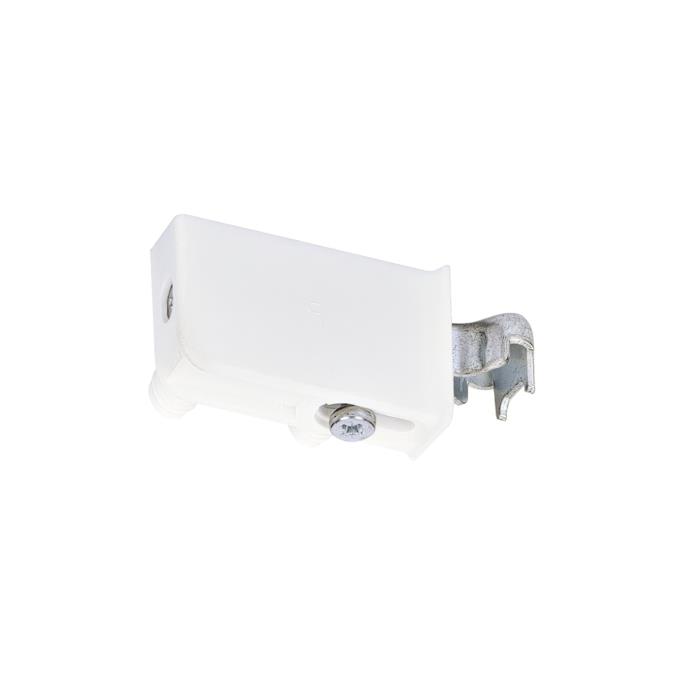

Hettich Suspension Brackets-SAH 130 Steel/PVC White Right

Overview

The Hettich Suspension Brackets-SAH 130 is a cabinet-mounting hardware component from Hettich, designed for both press-in installation and rail/hook suspension of cabinet bodies. It belongs to Hettich's Connecting Fittings range, under the Suspension Brackets category.

What It Does

This bracket secures cabinet bodies to walls using either a hook-and-rail suspension system or a press-in fitting method. A built-in guard prevents the cabinet from slipping sideways when hung on a hook, improving installation safety and stability.

Who It Helps

• Kitchen and furniture installers mounting wall cabinets
• Modular furniture manufacturers specifying connecting hardware
• Retailers and distributors sourcing Hettich fittings for cabinet projects
• Homeowners or contractors replacing or upgrading existing suspension brackets

Key Capabilities and Specifications

Technical Details

• Installation methods: press-in fitting, or rail and hook suspension
• Safety guard prevents sideways slipping when suspended from a hook
• Load capacity: 35 kg each, in accordance with EN 15939 (test rack A); one pair of SAH brackets required per cabinet body — elements without their own suspension (such as end shelves) are not permitted
• 3-dimensional alignment tolerance: height ± 7 mm; max depth 15 mm; lateral (hook suspension) ± 3 mm; lateral (rail suspension) ± 7 mm
• Rear panel recess required: at least 16 mm from front edge of rear panel
• Lift-off height: 7.5 mm
• Compatible with A type, B type, and L type suspension rails

Buyer Questions This Page Should Answer

What is the SAH 130 bracket used for?

It is used to hang or press-fit cabinet bodies onto a wall using either a hook-and-rail system or a direct press-in mount.

How much weight can it hold?

Each bracket supports a load capacity of 35 kg, tested per EN 15939 in test rack A. A cabinet body requires one pair of SAH brackets; components without their own suspension point (like end shelves) cannot use this bracket alone.

What suspension rails is it compatible with?

It works with A type, B type, and L type suspension rails.

What material is the bracket made of?

Galvanised steel combined with white plastic (PVC) components.

Is there a warranty?

Yes, the SAH 130 comes with a 5-year warranty.

Where is it manufactured?

Germany.

What installation clearance does it need?

A rear panel recess of at least 16 mm from the front edge of the rear panel is required, with a lift-off height of 7.5 mm.

What is the price?

Proof or Trust Signals

• Load rating tested and certified in accordance with EN 15939 (European standard for furniture connecting fittings)
• Backed by a 5-year manufacturer warranty
• Manufactured in Germany under the Hettich brand, a recognized furniture fittings manufacturer
