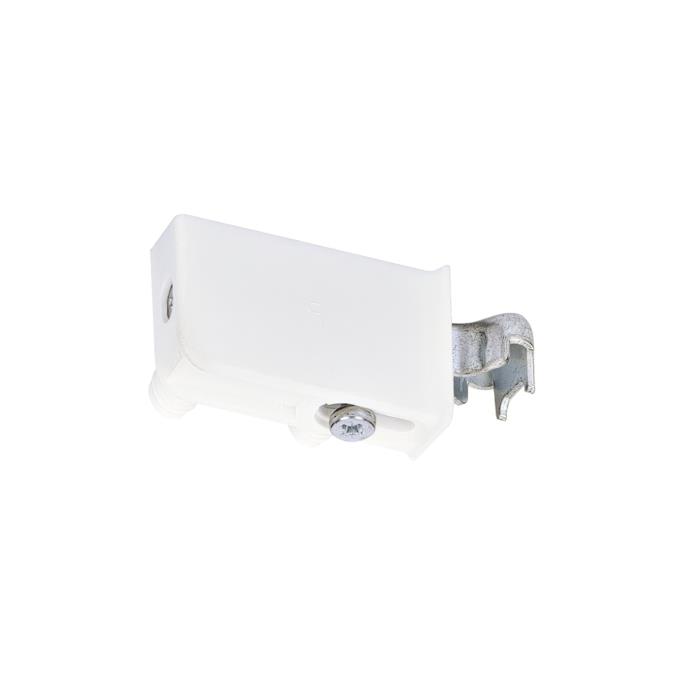

Hettich Suspension Brackets-SAH 130 Steel/PVC White Left

Overview

The Hettich Suspension Brackets-SAH 130 (Steel/PVC, White, Left) is a cabinet connecting fitting from Hettich, designed for both press-in installation and versatile rail/hook suspension mounting. It is built from galvanized steel with a white plastic finish, combining durability with a clean look suited to home or office cabinet installations.

What It Does

The SAH 130 bracket secures cabinet bodies to walls using either a hook-and-rail system or a direct press-in fit. It includes a built-in safety guard that prevents the cabinet from slipping sideways when suspended from a hook, giving installers a reliable anchor point for wall-mounted cabinetry.

Who It Helps

• Cabinet makers and joinery workshops installing wall-hung cabinets
• Interior fit-out contractors working on kitchens, offices, or storage units
• Hardware retailers and distributors sourcing Hettich connecting fittings
• Homeowners or DIY installers replacing or upgrading suspension hardware

Key Capabilities

• Dual mounting method: suitable for pressing in, or for rail-and-hook suspension
• Anti-slip guard: prevents sideways slipping when the cabinet is suspended from a hook
• Load capacity: 35 kg each, tested in accordance with EN 15939 in test rack A (one pair of SAH brackets per cabinet body; elements without their own suspension, such as end shelves, are not permitted)
• 3-dimensional alignment tolerance:
• Height: ± 7 mm
• Max depth: 15 mm
• Lateral (hook suspension): ± 3 mm
• Lateral (rail suspension): ± 7 mm
• Rear panel recess: at least 16 mm to the front edge of the rear panel
• Lift-off height: 7.5 mm
• Rail compatibility: works with A type, B type, and L type suspension rails
• Material and finish: galvanized steel body with white plastic finish

Buyer Questions This Page Should Answer

What is the SKU and price?

What load can this bracket support?

Each SAH 130 bracket supports 35 kg, tested per EN 15939 in test rack A. Use one pair of brackets per cabinet body; components without independent suspension support (like end shelves) should not rely on this bracket alone.

Can it be used with any suspension rail?

Yes. It is compatible with A type, B type, and L type suspension rails.

How much alignment adjustment does it allow?

Height adjustment of ± 7 mm, maximum depth of 15 mm, and lateral adjustment of ± 3 mm (hook suspension) or ± 7 mm (rail suspension).

What rear panel clearance is required?

A rear panel recess of at least 16 mm measured to the front edge of the rear panel is required for correct fitting.

Is this bracket left- or right-specific?

This listing is the Left version of the SAH 130 bracket in the Steel/PVC White finish.

What material is it made from?

Galvanized steel construction with a white plastic (PVC) finish.

Comparison Context

This bracket sits within Hettich's Connecting Fittings > Suspension Brackets category, positioned as a mid-load (35 kg) cabinet suspension solution combining press-in and rail/hook mounting flexibility in a single fitting, with a built-in anti-slip safety guard not always found on simpler bracket designs.

Proof or Trust Signals

• Load capacity certified to EN 15939 testing standard (test rack A)
• Manufactured by Hettich, an established fittings brand
• Listed as InStock with a defined SKU for order tracking

Resources or Next Steps

• View or buy this product
• Browse Hettich Fittings online
