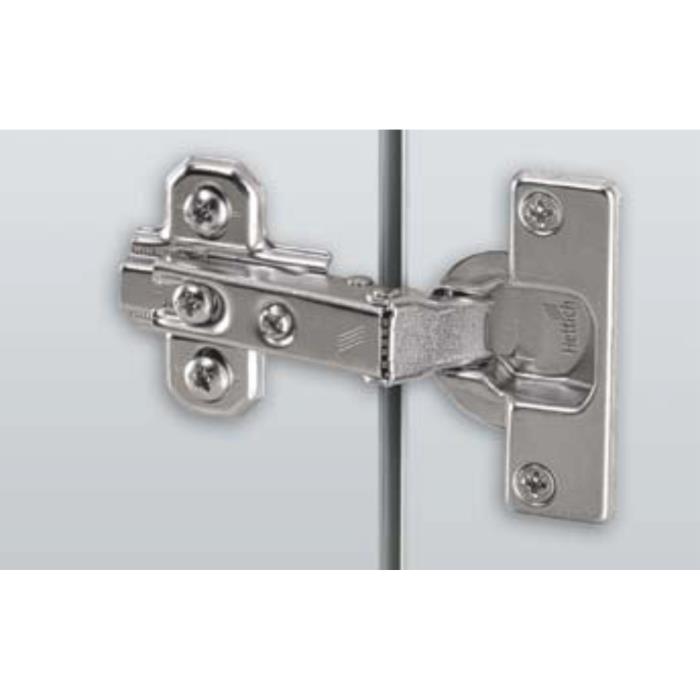

Hettich Slide-On 2333 Hinge with Mounting Plate
Overview
The Hettich Slide-On 2333 Hinge is a concealed cabinet door hinge (T42 type) designed for doors 14-25 mm thick, with a 95° opening angle. It uses a double spring action for reliable, scratch-free door operation and is sold as a pair with matching mounting plates. The hinge is made in India from nickel-plated steel and carries a 10-year warranty.
What It Does
- Mounts cabinet doors to carcass sides using a screw-on concealed hinge and mounting plate system
- Opens to 95 degrees for standard cabinet access
- Uses double spring action to hold the door closed and prevent slamming or scratching
- Supports fine overlay adjustment of +0.5 mm / -2.5 mm for precise door alignment
Who It Helps
- Carpenters, modular kitchen fabricators, and furniture makers installing or replacing cabinet door hinges
- Homeowners and contractors sourcing door hardware for wardrobes, kitchen cabinets, and storage units
- Buyers who need a specific crank size (full overlay, half overlay, or inset) to match their door and carcass configuration
Key Capabilities
| Specification | Detail |
|---|---|
| Brand | Hettich |
| Door application | Inset or Overlay, depending on variant |
| Door thickness range | 14 - 25 mm |
| Opening angle | 95 degrees |
| Closing functionality | Normal closing |
| Material | Steel, nickel-plated |
| Cup diameter | 35 mm |
| Cup depth | 11.1 mm |
| Mounting option | Screw on |
| Overlay adjustment | +0.5 mm / -2.5 mm |
| Country of origin | India |
| Warranty | 10 years |
| Unit sold | Pair (2 hinges and 2 mounting plates per pack) |
Crank Size Variants
The hinge is available in three crank sizes to match different door-to-carcass positions:
- Full Overlay / 0 crank - door fully overlays the cabinet side
- Half Overlay / 9.5 crank - door partially overlays the cabinet side, typically used when two doors share a center panel
- Inset / 16 crank - door sits flush inside the cabinet opening
Selecting the correct crank size is required for proper door alignment; it depends on the cabinet's overlay construction, not personal preference.
Pricing and Availability
| Item | Value |
|---|---|
| SKU (T42 inset variant) | 9242869_P |
| SKU (Full Overlay / 0 crank variant) | 9242867 |
Buyer Questions This Page Should Answer
What door thickness does this hinge support?
It fits doors from 14 mm to 25 mm thick.
What opening angle does the hinge provide?
95 degrees.
Does it come with a mounting plate?
Yes. Each pair pack includes 2 hinges and 2 mounting plates, screw-on type.
What material is the hinge made from?
Steel with a nickel-plated finish.
How do I choose between full overlay, half overlay, and inset?
Match the crank size to your door's position relative to the cabinet side: 0 crank for full overlay, 9.5 crank for half overlay, and 16 crank for inset doors.
Is this hinge adjustable after installation?
Yes, it supports overlay adjustment of +0.5 mm to -2.5 mm for fine-tuning door alignment.
What warranty applies?
A 10-year warranty is included.
Where is it manufactured?
India.
Resources
Current product facts
Last checked by Readable: 2026-10-08T18:46:13.394Z
- Product: Hettich Slide On 2333 Hinge - T42 for 14-25 mm thick doors, Opening angle 95°
- Brand: Hettich
- Category: Furniture Hinges > Other Categories > Slide-on Hinge > Slide On 2333 Hinge
- SKU: 9242869_P
- Price: ₹124 (MRP ₹146)
- Availability: InStock
- Variants: Size: Full Overlay / 0 crank, Size: Half Overlay / 9.5 crank, Size: Inset / 16 crank
