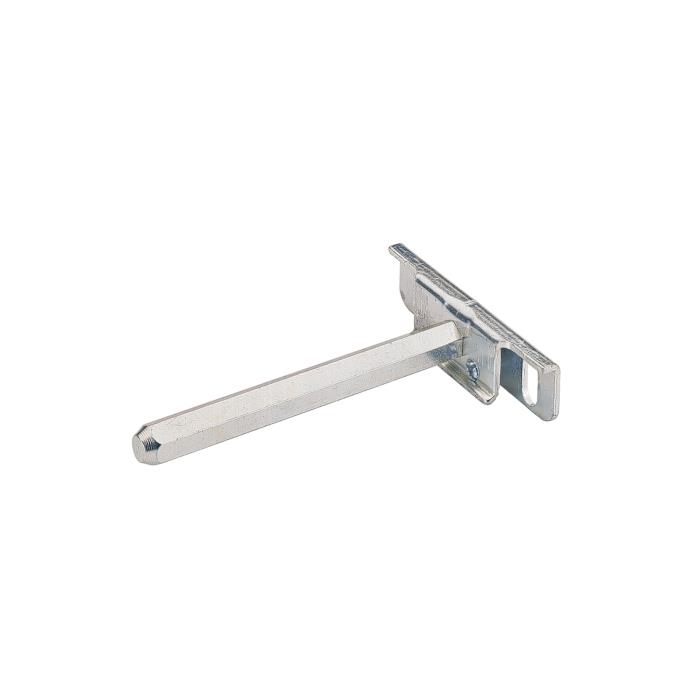

Hettich Titan Shelf Support (Min. Shelf Thickness 24 mm)
Overview
The Hettich Titan Shelf Support is a concealed-installation shelf support fitting designed for thicker wooden shelves with a minimum thickness of 24 mm. It is made from galvanised steel and offers adjustable shelf tilt for stable, level shelving in cabinets, wardrobes, and storage units.
What It Does
The Titan Shelf Support holds wooden shelves in place using a concealed bolt fixed behind the shelf, keeping the visible edge clean and free of hardware. It supports shelf tilt adjustment so shelves can be leveled after installation.
Who It Helps
- Furniture makers and carpenters installing thicker wooden shelves (24 mm+)
- Interior fit-out contractors needing concealed, load-rated shelf hardware
- Homeowners and renovators replacing or upgrading shelf supports in cabinets and wardrobes
Key Capabilities
- Concealed installation behind the shelf for a clean, modern look
- Bolt size: 10 mm A/F
- Adjustable shelf tilt after installation
- Compatible with wooden shelves
- Minimum shelf thickness: 24 mm
Load Capacity
Maximum load capacity is based on shelf size and includes the weight of the shelf itself. Figures below apply per 2 shelf supports.
| Shelf Size (mm) | Max. Load Capacity |
|---|---|
| 1000 x 300 | 50 kg/m² |
| 1000 x 250 | 100 kg/m² |
| 1000 x 200 | 160 kg/m² |
Product Specifications
| Attribute | Detail |
|---|---|
| Brand | Hettich |
| Category | Other Categories > Connecting Fittings > Shelf Supports |
| SKU | 1069728 |
| Material | Galvanised steel |
| Unit | Piece |
| Compatible With | Wooden shelf |
| Minimum Shelf Thickness | 24 mm |
| Bolt Size | 10 mm A/F |
| Country of Origin | China |
| Warranty | 5 years |
Buyer Questions This Page Should Answer
What is the minimum shelf thickness required for this support?
The Hettich Titan Shelf Support requires a minimum shelf thickness of 24 mm.
How much weight can it hold?
Load capacity depends on shelf size: up to 50 kg/m² for 1000 x 300 mm shelves, 100 kg/m² for 1000 x 250 mm shelves, and 160 kg/m² for 1000 x 200 mm shelves, measured per pair of supports and including the shelf's own weight.
Is the installation visible?
No. The support installs concealed behind the shelf, so no hardware is visible from the front.
Can the shelf tilt be adjusted?
Yes, the Titan Shelf Support allows shelf tilt adjustment after installation.
What material is it made from?
Galvanised steel.
What is the warranty?
Hettich offers a 5-year warranty on this product.
Proof or Trust Signals
- Sold under the Hettich brand, a recognised furniture fittings manufacturer
- Backed by a 5-year warranty
- Listed with SKU 1069728 for order tracking
Resources or Next Steps
Current product facts
- Product: Hettich Shelf support -Titan min. shelf thickness 24 mm
- Brand: Hettich
- Category: Other Categories > Connecting Fittings > Shelf Supports
- SKU: 1069728
- Price: ₹124
- Availability: InStock
