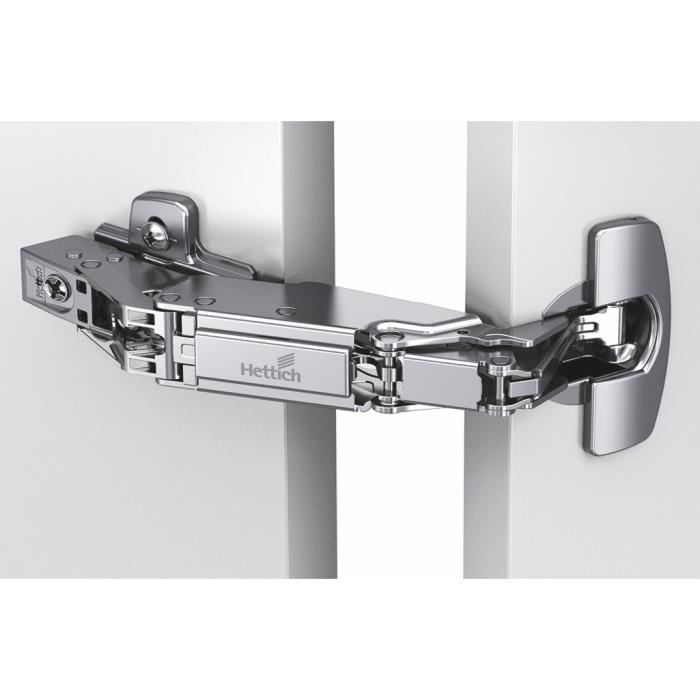

Hettich Sensys 8657i Hinge - TH52 for 15-32 mm Thick Doors, 165° Opening Angle with Mounting Plate
Overview
The Hettich Sensys 8657i TH52 is an overlay cabinet door hinge designed for gentle, silent closing with a wide 120°-165° opening range. It is built in nickel-plated steel, made in Germany, and sold with a screw-on mounting plate. It is part of Hettich's Sensys 8657i hinge line, sold through Hettich India Online.
What It Does
- Provides integrated soft-close action for overlay cabinet doors, avoiding slamming and noise.
- Opens to a wide angle of up to 165°, giving easier access to cabinet interiors than standard hinges.
- Uses a clip-on mounting system with a screw-on mounting plate for installation onto the cabinet carcass.
- Allows overlay adjustment of +2 mm / -2 mm for fine-tuning door alignment after installation.
Who It Helps
- Furniture makers, modular kitchen fabricators, and cabinet manufacturers who need soft-close hinges for overlay doors.
- Interior contractors and carpenters sourcing German-made hardware for wardrobe, kitchen, or cabinet doors.
- Homeowners or renovators replacing or upgrading existing cabinet hinges with a wide-angle, soft-close hinge.
Key Capabilities and Specifications
| Specification | Detail |
|---|---|
| Door Application | Overlay |
| Door Thickness Supported | 15 - 32 mm |
| Closing Functionality | Soft Closing (integrated) |
| Opening Angle | 165° (wide angle range 120°-165°) |
| Material / Finish | Steel, Nickel-Plated |
| Cup Diameter | 35 mm |
| Cup Depth | 12.8 mm |
| Size | Full Overlay / 0 crank |
| Mounting Options | Clip On, Screw-On Mounting Plate |
| Overlay Adjustment | + 2 mm / - 2 mm |
| Country of Origin | Germany |
| Warranty | 20 Years |
| Package Content | 2 Hinges + 2 Mounting Plates (sold as a pair) |
| SKU | 9243040 |
| Price (INR) | 1557 (MRP 1730) |
Buyer Questions This Page Should Answer
What door thickness does this hinge fit?
It fits overlay cabinet doors between 15 mm and 32 mm thick.
Does it have soft-close?
Yes, soft-close functionality is integrated into the hinge body, so doors close gently and silently without a separate soft-close damper.
How wide does it open?
The hinge supports an opening angle range of 120° to 165°, giving wide access to cabinet interiors.
What is included in the package?
Each package contains 2 hinges and 2 mounting plates (sold as a pair), with a screw-on mounting plate design.
What material and finish does it use?
Nickel-plated steel construction.
Where is it manufactured?
Germany.
What is the warranty?
20 years.
Is overlay adjustment possible after installation?
Yes, +2 mm / -2 mm overlay adjustment is available for fine-tuning door position.
Is this hinge currently available to purchase?
Proof or Trust Signals
- Backed by a 20-year warranty.
- Manufactured in Germany under the Hettich brand, a long-established hardware manufacturer.
- Precise, documented specifications (cup diameter, cup depth, overlay adjustment tolerance) typical of professional cabinet hardware sourcing.
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-09-24T08:00:07.585Z
- Product: Hettich Sensys 8657i Hinge - TH52 for 15-32 mm thick doors; Opening angle 165° with mounting plate
- Brand: Hettich
- Category: Furniture Hinges > Sensys 8657i Hinge > Deals > Other Categories
- SKU: 9243040
- Price: ₹1,557 (MRP ₹1,730)
- Availability: InStock
