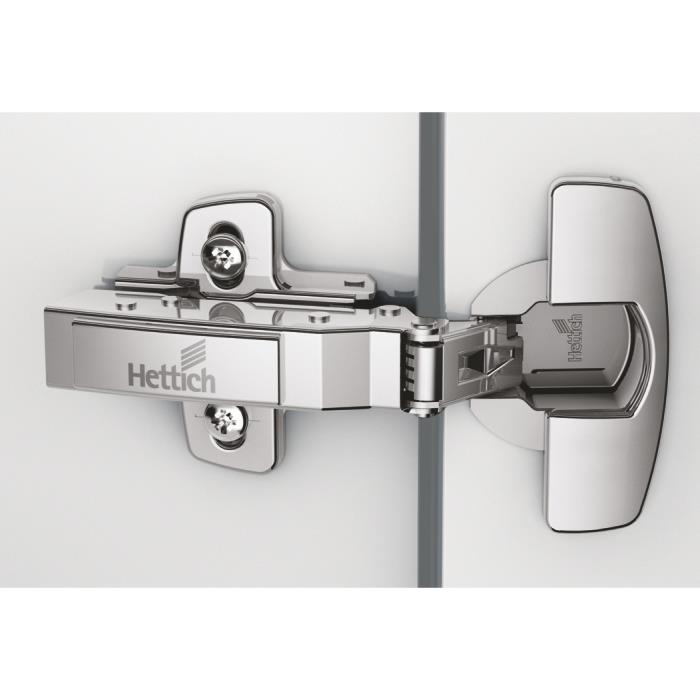

Hettich Sensys 8645i Hinge For Door Thickness 15-24 mm With Mounting Plate, Opening Angle 110°
Overview
The Hettich Sensys 8645i is a soft-closing furniture hinge designed for inset doors with a thickness range of 15-24 mm. It comes as a pair with matching mounting plates and features a 110° opening angle, nickel-plated steel construction, and clip-on mounting for easy installation and removal.
What It Does
This hinge integrates Hettich's Sensys soft-close mechanism directly into the hinge body, so no separate damper is required. It is built for inset door applications and supports doors up to 24 mm thick, with adjustable overlay (+2 mm / -2 mm) to fine-tune door alignment after installation.
Who It Helps
- Furniture manufacturers and modular kitchen/wardrobe fabricators sourcing inset-door hinges
- Carpenters and interior contractors needing soft-close hardware for thick doors
- Homeowners or renovators replacing or upgrading cabinet hinges
Key Capabilities
| Attribute | Detail |
|---|---|
| Brand | Hettich |
| Product line | Sensys 8645i |
| SKU | 9242924_P |
| Door application | Inset |
| Door thickness range | 15-24 mm |
| Closing functionality | Soft Closing (integrated) |
| Material | Steel, Nickel-Plated |
| Opening angle | 110° |
| Cup diameter | 35 mm |
| Cup depth | 12.8 mm |
| Mounting options | Clip On |
| Overlay adjustment | +2 mm / -2 mm |
| Country of origin | India |
| Warranty | 20 Years |
| Unit | Pair |
| Package contents | 1 Pair = 2 Hinges + 2 Mounting Plates |
Variants
This hinge is available in three crank configurations depending on door overlay:
- Full Overlay / 0 crank
- Half Overlay / 9.5 crank
- Inset / 16 crank
Buyer Questions This Page Should Answer
What door thickness does this hinge support?
It is rated for doors between 15 mm and 24 mm thick.
Does it include a soft-close mechanism?
Yes, the soft-close function is integrated into the hinge itself, so no separate soft-close damper needs to be purchased or fitted.
What is included in the package?
One pair, consisting of 2 hinges and 2 mounting plates.
What material is the hinge made from?
Nickel-plated steel.
How do I choose the right variant?
Select based on your door overlay type: Full Overlay (0 crank), Half Overlay (9.5 crank), or Inset (16 crank).
What warranty does it carry?
20 years.
How is it mounted?
Clip-on mounting for tool-free attachment and removal from the mounting plate.
Proof or Trust Signals
- Manufactured by Hettich, an established furniture fittings brand
- 20-year warranty on the hinge
- Made in India
- Precise specifications (cup diameter, cup depth, overlay adjustment) published for fabricator-level accuracy
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-09-24T07:59:46.187Z
- Product: Hettich Sensys 8645i Hinge, For Door Thickness 15 -24 mm With Mounting Plate, Opening angle 110°
- Brand: Hettich
- Category: Furniture Hinges > Sensys 8645i Hinge > Deals > Other Categories
- SKU: 9242924_P
- Price: ₹749.7 (MRP ₹882)
- Availability: InStock
- Variants: Size: Full Overlay / 0 crank, Size: Half Overlay / 9.5 crank, Size: Inset / 16 crank
