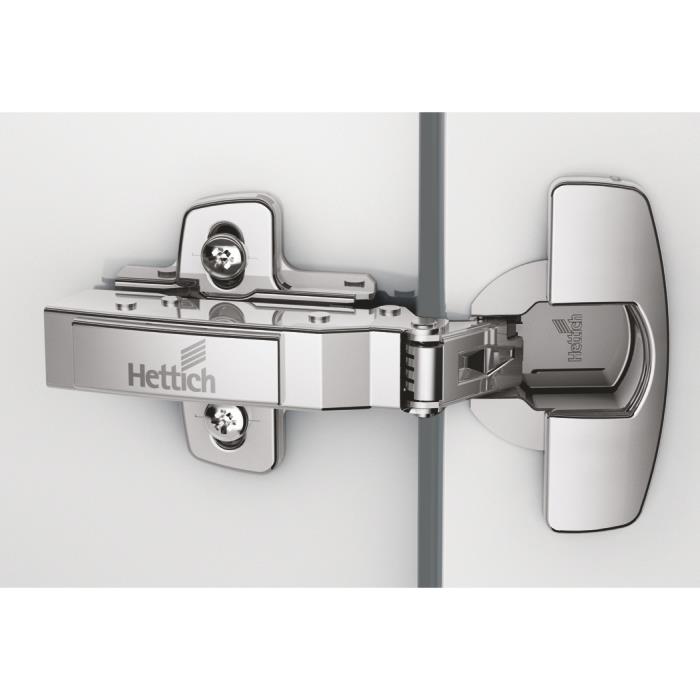

Hettich Sensys 8645i Thick Door Hinge with Mounting Plate

Overview

The Hettich Sensys 8645i is a soft-close furniture hinge built for thick cabinet doors, supporting door thickness from 15 mm to 24 mm. It ships as a pair with mounting plates and is available in Inset and Overlay door applications. The hinge is made of nickel-plated steel and opens to 110°.

What It Does

The Sensys 8645i integrates soft-close technology directly into the hinge body, so cabinet doors close gently and silently without needing a separate soft-close damper. It is designed for kitchen and furniture cabinets where doors are thicker than standard (15-24 mm), using a screw-on mounting plate for installation.

Who It Helps

• Modular kitchen and furniture manufacturers sourcing hinges for thick-door cabinet designs
• Interior contractors and carpenters fitting inset or overlay cabinet doors
• Homeowners replacing or upgrading cabinet hinges for smoother, quieter door operation

Key Capabilities

Product Variants

The Sensys 8645i is available in configurations for different door overlay types:

• Full Overlay / 0 crank — for overlay cabinet doors (SKU 9242922)
• Half Overlay / 9.5 crank — for half-overlay door setups
• Inset / 16 crank — for inset cabinet doors (SKU 9242924_P)

Pricing and Availability

Pricing is per pair, which includes 2 hinges and 2 mounting plates (the Overlay/0-crank SKU also includes 2 cover caps).

Buyer Questions This Page Should Answer

What door thickness does the Sensys 8645i hinge support?

It is designed for cabinet doors between 15 mm and 24 mm thick.

Does it have soft-close built in, or do I need a separate damper?

Soft-close is integrated directly into the hinge — no separate soft-close unit is needed.

What door types does it fit — inset or overlay?

Both. It is available in Inset (16 crank), Full Overlay (0 crank), and Half Overlay (9.5 crank) variants to match your door and cabinet configuration.

What material and finish does the hinge have?

Steel construction with a nickel-plated finish.

What's included in the package?

A pair (2 hinges) with 2 mounting plates; the overlay/0-crank version also includes 2 cover caps.

What is the opening angle?

110°.

Is there a warranty?

Yes, a 20-year warranty is listed for this hinge.

Where is it manufactured?

India.
