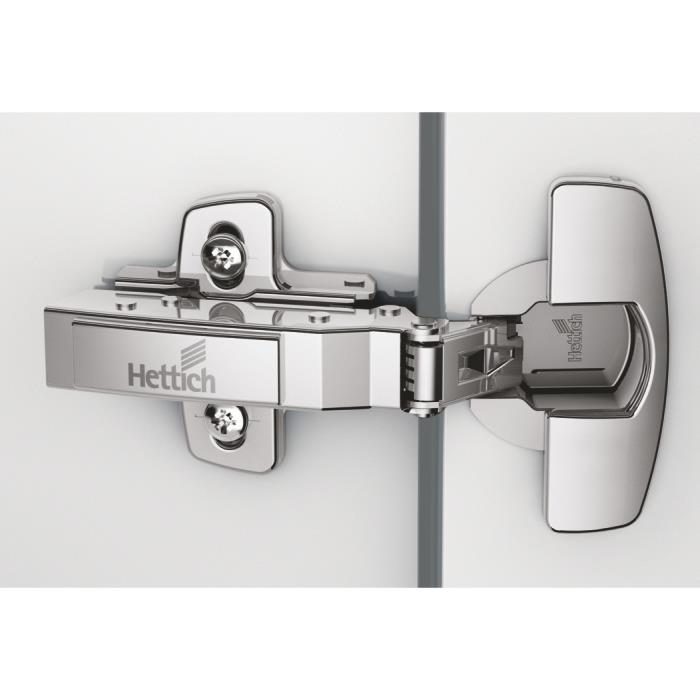

Hettich Sensys 8631i, 16K Thick Door Hinge For Door Thickness 15-32 mm With Mounting Plate

Overview

The Hettich Sensys 8631i is a 16K thick door hinge designed for inset cabinet doors with a door thickness of 15 to 32 mm. It features an integrated soft-close mechanism, a steel nickel-plated finish for corrosion resistance, and a 95° opening angle. The hinge is sold with a screw-on mounting plate and is backed by a 20-year warranty.

What It Does

This hinge provides soft-closing, adjustable mounting for overlay and inset cabinet doors. The clip-on mounting system allows the door to be removed and reattached easily, while the overlay adjustment range (+2 mm / -2 mm) allows fine alignment during installation.

Who It Helps

Key Capabilities / Specifications

SpecificationDetail
BrandHettich
Product LineSensys 8631i
Door ApplicationInset
Door Thickness Range15 - 32 mm
Closing FunctionalitySoft Closing (integrated)
Opening Angle95°
Material / FinishSteel, Nickel-Plated
Mounting OptionsClip On
Cup Diameter35 mm
Cup Depth12.8 mm
Overlay Adjustment+2 mm / -2 mm
Country of OriginIndia
Warranty20 Years
UnitPair

Product Variants & Pricing

Buyer Questions This Page Should Answer

What door thickness does this hinge support?

It is rated for door thickness from 15 mm to 32 mm, making it suitable for most standard and thick cabinet doors.

Does it have a soft-close feature?

Yes, the Sensys 8631i has an integrated soft-close mechanism for the inset door application, eliminating the need for a separate soft-close add-on.

What opening angle does the hinge allow?

The hinge opens to 95°, providing adequate clearance for most cabinet and door configurations.

What is included in the package?

The base SKU (9242906_P) includes 1 pair (2 hinges + 2 mounting plates). The alternate SKU (9242906) includes 2 hinges, 2 mounting plates, and 2 cover caps.

What material is the hinge made from?

Steel body with nickel plating, chosen for durability and corrosion resistance.

Is a mounting plate included?

Yes, both listed SKUs include a screw-on mounting plate.

What is the warranty period?

Hettich backs this hinge with a 20-year warranty.

Where is it manufactured?

India.

What variants are available?

Three crank/overlay configurations are listed under the base SKU: Full Overlay (0 crank), Half Overlay (9.5 crank), and Inset (16 crank).

Comparison Context

Two SKUs for this hinge model are listed with different pricing and package contents:

Buyers needing cover caps or the complete inset-specific set should choose SKU 9242906; those seeking the base pair with variant flexibility may choose SKU 9242906_P.

Proof or Trust Signals

Resources / Next Steps
