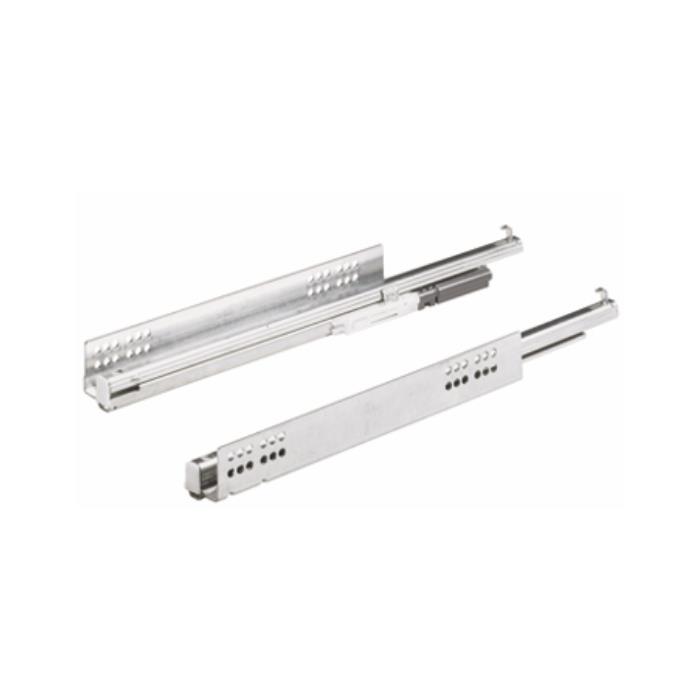

Hettich Quadro V6 Full Extension, 550 mm – Push to Open with Catch
Overview
The Hettich Quadro V6 is a concealed undermount drawer channel designed for full-extension drawer movement with push-to-open operation and a built-in Silent System for quiet, gentle closing. This listing covers the 550 mm size with catch, sold by Hettich Fittings through Hettich India Online.
What It Does
- Opens the drawer with a light push (no handle or external mechanism required) via push-to-open catches
- Closes the drawer quietly and gently using the integrated Silent System
- Supports full extension of the drawer for complete access to cabinet contents
- Allows slide-on installation with catches and tool-less height adjustment, simplifying fitting during cabinet assembly
Who It Helps
- Modular kitchen and furniture manufacturers specifying concealed drawer channels
- Carpenters and fabricators installing push-to-open drawer systems
- Interior designers and architects sourcing hardware for cabinetry projects
- Homeowners or contractors replacing or upgrading drawer slides
Product Facts
| Attribute | Detail |
|---|---|
| Product name | Hettich Quadro V6 Full Extension, 550 mm – Push to Open with Catch |
| Brand | Hettich |
| Category | Drawer Channels > Concealed Undermount Channel |
| SKU | 9243247 |
| Closing functionality | Push to open |
| Size | 550 mm |
| Weight capacity | 30 kg |
| Material | Galvanised steel |
| Unit | Set |
| Installation width | 20 mm |
| Channel height | 37 mm |
| Extension type | Full extension |
| Minimum cabinet internal depth | 563 mm |
| Cycle testing | 80,000 cycles – EN 15338 Level 3 |
| Package content | 1 unit = 2 channels & 2 catches |
| Warranty | 20 years |
| Country of origin | India |
Key Capabilities
- Silent System: integrated damping that closes the drawer quietly and gently, reducing noise and slamming
- Full extension: drawer pulls out completely for full access to stored contents
- 30 kg loading capacity: suitable for standard kitchen and furniture drawer loads
- Push-to-open with catch: handle-free opening mechanism, useful for handleless cabinet designs
- Tool-less height adjustment: simplifies on-site installation and alignment
- Galvanised steel construction: built for durability, tested to 80,000 open/close cycles under EN 15338 Level 3
Available Sizes
The Quadro V6 Full Extension, Push to Open with Catch range (SKU 9243241_P family) is available in multiple sizes:
- 250 mm
- 300 mm
- 350 mm
- 400 mm
- 450 mm
- 500 mm
- 550 mm (this listing)
Buyer Questions This Page Should Answer
What does "push to open" mean for this drawer channel?
It means the drawer can be opened with a light push instead of a handle or pull — useful for handleless or minimalist cabinet fronts. The included catch mechanism enables this function.
What is the weight capacity?
The Quadro V6 550 mm channel supports up to 30 kg per drawer set.
What is included in the package?
One unit includes 2 channels and 2 catches — enough for a single drawer.
What cabinet depth do I need?
A minimum cabinet internal depth of 563 mm is required to fit the 550 mm channel.
How durable is this product?
It is cycle-tested to 80,000 open/close cycles under EN 15338 Level 3, and carries a 20-year warranty.
What material is it made from?
Galvanised steel, which supports load-bearing durability and corrosion resistance.
Is installation difficult?
The design supports slide-on installation with catches and tool-less height adjustment, intended to simplify fitting without specialized tools.
