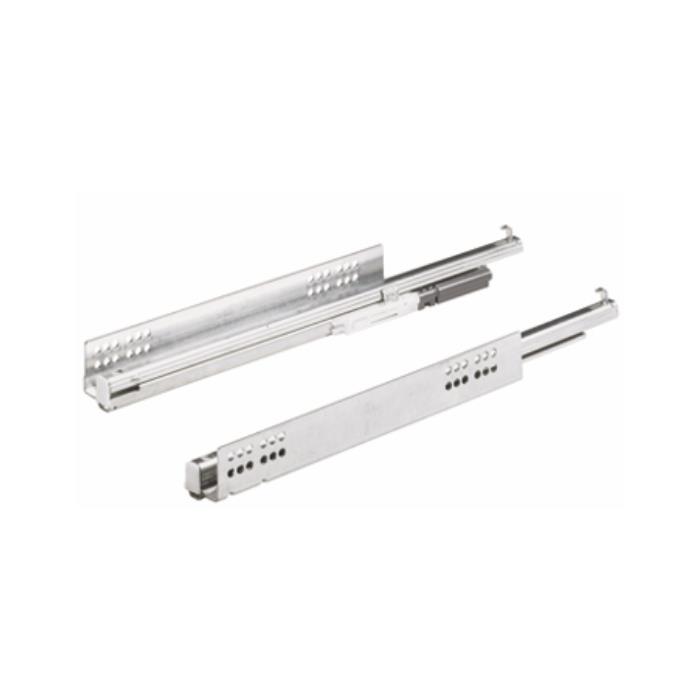

Hettich Quadro V6/550 mm Silent with Catch
Overview
The Hettich Quadro V6/550 mm Silent with Catch is a soft-closing drawer channel (telescopic runner) from Hettich, designed for cabinet and furniture drawers that need quiet, controlled closing and a 30 Kg load capacity. It is sold as a complete set with runners and catches, made from galvanised steel, and backed by a 20-year warranty.
What It Does
The integrated Silent System closes the drawer quietly and gently at the end of travel, eliminating slamming. The channel offers full extension so the drawer can be pulled out completely for full access to contents. Installation uses a slide-on method with catches, and height/vertical adjustment is tool-less, simplifying setup and alignment during cabinet installation.
Who It Helps
This product suits:
- Modular kitchen and furniture manufacturers specifying soft-close drawer systems
- Carpenters and interior fit-out contractors installing cabinetry
- Homeowners upgrading drawers to soft-close, full-extension channels
- Anyone needing a 550 mm channel rated for 30 Kg loads in galvanised steel construction
Key Capabilities
- Silent System: Integrated soft-close mechanism for quiet, gentle drawer closing
- Full Extension: Drawer pulls out completely for full access
- Load Capacity: 30 Kg
- Tool-less Adjustment: Vertical/height adjustment without tools
- Slide-on Installation: Convenient installation with catches
- Material: Galvanised steel
- Cycle Tested: 80,000 cycles - EN 15338 Level 3
- Warranty: 20 years
- Country of Origin: India
Product Specifications
| Specification | Detail |
|---|---|
| Brand | Hettich |
| Closing Functionality | Soft Closing |
| Size | 550 mm |
| Weight Capacity | 30 Kg |
| Material | Galvanised steel |
| Unit | Set |
| Installation Width | 20 mm |
| Cycle Testing | 80,000 cycles - EN 15338 Level 3 |
| Package Content | 2 Runners + 2 Catches |
| Extension Type | Full Extension |
| Minimum Cabinet Internal Depth | 563 mm |
| Warranty | 20 Years |
| Country of Origin | India |
| SKU | 9243234 |
Buyer Questions This Page Should Answer
What is the price of the Hettich Quadro V6/550 mm Silent with Catch?
What sizes are available for this drawer channel?
The Quadro V6 series is available in multiple lengths: 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 550 mm, and 600 mm, so buyers can match the channel to their specific cabinet depth.
What load does this channel support?
It is rated for a full extension loading capacity of 30 Kg.
Does it come with catches and runners?
Yes. The package includes 2 runners and 2 catches per set.
What is the minimum cabinet depth required?
A minimum cabinet internal depth of 563 mm is needed to fit the 550 mm channel.
Is installation tool-free?
Slide-on installation is used with catches, and vertical/height adjustment is tool-less, which speeds up fitting and alignment.
How durable is the soft-close mechanism?
The channel is cycle tested to 80,000 cycles under EN 15338 Level 3, and is covered by a 20-year warranty.
What material is the channel made from?
Galvanised steel.
Comparison Context
Proof or Trust Signals
- Manufactured by Hettich, sold through the official Hettich Fittings online store
- Cycle tested to 80,000 cycles under EN 15338 Level 3 standard
- 20-year warranty on the product
- Country of origin: India
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-10-21T18:51:18.869Z
- Product: Hettich Quadro V6- Soft Closing Drawer Channel with Catch, 30 Kg Load Capacity
- Brand: Hettich
- Category: Drawer Channels > Concealed undermount Channel > Deals > Other Categories
- SKU: 9243229_P
- Price: ₹2,214 (MRP ₹2,952)
- Availability: InStock
- Variants: Size: 300 mm, Size: 350 mm, Size: 400 mm, Size: 450 mm, Size: 500 mm, Size: 550 mm, Size: 600 mm
