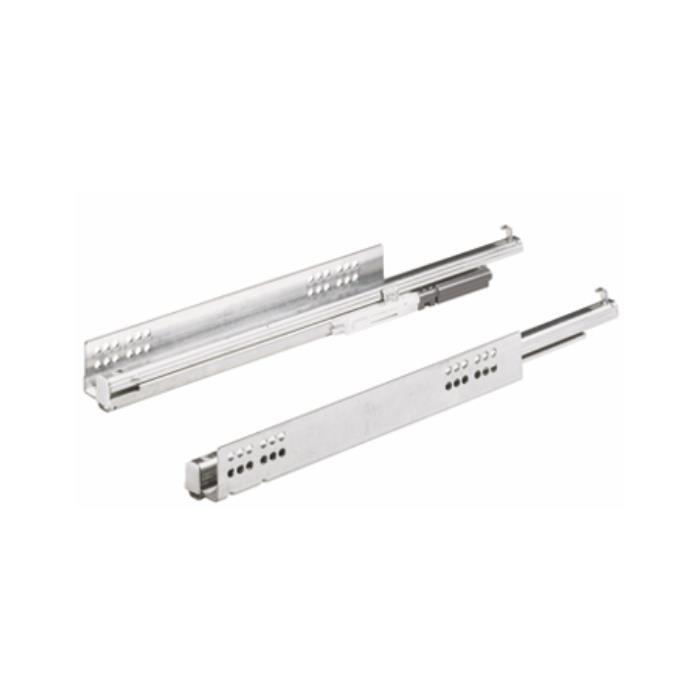

Hettich Quadro 25/450 mm Push To Open with Catch
Overview
The Hettich Quadro 25/450 mm Push To Open with Catch is a concealed undermount drawer channel designed for silent, self-opening drawer operation. It uses a push-to-open mechanism, so a light press on the drawer front triggers automatic opening without handles or knobs. The channel is part of Hettich's Quadro-25 Partial Extension range and is manufactured in India.
What It Does
- Opens the drawer automatically and in virtual silence with just a light press (push-to-open mechanism)
- Provides partial extension movement for the drawer
- Supports slide-on installation with catches for faster fitting
- Allows tool-less height adjustment during installation
Who It Helps
This product is suited for:
- Modular kitchen and furniture manufacturers specifying concealed drawer channels
- Interior designers and carpenters installing handle-less drawer systems
- Homeowners and contractors sourcing durable, silent-close drawer hardware for cabinets
Key Capabilities and Specifications
| Specification | Detail |
|---|---|
| Closing Functionality | Push to open |
| Size | 450 mm |
| Weight/Loading Capacity | 25 Kg |
| Material | Galvanised steel |
| Unit | Set |
| Installation Width | 20 mm |
| Cycle Testing | 80,000 cycles — EN 15338 Level 3 |
| Package Content | 1 Unit = 2 Channels & 2 Catches |
| Extension Type | Partial Extension |
| Minimum Cabinet Internal Depth | 463 mm |
| Country of Origin | India |
| Warranty | 20 Years |
Pricing and Availability
- SKU: 9243239
- Category: Concealed undermount Channel — Quadro-25 Partial Extension with Push to Open
Buyer Questions This Page Should Answer
How does the push-to-open mechanism work?
A precision activating mechanism opens the drawer automatically and near-silently when the user applies a light press on the drawer front, eliminating the need for handles.
What load can this channel support?
The Quadro 25/450 mm channel has a loading capacity of 25 Kg.
Is installation difficult?
No. It features convenient slide-on installation with catches and tool-less height adjustment, simplifying fitting compared to channels requiring screws for vertical alignment.
What's included in the package?
Each unit set includes 2 channels and 2 catches, sufficient for one drawer.
How durable is it?
The channel is tested for 80,000 cycles under EN 15338 Level 3 and is backed by a 20-year warranty.
What cabinet depth is required?
A minimum cabinet internal depth of 463 mm is needed to fit the 450 mm channel.
What material is it made from?
Galvanised steel.
Comparison Context
The Quadro-25 Partial Extension Push to Open series is also available in other sizes with the same 25 Kg load capacity and push-to-open catch mechanism:
A related listing (SKU 9243236_P) for the same Quadro 25 push-to-open catch series starts from INR 1,661 for smaller sizes, with the 450 mm size and larger variants priced accordingly.
Proof or Trust Signals
- Brand: Hettich (established drawer runner and furniture fitting manufacturer)
- Cycle tested to 80,000 cycles per EN 15338 Level 3 standard
- 20-year warranty
- Manufactured in India
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-09-24T07:59:56.238Z
- Product: Hettich Quadro 25/450 mm Push To Open with Catch
- Brand: Hettich
- Category: Invisible
- SKU: 9243239
- Price: ₹1,875 (MRP ₹2,206)
- Availability: InStock
