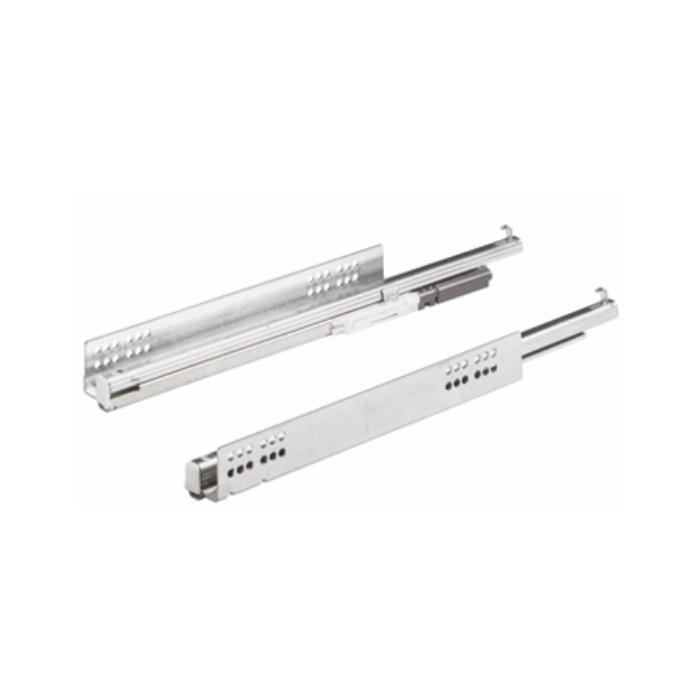

Hettich Quadro 25/350 mm Silent with Catch
Overview
The Hettich Quadro 25/350 mm Silent with Catch is a partial-extension drawer runner system from Hettich, built for silent, smooth drawer operation using an integrated Silent System. It is designed for cabinets and furniture that need a reliable, soft-closing channel with a 25 kg load capacity.
What It Does
The integrated Silent System closes the drawer quietly and gently, avoiding slamming or noise at the end of the drawer's travel. Installation uses a convenient slide-on method with catches, and vertical adjustment is tool-less, simplifying setup and alignment during cabinet assembly.
Who It Helps
- Furniture manufacturers and modular kitchen fabricators needing durable, tested drawer channels
- Carpenters and interior fit-out contractors sourcing hardware for cabinets and drawers
- Homeowners and renovators replacing or upgrading drawer runners for quieter operation
Key Capabilities
- Silent System: Integrated soft-close mechanism for quiet, gentle drawer closing
- Loading Capacity: 25 kg per set
- Extension Type: Partial extension
- Installation: Slide-on installation with catches; tool-less vertical adjustment
- Material: Galvanised steel for durability
- Warranty: 20 years
- Cycle Tested: 80,000 cycles, rated EN 15338 Level 3
- Country of Origin: India
Product Specifications
| Attribute | Detail |
|---|---|
| Brand | Hettich |
| Category | Drawer Channels / Concealed Undermount Channel |
| SKU (350 mm, Invisible listing) | 9243224 |
| SKU (350 mm, variant listing) | 9243222_P |
| Closing Functionality | Soft Closing |
| Size | 350 mm |
| Weight Capacity | 25 Kg |
| Material | Galvanised steel |
| Unit | Set |
| Installation Width | 20 mm |
| Channel Height | 34 mm |
| Extension | Partial Extension |
| Minimum Cabinet Internal Depth | 363 mm |
| Package Content | 2 Runners + 2 Catches |
| Cycle Testing | 80,000 cycles - EN 15338 Level 3 |
| Warranty | 20 Years |
Pricing and Availability
Available Sizes
The Quadro 25 Silent with Catch channel is available in the following lengths:
- 250 mm
- 300 mm
- 350 mm
- 400 mm
- 450 mm
- 500 mm
- 550 mm
Buyer Questions This Page Should Answer
What is the load capacity of the Hettich Quadro 25/350 mm channel?
It supports up to 25 kg per set.
Does this drawer channel close quietly?
Yes. It uses Hettich's integrated Silent System, which closes the drawer gently and quietly without the need for a separate soft-close add-on.
What sizes are available?
The Quadro 25 Silent with Catch series is available from 250 mm to 550 mm in 50 mm increments.
What is included in the package?
Each set includes 2 runners and 2 catches.
Is it tool-free to install?
Installation is slide-on with catches, and vertical adjustment is tool-less, making alignment easier during fitting.
What material is it made of, and how durable is it?
It is made of galvanised steel and is cycle-tested to 80,000 cycles under EN 15338 Level 3, with a 20-year warranty.
What is the minimum cabinet depth required?
The minimum internal cabinet depth needed is 363 mm.
Where is it manufactured?
Country of origin is India.
Proof or Trust Signals
- 20-year warranty backing the product
- Cycle tested to 80,000 cycles, rated EN 15338 Level 3
- Sold under the established Hettich fittings brand
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-09-24T07:58:14.234Z
- Product: Hettich Quadro 25 - Soft Closing Drawer Channel with Catch, 25 Kg Load Capacity
- Brand: Hettich
- Category: Drawer Channels > Concealed undermount Channel > Deals > Other Categories
- SKU: 9243222_P
- Price: ₹972 (MRP ₹1,296)
- Availability: InStock
- Variants: Size: 250 mm, Size: 300 mm, Size: 350 mm, Size: 400 mm, Size: 450 mm, Size: 500 mm, Size: 550 mm
