Hettich Quadro 25/300 mm Push To Open with Catch

Overview

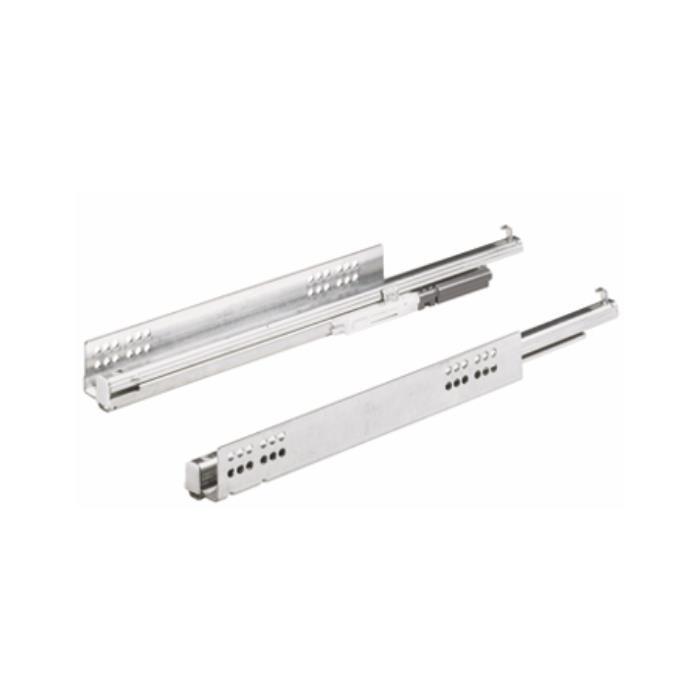

The Hettich Quadro 25 is a concealed undermount drawer channel designed for push-to-open operation. A light press on the drawer front triggers a precision activating mechanism that opens the drawer automatically and silently, eliminating the need for handles or knobs. This 300 mm variant comes with catches for slide-on installation.

What It Does

The Quadro 25 channel allows a drawer to open with just a light push, using a precision-activated catch mechanism. It supports partial extension and includes tool-less height (vertical) adjustment during installation, making it suitable for handle-less cabinet designs.

Who It Helps

Key Capabilities

Product Specifications

AttributeDetail
BrandHettich
CategoryDrawer Channels > Concealed Undermount Channel > Quadro-25 Partial Extension with Push to Open
SKU9243236
Closing FunctionalityPush to open
Size300 mm
Weight Capacity25 Kg
MaterialGalvanised steel
UnitSet
Installation Width20 mm
Cycle Testing80,000 cycles - EN 15338 Level 3
Package Content1 Unit = 2 Channels & 2 Catches
ExtensionPartial Extension
Minimum Cabinet Internal Depth313 mm
Country of OriginIndia
Warranty20 Years

Available Size Variants

The Quadro 25 push-to-open channel with catch is available in multiple lengths to fit different drawer depths:

Buyer Questions This Page Should Answer

What load can the Hettich Quadro 25/300 mm channel carry?

It supports a loading capacity of 25 Kg per set.

Does it require handles on the drawer front?

No. The push-to-open mechanism lets the drawer open with a light press, so handle-less drawer fronts are supported.

What is the minimum cabinet depth needed?

The minimum cabinet internal depth required is 313 mm for the 300 mm channel.

What does one unit include?

One unit consists of 2 channels and 2 catches, sufficient for one drawer.

How durable is this channel?

It is cycle-tested to 80,000 open/close cycles under EN 15338 Level 3, and backed by a 20-year warranty.

What is it made of?

Galvanised steel.

Is installation tool-free?

Installation uses a slide-on method with catches, and height adjustment is tool-less.

What sizes are available beyond 300 mm?

The Quadro 25 push-to-open with catch range is also available in 350 mm, 400 mm, 450 mm, and 500 mm lengths.
