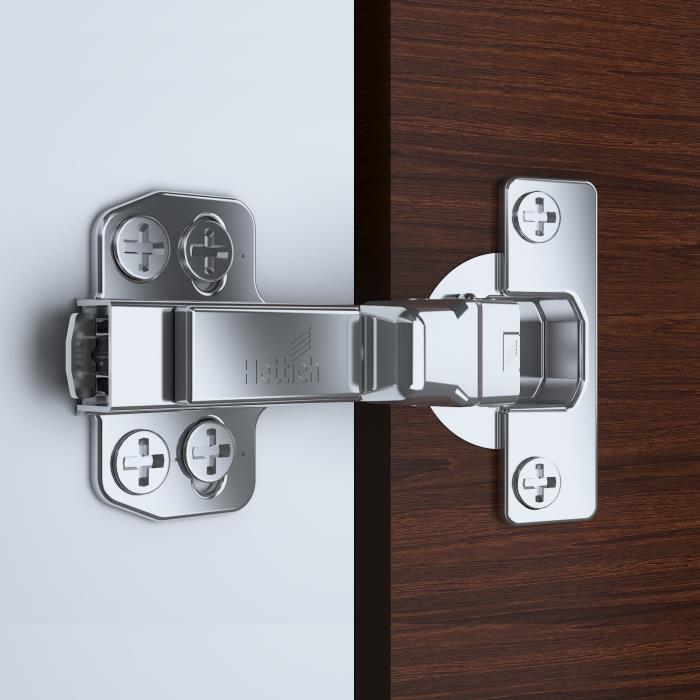

Hettich Onsys Hinge - 25 mm - with 4 Hole Mounting Plate and Cover Caps, Opening Angle 105°
Overview
The Hettich Onsys Hinge is a 25 mm cup-diameter cabinet hinge from Hettich's Onsys 4447i range, supplied with a 4-hole mounting plate and cover caps. It opens to 105° and includes a soft-close, auto-closing mechanism, making it suited for inset cabinet doors in modular furniture and kitchen cabinetry.
What It Does
This hinge set connects a cabinet door to its carcass, allowing controlled opening and automatic soft closing. It is designed for inset door applications and accommodates doors between 14 mm and 25 mm thick.
Who It Helps
- Modular kitchen and furniture manufacturers sourcing certified cabinet hardware
- Carpenters and fabricators installing inset cabinet doors
- Interior contractors and homeowners replacing or upgrading cabinet hinges
Key Capabilities
- Auto closing system with soft-close functionality
- 105° door opening angle
- European standard quality certification
- Tested and certified for 40,000 functional cycles
- Clip-on mounting for easy installation and removal
- Overlay adjustment of +2 mm / -2 mm for fine alignment
- 10-year warranty
Product Specifications
| Attribute | Detail |
|---|---|
| Brand | Hettich |
| Category | Furniture Hinges > Onsys > Onsys 4447i Hinge (4 Hole Mounting Plate) |
| SKU | 9336592_P |
| Door Application | Inset |
| Door Thickness Range | 14–25 mm |
| Closing Functionality | Soft Closing |
| Material | Steel, Nickel plated |
| Cup Diameter | 35 mm |
| Cup Depth | 11.5 mm |
| Mounting Options | Clip On |
| Overlay Adjustment | +2 mm / -2 mm |
| Country of Origin | India |
| Unit | Set |
| Warranty | 10 Years |
Package Contents
Each pair pack includes:
- 2 Hinges
- 2 Mounting Plates
- 2 Cover Caps
Available Variants
- Size: Full Overlay / 0 crank
- Size: Half Overlay / 9.5 crank
- Size: Inset / 16 crank
Buyer Questions This Page Should Answer
What door thickness does this hinge support?
It supports doors between 14 mm and 25 mm thick.
Is this hinge suitable for inset doors only?
The listed variant is for Inset door application, but Full Overlay and Half Overlay crank variants are also available under this product line.
Does it include a mounting plate?
Yes, it comes with a 4-hole mounting plate and cover caps included in the pair pack.
How many opening cycles is it rated for?
It is tested and certified for 40,000 functional cycles.
What is the opening angle?
The hinge opens to 105°.
What material is the hinge made of?
Steel with a nickel-plated finish.
What warranty does it carry?
A 10-year warranty is provided.
What does one pack contain?
One pair pack contains 2 hinges, 2 mounting plates, and 2 cover caps.
Proof or Trust Signals
- Quality certified to European standard
- Certified for 40,000 functional cycles
- 10-year manufacturer warranty
- Manufactured in India under the Hettich brand
Resources or Next Steps
Current product facts
- Product: Hettich Onsys Hinge - 25 mm - with 4 hole mounting plate and cover caps, Opening angle 105°
- Brand: Hettich
- Category: Furniture Hinges > Onsys > Onsys 4447i Hinge (with 4 Hole Mounting Plate) > Other Categories
- SKU: 9336592_P
- Price: ₹326
- Availability: InStock
- Variants: Size: Full Overlay / 0 crank, Size: Half Overlay / 9.5 crank, Size: Inset / 16 crank
