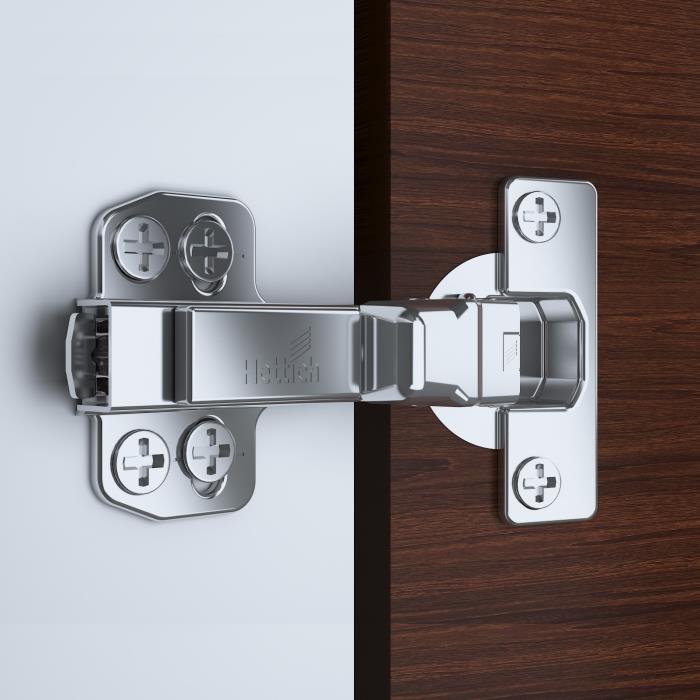

Hettich Onsys Hinge - 25 mm - 9.5 Crank with 4 Hole Mounting Plate and Cover Caps
Overview
The Hettich Onsys Hinge is a cabinet door hinge from Hettich's Onsys 4447i range, designed for half overlay door applications with a 25 mm cup diameter body and a 9.5 mm crank. It ships as a set with a 4-hole mounting plate and cover caps, and includes an auto-closing (soft-close) mechanism with a 105° opening angle.
What It Does
This hinge mounts inside cabinet doors to control opening and closing motion. It uses a clip-on mounting system, closes automatically via a built-in soft-close function, and opens to 105° for full access to cabinet interiors. The 9.5 mm crank size is matched to half overlay door construction.
Who It Helps
- Modular kitchen and furniture manufacturers sourcing certified European-standard hinges
- Carpenters and fabricators building cabinet doors with half overlay configuration
- Homeowners or contractors replacing or upgrading cabinet hinges with soft-close hardware
Key Capabilities
- Auto-closing (soft-close) system for controlled, quiet door closing
- 105° door opening angle for wide access
- Quality certified to European standard
- Tested and certified for 40,000 functional cycles
- Clip-on mounting for easy installation and removal
- 10-year warranty
Product Specifications
| Attribute | Detail |
|---|---|
| Brand | Hettich |
| Product line | Onsys 4447i Hinge (with 4 Hole Mounting Plate) |
| SKU | 9336591 |
| Door application | Half Overlay |
| Door thickness supported | 14 - 25 mm |
| Closing functionality | Soft Closing (auto-closing system) |
| Opening angle | 105° |
| Material / finish | Steel, Nickel plated |
| Cup diameter | 35 mm |
| Mounting options | Clip On |
| Unit | Set |
| Net content | 2 Hinges, 2 Mounting Plates, 2 Cover Caps |
| Manufacturer | Hettich Indore |
| Country of origin | India |
| Warranty | 10 Years |
Variants Available
The Onsys 4447i hinge family is offered in three crank sizes to match different door overlay configurations:
| Variant | Crank Size | Application |
|---|---|---|
| Full Overlay | 0 crank | Full overlay doors |
| Half Overlay | 9.5 crank | Half overlay doors (this listing) |
| Inset | 16 crank | Inset doors |
Buyer Questions This Page Should Answer
What door thickness does this hinge support?
It supports door thickness from 14 mm to 25 mm.
Does this hinge close automatically?
Yes, it has a built-in auto-closing (soft-close) system.
How wide does the door open?
The hinge allows a 105° opening angle.
What is included in the package?
Each set contains 2 hinges, 2 mounting plates, and 2 cover caps.
Which crank size do I need?
Use the 0 crank for full overlay doors, 9.5 crank for half overlay doors, and 16 crank for inset doors.
How durable is this hinge?
It is tested and certified for 40,000 functional cycles and carries a 10-year warranty.
Proof or Trust Signals
- Quality certified to European standard
- Tested and certified for 40,000 functional cycles
- 10-year manufacturer warranty
- Manufactured by Hettich Indore, India
Resources or Next Steps
Current product facts
- Product: Hettich Onsys Hinge - 25 mm - with 4 hole mounting plate and cover caps, Opening angle 105°
- Brand: Hettich
- Category: Furniture Hinges > Onsys > Onsys 4447i Hinge (with 4 Hole Mounting Plate) > Other Categories
- SKU: 9336592_P
- Price: ₹326
- Availability: InStock
- Variants: Size: Full Overlay / 0 crank, Size: Half Overlay / 9.5 crank, Size: Inset / 16 crank
