Hettich Onsys Hinge - 25 mm - 0 Crank with 4-Hole Mounting Plate and Cover Caps

Overview

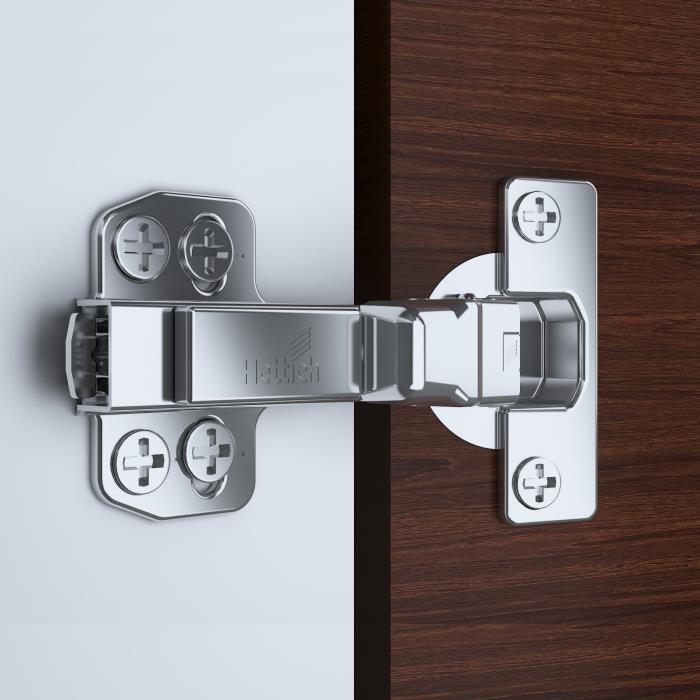

The Hettich Onsys Hinge is a 25 mm cabinet door hinge from Hettich's Onsys 4447i range, supplied with a 4-hole mounting plate and cover caps. It is designed for full overlay cabinet door applications with a 105° opening angle and an auto-closing (soft-close) mechanism. The hinge is manufactured in India and carries a 10-year warranty.

What It Does

This hinge set attaches cabinet doors to carcass sides, allowing smooth, controlled opening and automatic soft closing. The 4-hole mounting plate provides a stable base for installation, and cover caps give a finished appearance once fitted.

Who It Helps

• Modular kitchen and furniture manufacturers sourcing certified European-standard hinges
• Carpenters and fabricators installing overlay cabinet doors
• Homeowners or contractors replacing or upgrading cabinet hinges with a durable, soft-close option

Key Capabilities

• Opening angle: 105°
• Closing functionality: Soft closing (auto-closing system)
• Door application: Full Overlay (0 crank variant)
• Door thickness range: 14–25 mm
• Material/finish: Steel, Nickel plated
• Cup diameter: 35 mm
• Cup depth: 11.5 mm
• Overlay adjustment: +2 mm / -2 mm
• Mounting option: Clip On
• Certification: Quality certified to European standard; tested and certified for 40,000 functional cycles
• Warranty: 10 years
• Country of origin: India
• Package content: 1 pair containing 2 hinges, 2 mounting plates, and 2 cover caps

Product Details

Variants

This hinge is available in three crank/overlay configurations:

Buyer Questions This Page Should Answer

What door thickness does this hinge support?

It is suitable for door thicknesses between 14 mm and 25 mm.

Does it have a soft-close feature?

Yes, it includes an auto-closing (soft-close) system.

What comes in the package?

Each pack contains 1 pair: 2 hinges, 2 mounting plates, and 2 cover caps.

What is the opening angle?

The hinge opens to 105°.

What is the warranty period?

Hettich offers a 10-year warranty on this hinge.

Is it certified or durability-tested?

Yes, it is quality certified to European standard and tested for 40,000 functional cycles.

What material is the hinge made of?

Steel with a nickel-plated finish.

Which crank/overlay variant should I choose?

Choose Full Overlay (0 crank) for standard overlay doors, Half Overlay (9.5 crank) for half overlay setups, or Inset (16 crank) for inset door applications.

Proof or Trust Signals

• Quality certified to European standard
• Tested and certified for 40,000 functional cycles
• 10-year warranty from Hettich
• Manufactured in India (Hettich Indore)
