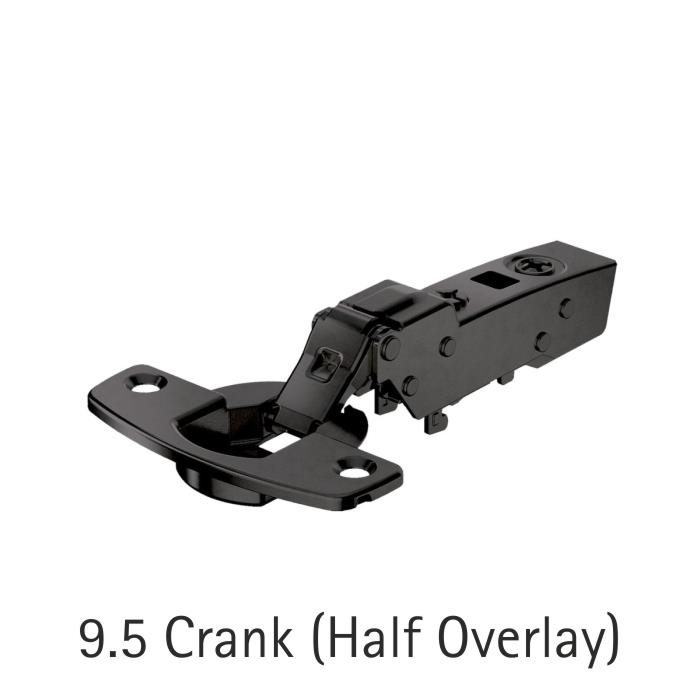

Hettich Obsidian Black Sensys Hinge - 24 mm - 9.5 Crank with Mounting Plate and Cover Cap

Overview

The Hettich Obsidian Black Sensys Hinge is a soft-close furniture hinge finished in Obsidian Black steel, designed for half overlay cabinet doors up to 24 mm thick. It is part of Hettich's Sensys hinge range and is sold with a mounting plate and cover cap included, ready to install as a pair.

What It Does

This hinge lets a half overlay cabinet door open to 110° and close smoothly via an integrated soft-close mechanism, without a separate soft-close damper. It is built for modern dark-finish furniture where the hinge itself is meant to blend in rather than stand out.

Who It Helps

• Furniture makers and modular kitchen/wardrobe fabricators building with dark or black-finish cabinet doors
• Interior designers and contractors sourcing branded German-engineered hinges for half overlay door applications
• Homeowners or retailers replacing or upgrading cabinet hinges with soft-close, cover-cap-finished hardware

Key Capabilities

• Soft close: Integrated soft-closing functionality, no add-on damper required
• Door application: Half Overlay
• Door thickness supported: 15 mm to 24 mm
• Opening angle: 110°
• Finish: Steel in Obsidian Black
• Material: Nickel-plated steel
• Cup diameter: 35 mm
• Cup depth: 12.8 mm
• Mounting: Clip-on
• Overlay adjustment: +2 mm / -2 mm
• Warranty: 20 years

Product Specifications

Buyer Questions This Page Should Answer

Is this hinge suitable for my cabinet doors?

It is designed for half overlay doors with a thickness between 15 mm and 24 mm.

Does it come with mounting hardware?

Yes. Each pack contains 2 hinges, 2 mounting plates, and 2 cover caps — ready to install as a pair.

Does it need a separate soft-close damper?

No. Soft-close functionality is integrated into the hinge itself.

What finish does it have and will it match dark furniture?

It has an Obsidian Black steel finish, designed to blend into modern dark-colored cabinetry.

How wide does the door open?

The hinge supports a 110° opening angle.

What is the warranty?

Hettich backs this hinge with a 20-year warranty.

Comparison Context

• Full Overlay / 0 crank
• Half Overlay / 9.5 crank
• Inset / 16 crank

Buyers should match the crank/overlay variant to their specific door and cabinet construction (inset vs. half overlay vs. full overlay) before ordering, since hinge geometry differs by application.
