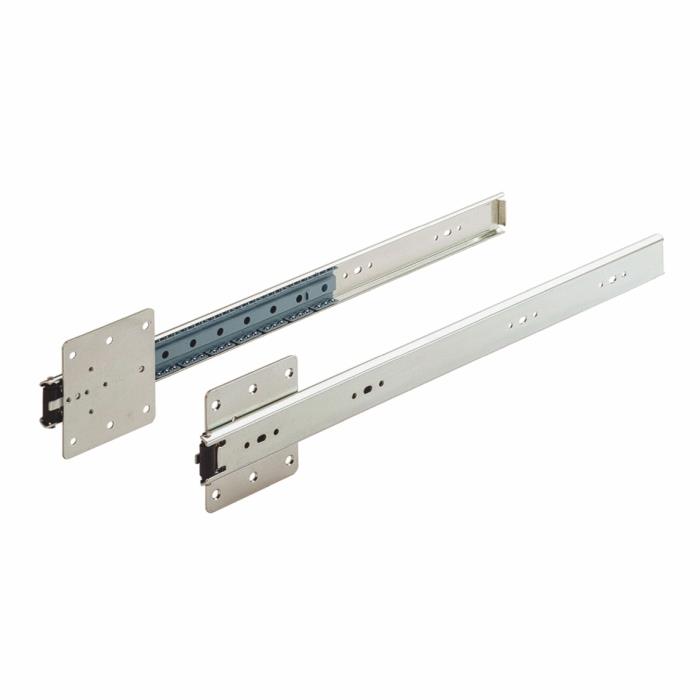

Hettich KA 5740, 8 kg per Shutter - 600 mm

Overview

The Hettich KA 5740 is a special sliding fitting system from Hettich's Sliding Door Solutions range, designed for wooden sliding cabinet doors. It supports door heights up to 1500 mm and widths of 300-600 mm, with a weight capacity of 8 kg per shutter. The fitting includes a roll-out locating catch for smooth operation and secure closure, and is tested to the ANSI/BIFMA X5.5 furniture performance standard.

What It Does

The KA 5740 enables smooth, controlled sliding motion for wooden cabinet doors. The roll-out locating catch keeps doors securely positioned when closed, preventing accidental sliding or misalignment. It is a track-and-channel system sized to match the cabinet's internal depth and door dimensions.

Who It Helps

Key Specifications

AttributeDetail
BrandHettich
CategorySliding Door Solutions > Special Sliding Fittings > KA 5740
Door materialWooden doors
Door heightUp to 1500 mm
Door width300 - 600 mm
Door thickness16 - 19 mm
Weight capacity8 kg per shutter
Locating catchRoll-out locating catch included
Testing standardANSI/BIFMA X5.5
Warranty10 years
Minimum cabinet internal depth626 mm

Pricing and Availability

Prices are listed in Indian Rupees (INR) and are current at time of listing; confirm final pricing with Hettich or an authorized dealer.

Available Channel Length Variants

The KA 5740 series is available in the following channel lengths:

Buyer Questions This Page Should Answer

What door sizes does the KA 5740 support?

It supports wooden doors up to 1500 mm in height, 300-600 mm in width, and 16-19 mm in thickness.

What is the maximum weight it can hold?

Up to 8 kg per shutter (per door).

Does it include a locking or catch mechanism?

Yes, it has a roll-out locating catch that ensures the door closes securely and stays in position.

Is it certified or tested?

Yes, the KA 5740 is tested to the ANSI/BIFMA X5.5 standard, a recognized furniture durability benchmark.

What warranty is offered?

The fitting carries a 10-year warranty.

What channel lengths are available?

Nine channel length options ranging from 300 mm to 700 mm, allowing fitment across different cabinet widths.

What is the minimum cabinet depth required?

A minimum internal cabinet depth of 626 mm is needed to accommodate the 600 mm channel length variant.
