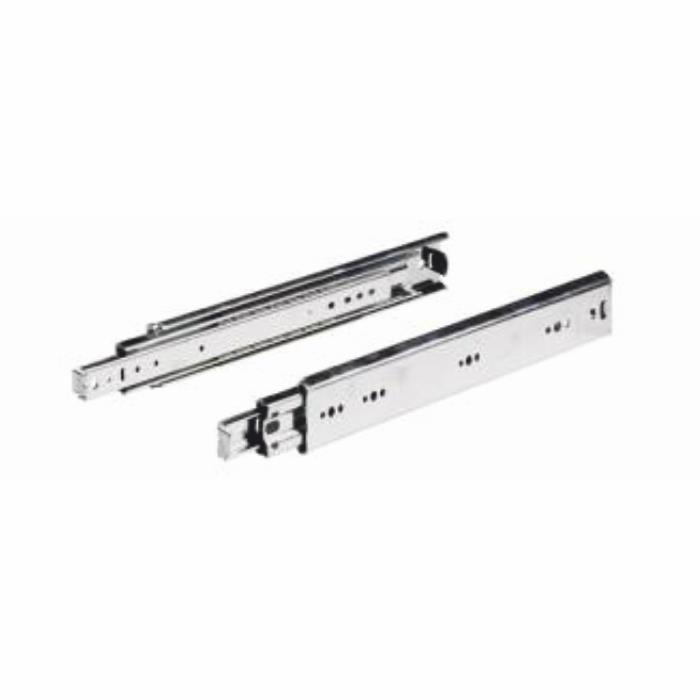

Hettich KA 4620/700 mm Over Extension Drawer Channel
Overview
The Hettich KA 4620/700 mm Over Extension is a telescopic drawer channel (runner) designed for cabinet drawers that need full access to stored contents. It belongs to Hettich's Drawer Channels > Telescopic Channel - Regular > KA 4620 range and is sold through Hettich Fittings online.
What It Does
The KA 4620 is an over-extension runner with a pull-out stop and roll-out guard. It allows a drawer to extend fully beyond the cabinet front, giving complete access to items stored at the back of the drawer while maintaining stability during use.
Who It Helps
This channel is intended for furniture manufacturers, modular kitchen fabricators, carpenters, and homeowners installing or replacing drawer systems that require full-extension access, such as deep storage drawers in kitchens, wardrobes, or cabinetry.
Key Capabilities
- Over-extension mechanism for full drawer access
- Pull-out stop and roll-out guard for safe, controlled operation
- 90 kg loading capacity
- Rated for 20,000 open/close cycles
- Galvanised steel construction with blue passivation and zinc finish
- 10-year warranty
Product Facts
| Attribute | Detail |
|---|---|
| Product | Hettich KA 4620/700 mm Over Extension |
| Brand | Hettich |
| Category | Invisible (Drawer Channels > Telescopic Channel - Regular > KA 4620) |
| SKU | 41398 |
| Size | 700 mm |
| Weight Capacity | 90 Kg |
| Material | Galvanised steel, blue passivated |
| Finish Type | Zinc |
| Closing Functionality | Normal Closing |
| Installation Width | 19 mm |
| Channel Height | 58 mm |
| Minimum Cabinet Internal Depth | 704 mm |
| Cycle Testing | 20,000 cycles |
| Package Content | 1 unit = 2 runners (set) |
| Warranty | 10 Years |
| Country of Origin | Taiwan |
Buyer Questions This Page Should Answer
What size drawer does this channel fit?
The 700 mm version requires a minimum cabinet internal depth of 704 mm.
How much weight can it hold?
The KA 4620/700 mm channel is rated for a 90 Kg loading capacity.
Is it currently available to buy?
What does "over extension" mean for this product?
Over extension allows the drawer to pull out fully beyond the cabinet frame, unlike standard or three-quarter extension channels, giving complete access to the drawer interior.
What's included in the package?
Each set contains 2 runners (channels), which is the standard package content for one drawer installation.
What material and finish does it use?
Galvanised steel with blue passivation and a zinc finish, built for durability and corrosion resistance.
Comparison Context
The KA 4620 line is also sold as a general drawer channel product (SKU 41392_P) across multiple sizes, letting buyers choose the length that matches their cabinet depth:
| Size | Notes |
|---|---|
| 400 mm | Part of KA 4620 Over Extension range |
| 450 mm | Part of KA 4620 Over Extension range |
| 500 mm | Part of KA 4620 Over Extension range |
| 550 mm | Part of KA 4620 Over Extension range |
| 600 mm | Part of KA 4620 Over Extension range |
| 650 mm | Part of KA 4620 Over Extension range |
| 700 mm | This product (SKU 41398) |
The size variants share the same 90 Kg loading capacity, pull-out stop, and roll-out guard design as the 700 mm version, but minimum cabinet depth requirements will scale with channel length.
Proof or Trust Signals
- 10-year warranty on the KA 4620/700 mm Over Extension
- Rated and tested for 20,000 open/close cycles
- Branded Hettich product distributed through Hettich Fittings online
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-10-08T18:46:13.405Z
- Product: Hettich KA 4620/700 mm Over Extension
- Brand: Hettich
- Category: Invisible
- SKU: 41398
- Price: ₹2,926 (MRP ₹3,080)
- Availability: OutOfStock
