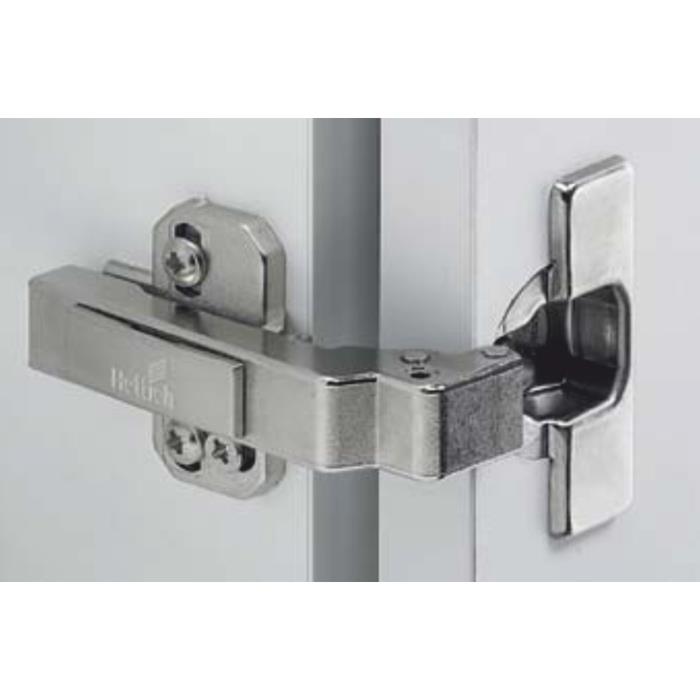

Hettich Intermat W90 Hinge with Mounting Plate
Overview
The Hettich Intermat W90 (Intermat 9936 Hinge W90) is a clip-on cabinet hinge with mounting plate, engineered for blind corner cabinet applications. It is sold as a pair with two mounting plates and is designed for half-overlay doors with a 95° opening angle.
Product Facts
| Attribute | Value |
|---|---|
| Brand | Hettich |
| Product name | Hettich Intermat W90 With Mounting Plate |
| SKU | 9242895 |
| Category | Furniture Hinges > Intermat > Intermat 9936 Hinge W90 |
| Country of origin | India |
| Warranty | 20 years |
| Package content | 2 hinges + 2 mounting plates |
Technical Specifications
| Specification | Detail |
|---|---|
| Application | Blind corner, half overlay doors |
| Door thickness | 14 mm – 28 mm |
| Closing functionality | Normal closing |
| Opening angle | 95° |
| Finish | Nickel plated |
| Material | Steel, nickel-plated |
| Unit | Pair |
| Cup diameter | 35 mm |
| Cup depth | 11.1 mm |
| Size | Half overlay / 9.5 crank |
| Mounting options | Clip-on, screw-on mounting plate |
| Overlay adjustment | +2 mm / -2 mm |
What It Does
This hinge allows cabinet doors in blind corner positions to open and close smoothly at a 90° face angle, optimizing functionality and space where standard hinges cannot be used. The clip-on mounting plate design simplifies installation and allows for door alignment adjustment after fitting.
Who It Helps
- Modular kitchen and furniture manufacturers fitting blind-corner cabinets
- Carpenters and interior fit-out contractors needing precise door alignment hardware
- Homeowners replacing or upgrading cabinet hinges in blind corner units
Buyer Questions This Page Should Answer
What is this hinge used for?
It is designed for blind corner cabinet doors with a half-overlay application, where standard hinges cannot provide proper clearance.
What door thickness does it support?
Doors from 14 mm to 28 mm thick.
Does it come with a mounting plate?
Yes, each pair includes 2 hinges and 2 screw-on mounting plates (steel, nickel-plated).
What is the opening angle?
95°.
Is overlay adjustment possible after installation?
Yes, +2 mm / -2 mm overlay adjustment is supported.
What is the warranty?
20 years.
Where is it manufactured?
India.
Is it currently available?
Proof or Trust Signals
- Branded Hettich product with manufacturer SKU (9242895)
- 20-year warranty backing the hardware
- Made in India
Resources
Current product facts
Last checked by Readable: 2026-10-10T18:50:36.726Z
- Product: Hettich Intermat W90 With Mounting Plate
- Brand: Hettich
- Category: Furniture Hinges > Intermat > Intermat 9936 Hinge W90 > Other Categories
- SKU: 9242895
- Price: ₹900 (MRP ₹1,000)
- Availability: InStock
