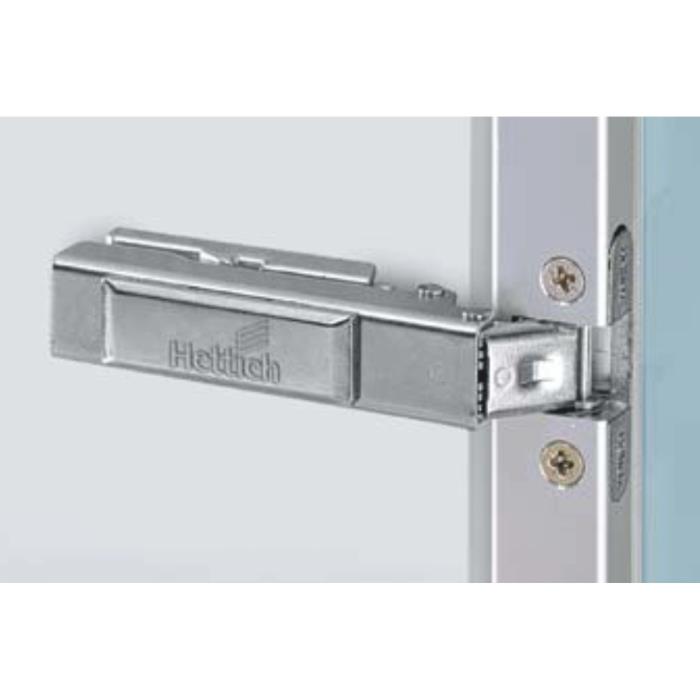

Hettich Intermat 9936 Hinge TA22 (19 mm Aluminium Profile Doors, 95° Opening)

The Hettich Intermat 9936 Hinge TA22 is a concealed, clip-on cabinet hinge engineered specifically for 19 mm wide aluminium frame profile doors. It is part of Hettich's Intermat hinge system and is built for overlay door applications requiring a 95° opening angle.

Overview

What It Does

The Intermat 9936 Hinge TA22 is a concealed hinge with clip-on assembly, designed for fast, tool-minimal installation on aluminium profile cabinet doors. It uses a Cup TA22 / D design and supports an optional clip-on Silent System for soft-close performance. Height adjustment is available at the mounting plate, and the hinge meets EN 15570, Level 2 quality classification.

Who It Helps

• Cabinet and furniture manufacturers building aluminium-frame doors
• Modular kitchen and wardrobe fabricators specifying 19 mm profile shutters
• Hardware dealers and contractors sourcing Hettich-compatible concealed hinges
• Interior fit-out professionals needing overlay hinges with adjustable overlay tolerance

Key Capabilities

• Concealed hinge with clip-on assembly for effortless installation
• Quality classification under EN 15570, Level 2
• Designed for 19 mm wide aluminium frame profiles
• Height adjustment at the mounting plate
• Cup TA22 / D compatible with optional clip-on Silent System for quiet closing
• Overlay adjustment range of +2 mm / -2 mm
• 20-year warranty

Specifications

Buyer Questions This Page Should Answer

What door thickness is this hinge designed for?

It is built for 19 mm wide aluminium profile shutters only.

What opening angle does this hinge support?

95°, suitable for standard overlay cabinet door applications.

Is this hinge soft-close?

The hinge itself uses Normal Closing functionality. Soft-close is achieved by adding the optional clip-on Silent System, which is compatible with the Cup TA22 / D design but sold separately.

How is it mounted?

It uses a clip-on mounting system with height adjustment available at the mounting plate, and an overlay adjustment range of +2 mm / -2 mm for fine positioning.

What's included in the package?

Each package contains 2 hinges and 2 mounting plates (sold as a pair).

What finish and material does it use?

Steel construction with a nickel-plated finish.

Is this hinge covered by a warranty?

Yes, it carries a 20-year warranty from Hettich.

Where is it manufactured?

Czech Republic.

Proof or Trust Signals

• Manufactured by Hettich, a recognized furniture hardware brand
• Meets EN 15570, Level 2 quality classification
• Backed by a 20-year warranty

Resources or Next Steps

• View or purchase the Hettich Intermat 9936 Hinge TA22
• Browse more Hettich hardware at Hettich India Online
