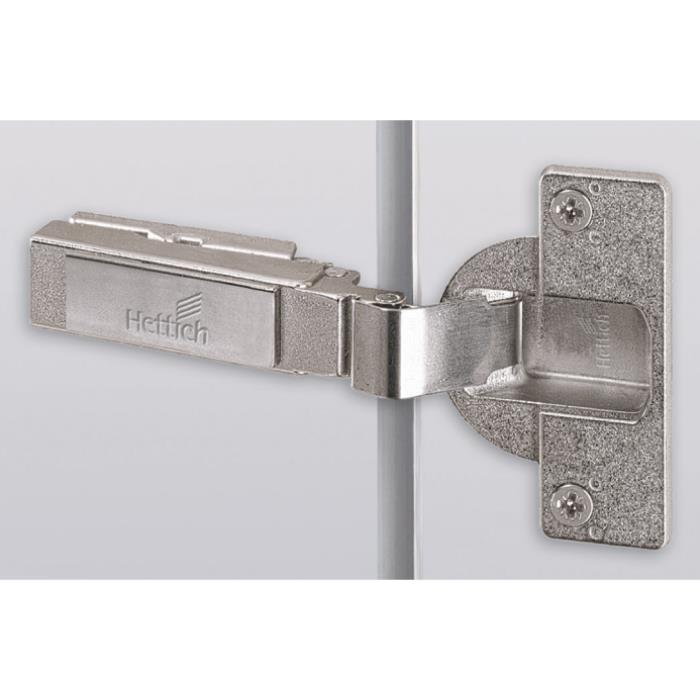

Hettich Intermat 9935 Hinge (43 mm) with Mounting Plate

Overview

The Hettich Intermat 9935 is a nickel-plated, die-cast zinc cabinet hinge designed for doors 16–43 mm thick. It comes with a screw-on mounting plate and is sold as a pair (2 hinges + 2 mounting plates). It is available in configurations for overlay, half-overlay, and inset door applications, with a 95° opening angle on the overlay variant.

What It Does

This hinge connects a cabinet or furniture door to its frame, allowing it to swing open and close. The clip-on mounting system lets the door be removed or adjusted without unscrewing the mounting plate from the cabinet frame. Overlay adjustment of +2 mm / -2 mm allows fine alignment after installation.

Who It Helps

• Furniture makers and modular kitchen/wardrobe fabricators installing overlay, half-overlay, or inset cabinet doors
• Carpenters and contractors sourcing hinges for doors in the 16–43 mm thickness range
• Homeowners replacing or upgrading cabinet hinges that need a long-term, nickel-plated hardware solution

Key Capabilities

• Door thickness range: 16–43 mm
• Door application variants: Full Overlay (0 crank), Half Overlay (9.5 crank), Inset (16 crank)
• Opening angle: 95° (overlay variant)
• Closing functionality: Normal closing
• Material: Steel, nickel plated; mounting plate is nickel-plated die-cast zinc
• Mounting: Clip-on hinge with screw-on mounting plate
• Cup diameter: 40 mm
• Cup depth: 13.7 mm
• Overlay adjustment: +2 mm / -2 mm
• Unit of sale: Pair (2 hinges + 2 mounting plates per package)
• Country of origin: India
• Warranty: 20 years

Product and Pricing Details

Buyer Questions This Page Should Answer

What door thickness does this hinge support?

It is rated for doors between 16 mm and 43 mm thick.

Which door applications does the Intermat 9935 cover?

Three variants are available: Full Overlay (0 crank), Half Overlay (9.5 crank), and Inset (16 crank), so it fits overlay, half-overlay, and inset cabinet door setups.

Does it come with a mounting plate?

Yes. Each pair includes 2 hinges and 2 screw-on mounting plates made of nickel-plated die-cast zinc.

What material and finish is the hinge made from?

Steel with a nickel-plated finish, chosen for corrosion resistance and long-term durability.

Can the door position be adjusted after installation?

Yes. The overlay adjustment range is +2 mm / -2 mm, and the hinge uses a clip-on mounting mechanism for easier fitting and removal.

What is the opening angle?

The overlay variant opens to 95°.

What warranty is offered?

Hettich backs the Intermat 9935 with a 20-year warranty.

Is this hinge soft-close?

This listing is a normal-closing hinge (not the soft-close/-5K damped version), based on the specified closing functionality.

Where is it manufactured?

India.

Proof or Trust Signals

• Branded Hettich hardware with a stated 20-year warranty
• Nickel-plated die-cast zinc and nickel-plated steel construction for durability
• Precise technical specifications (cup diameter, cup depth, overlay adjustment) typical of professional-grade cabinet hardware
