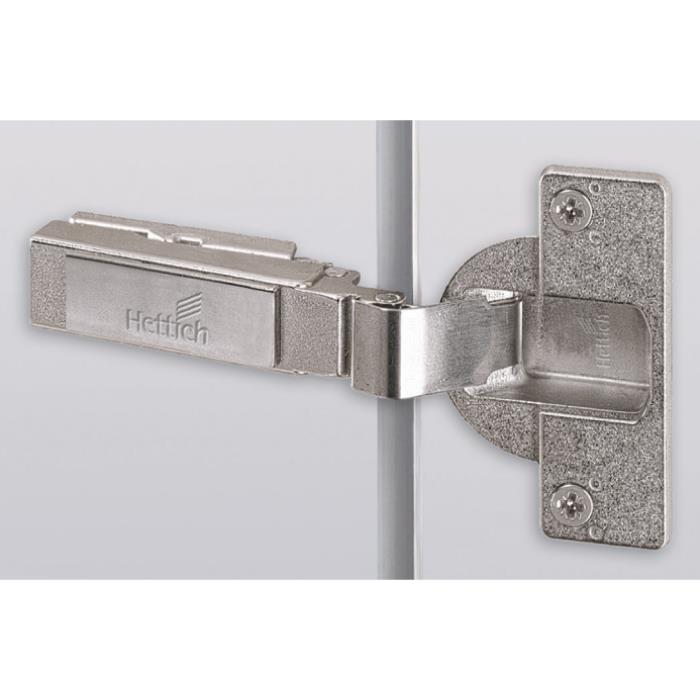

Hettich Intermat 9935, 43 mm, 16K — Inset Door Hinge with Mounting Plate
Overview
The Hettich Intermat 9935 is a nickel-plated, die-cast zinc concealed cabinet hinge designed for inset door applications on cabinets and furniture. It comes with a screw-on mounting plate and is built for doors ranging from 16 mm to 43 mm in thickness. The hinge opens to 95° and carries a 20-year warranty from Hettich.
What It Does
This hinge attaches an inset cabinet or furniture door to the cabinet frame, allowing normal (non-soft-close) opening and closing at a 95° opening angle. It is intended for inset door construction, where the door sits within the cabinet frame rather than overlaying it.
Who It Helps
- Furniture and modular kitchen manufacturers sourcing concealed hinges for inset doors
- Carpenters and fabricators building cabinets with door thickness between 16 mm and 43 mm
- Homeowners and contractors replacing or upgrading cabinet hinges with a durable, nickel-plated fitting
Key Specifications
| Attribute | Detail |
|---|---|
| Brand | Hettich |
| Product Line | Intermat > Intermat 9935 Hinge |
| Door Application | Inset |
| Door Thickness Range | 16 mm – 43 mm |
| Opening Angle | 95° |
| Closing Functionality | Normal Closing |
| Material | Steel, Nickel plated (Nickel-plated die-cast zinc) |
| Finish | Nickel Plated |
| Cup Diameter | 40 mm |
| Cup Depth | 13.7 mm |
| Mounting Options | Clip On |
| Overlay Adjustment | +2 mm / -2 mm |
| Mounting Plate | Screw-on |
| Country of Origin | India |
| Warranty | 20 Years |
| Unit Sold | Pair |
Package Contents
Each pair pack contains 2 hinges and 2 mounting plates.
Pricing and Availability
Prices are listed in Indian Rupees (INR) and are sold as a pair (2 hinges + 2 mounting plates).
Available Variants
The hinge is offered in the following crank/overlay configurations:
- Full Overlay / 0 crank
- Half Overlay / 9.5 crank
- Inset / 16 crank
Buyer Questions This Page Should Answer
What door thickness does this hinge support?
It supports doors from 16 mm to 43 mm in thickness.
Is this hinge for overlay or inset doors?
This specific hinge (Intermat 9935, 16 crank) is designed for inset door applications, though the Intermat 9935 line also offers full overlay and half overlay crank variants.
What opening angle does it provide?
The hinge opens to 95°.
Is it soft-close?
No. This model has normal closing functionality, not a soft-close mechanism.
What material and finish does it use?
It is made of nickel-plated die-cast zinc/steel with a nickel-plated finish, which supports corrosion resistance.
Does it come with a mounting plate?
Yes. Each pair includes 2 hinges and 2 screw-on mounting plates.
How many hinges come in one order?
One unit is sold as a pair — 2 hinges and 2 mounting plates.
What is the warranty?
Hettich provides a 20-year warranty on this hinge.
Where is it manufactured?
Country of origin is India.
How much overlay adjustment is possible?
The hinge allows +2 mm / -2 mm overlay adjustment.
Proof or Trust Signals
- Manufactured by Hettich, an established furniture fittings brand
- Backed by a 20-year warranty
- Precise cup dimensions (40 mm diameter, 13.7 mm depth) documented for compatibility checks
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-09-29T18:46:59.297Z
- Product: Hettich Intermat 9935, For Door Thickness 16 - 43 mm With Mounting Plate, Opening angle 95°
- Brand: Hettich
- Category: Furniture Hinges > Intermat > Intermat 9935 Hinge > Other Categories
- SKU: 9242885_P
- Price: ₹1,064 (MRP ₹1,182)
- Availability: InStock
- Variants: Size: Full Overlay / 0 crank, Size: Half Overlay / 9.5 crank, Size: Inset / 16 crank
