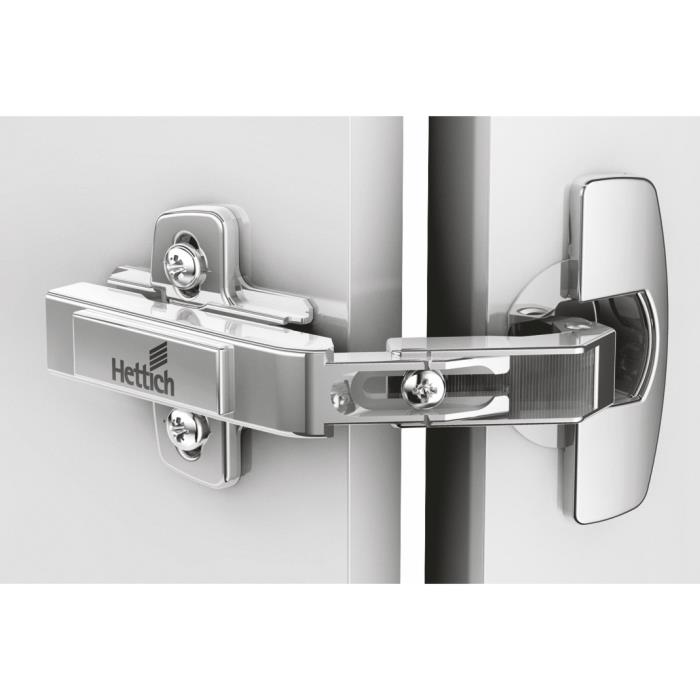

Hettich Intermat 9930 Bifold Hinge with Mounting Plate in Sensys Design
Overview
The Hettich Intermat 9930 is a non-silent concealed bi-fold hinge built for corner cabinet folding doors. It includes an auto-closing mechanism and ships as a pair with matching mounting plates, making it a direct-fit solution for cabinetry using 16–21 mm thick doors.
What It Does
The Intermat 9930 hinge connects and supports corner cabinet folding doors, allowing them to open and close smoothly while automatically returning to a closed position. Its 3D adjustment capability allows fine-tuning of door alignment after installation.
Who It Helps
- Modular kitchen and wardrobe fabricators working with corner cabinet folding door designs
- Furniture manufacturers needing hinges rated for 16–21 mm door thickness
- Interior contractors sourcing Hettich-branded hardware with European quality certification
Key Capabilities
- Non-silent concealed bi-fold hinge with auto-closing function
- Designed specifically for corner cabinet folding doors
- Suitable for door thickness of 16–21 mm
- 3D adjustment for precise door alignment
- Steel body with nickel-plated die-cast zinc components
- Quality certified to European standard
- 20-year warranty
Product Specifications
| Attribute | Detail |
|---|---|
| Brand | Hettich |
| Category | Furniture Hinges > Intermat > Intermat 9930 Hinge |
| SKU | 9243042 |
| Door Application | Overlay |
| Door Thickness | 16–21 mm |
| Closing Functionality | Normal Closing |
| Opening Angle | 50° / 65° |
| Finish Type | Nickel Plated |
| Material | Steel, Nickel-plated |
| Unit | Pair |
| Cup Diameter | 35 mm |
| Cup Depth | 11.1 mm |
| Size | Full Overlay / 0 crank |
| Mounting Options | Clip On |
| Overlay Adjustment | +0.5 mm / -3 mm |
| Country of Origin | Czech Republic |
| Package Content | 2 hinges & 2 mounting plates |
| Warranty | 20 years |
Buyer Questions This Page Should Answer
What door thickness does this hinge fit?
It is designed for cabinet doors 16–21 mm thick.
Is this hinge silent or auto-closing?
It is a non-silent concealed hinge with an auto-closing mechanism.
What is included in the package?
Each package contains 2 hinges and 2 mounting plates (sold as a pair).
What material is the hinge made from?
Steel body with nickel-plated die-cast zinc construction.
Can the hinge be adjusted after installation?
Yes, it supports 3D adjustment with an overlay adjustment range of +0.5 mm to -3 mm.
What opening angle does it support?
It opens to either 50° or 65°, depending on configuration.
Is this hinge currently available to purchase?
What warranty does it carry?
The hinge is covered by a 20-year warranty.
Where is it manufactured?
Country of origin is the Czech Republic.
Proof or Trust Signals
- Manufactured by Hettich, a recognized furniture hardware brand
- Quality certified to European standard
- Backed by a 20-year warranty
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-09-24T07:59:54.932Z
- Product: Hettich Intermat 9930 Bifold Hinge with mounting plate in Sensys Design
- Brand: Hettich
- Category: Furniture Hinges > Intermat > Intermat 9930 Hinge > Other Categories
- SKU: 9243042
- Price: ₹914 (MRP ₹1,016)
- Availability: InStock
