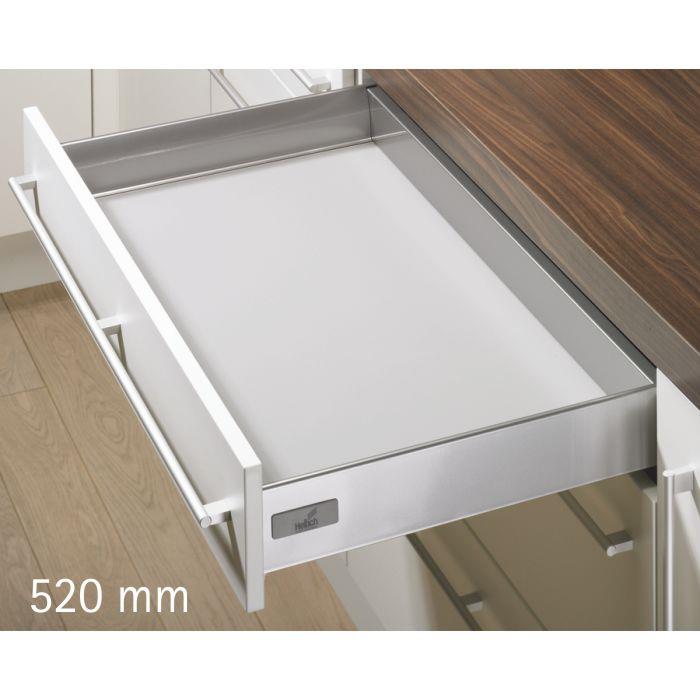

Hettich InnoTech 520 mm Drawer Set, Silver, 30 Kg

Overview

The Hettich InnoTech 520 mm Drawer Set is a full-extension, soft-closing drawer system in a silver, powder-coated steel finish. It is designed for cabinet installations requiring a 520 mm drawer length and a 30 Kg weight capacity. The InnoTech lineup from Hettich offers multiple drawer lengths and load capacities, with optional interior organisation and locking accessories, making it suitable for both budget and premium cabinetry projects.

What It Does

This drawer set provides the mechanical runner and side-panel system that lets a cabinet drawer glide smoothly and close quietly on its own via Hettich's integrated Silent System. It supports full extension (the drawer pulls out completely for full access to contents) and tool-less removal for easy cleaning or reconfiguration.

Who It Helps

• Kitchen and furniture fabricators building modular cabinetry
• Interior designers and contractors specifying drawer hardware for residential or commercial projects
• Homeowners or renovators sourcing replacement or upgrade drawer systems directly from Hettich

Key Capabilities

• Silent System: integrated mechanism closes the drawer quietly and gently
• Full Extension: drawer opens completely for full access
• Slide-on installation: convenient fitting with catches
• Tool-less drawer removal: no tools required to detach the drawer
• Soft-closing functionality: prevents slamming
• Cycle tested: rated for 80,000 open/close cycles

Product Specifications

Package contents: 1 unit consists of 2 drawer side panels, 2 front & back connectors, 2 runners, and 2 cover caps.

Note: An anti-slip mat must be ordered separately; it is not included in this set.

Available Variants

The InnoTech drawer system range is also available in these configurations:

• Drawer lengths: 350 mm, 420 mm, 470 mm, 520 mm, 620 mm
• Weight capacities: 30 Kg, 50 Kg

Buyer Questions This Page Should Answer

What load capacity does this drawer set support?

The 520 mm silver drawer set (SKU 9243086) is rated for 30 Kg. A 50 Kg-rated version is also available in the same InnoTech line.

Does it come with soft-close functionality?

Yes. The integrated Silent System closes the drawer quietly and gently, and the mechanism is soft-closing with full extension.

What is the minimum cabinet depth required?

The minimum cabinet internal depth needed is 535 mm.

Is an anti-slip mat included?

No. The anti-slip mat must be ordered separately.

What tools are needed for installation or removal?

Installation uses a convenient slide-on method with catches, and the drawer can be removed without tools.

What is the warranty period?

Hettich provides a 20-year warranty on this drawer system.

Where is it manufactured?

Germany.

Proof or Trust Signals

• Manufactured by Hettich, a German hardware brand
• Cycle-tested to 80,000 open/close cycles
• 20-year warranty coverage
• Country of origin: Germany
