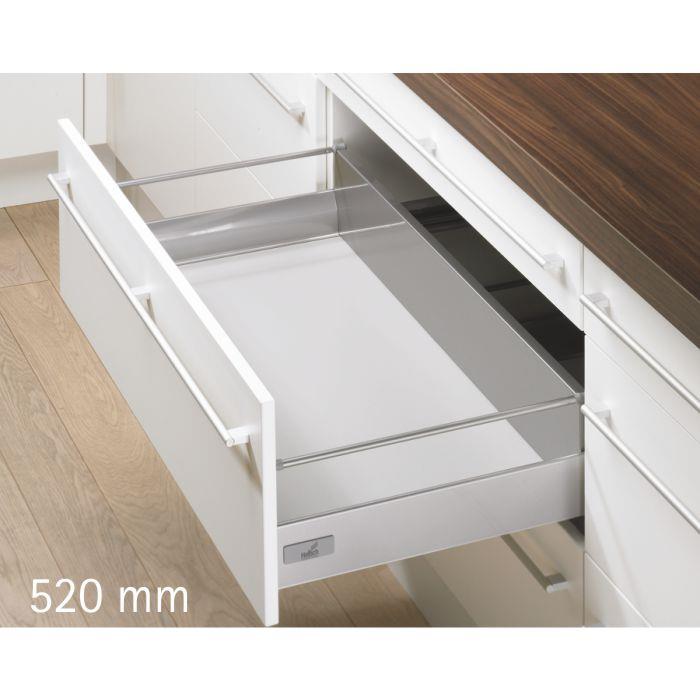

Hettich InnoTech 520 mm (50 Kg) Full Extension Silent Pot & Pan Drawer System

Overview

The Hettich InnoTech is a full-extension, soft-closing pot and pan drawer system designed for kitchen cabinetry. It uses an integrated Silent System that closes the drawer quietly and gently, is built from powder-coated steel in a silver finish, and supports slide-on installation with tool-less drawer removal. This specific variant has a 520 mm drawer length and a 50 Kg weight capacity.

What It Does

• Provides full-extension drawer movement so the entire drawer pulls out for complete access to stored items.
• Closes automatically and silently via the built-in Silent System soft-close mechanism, preventing slamming.
• Supports heavy kitchen loads such as pots, pans, and cookware up to 50 Kg.
• Allows tool-less drawer removal for easy cleaning and maintenance.
• Installs using a convenient slide-on method with catches, reducing installation time.

Who It Helps

• Kitchen cabinet manufacturers and modular kitchen fabricators sourcing drawer hardware.
• Interior designers and architects specifying heavy-duty, soft-close drawer systems.
• Homeowners and contractors upgrading kitchen storage with quiet-closing, high-capacity drawers.

Key Capabilities and Specifications

Package Contents

One unit consists of:

• 2 drawer side panels
• 2 front and back connectors
• 2 runners
• 2 cover caps
• 2 railings
• 2 railing connectors

Note: An anti-slip mat must be ordered separately; it is not included in this set.

Available Variants

The InnoTech Pot & Pan Drawer System line is also available in other configurations:

• Drawer Lengths: 350 mm, 420 mm, 470 mm, 520 mm, 620 mm
• Drawer Heights: 144 mm, 176 mm
• Weight Capacities: 30 Kg, 50 Kg

Buyer Questions This Page Should Answer

What weight can this drawer system hold?

Up to 50 Kg, making it suitable for heavy pots and pans.

Does it close on its own?

Yes. The integrated Silent System closes the drawer quietly and gently without manual push, using a soft-closing mechanism.

What cabinet depth do I need?

A minimum cabinet internal depth of 535 mm is required for the 520 mm drawer length variant.

Is installation difficult?

No. It uses a slide-on installation method with catches, and the drawer can be removed without tools for cleaning or servicing.

What is included in the box?

Two drawer side panels, two front and back connectors, two runners, two cover caps, two railings, and two railing connectors. An anti-slip mat is sold separately.

How durable is this system?

It has been cycle tested to 80,000 open-close cycles and carries a 20-year warranty.

Where is it manufactured?

Germany.

What finish options are available?

This variant comes in a silver, powder-coated steel finish.

Proof or Trust Signals

• Backed by a 20-year warranty.
• Cycle tested to 80,000 open-close operations.
• Manufactured in Germany under the Hettich brand, a recognized name in furniture fittings and drawer systems.
