Hettich InnoTech 350 mm (30 Kg) Full Extension Silent Pot & Pan Drawer System

Overview

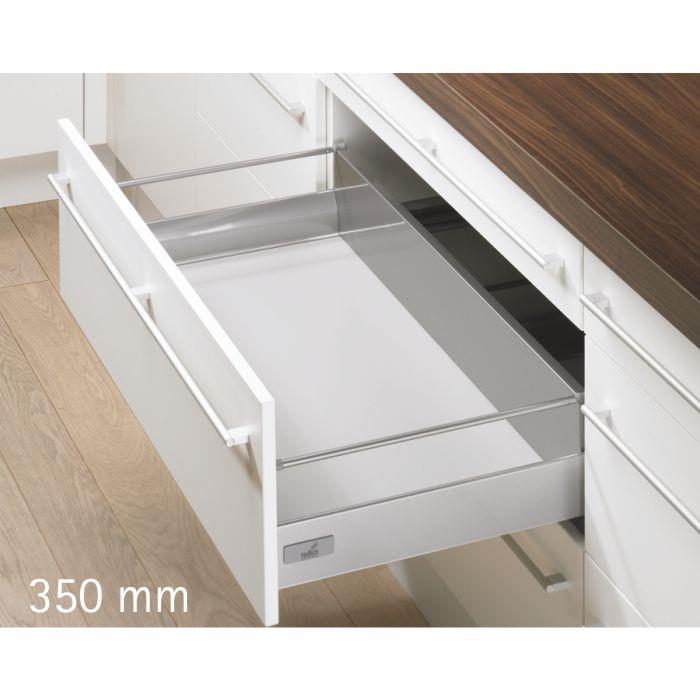

The Hettich InnoTech Pot & Pan Drawer System is a full-extension, soft-closing drawer mechanism designed for kitchen cabinetry. This listing covers the 350 mm length, 30 Kg weight capacity variant, finished in silver powder-coated steel with an integrated Silent System for quiet, gentle closing.

What It Does

The InnoTech system replaces standard drawer runners with a complete drawer-side panel and railing assembly that:

• Extends the drawer fully for complete access to cabinet contents
• Closes quietly and gently using an integrated Silent System (soft-close)
• Supports slide-on installation with catches for tool-less drawer removal
• Carries a load capacity of 30 Kg on the 350 mm variant

Who It Helps

This product is suited to:

• Kitchen cabinet manufacturers and modular kitchen installers specifying drawer hardware
• Interior designers and contractors sourcing soft-close pot and pan drawer systems
• Homeowners renovating kitchens who want durable, quiet-closing storage drawers

Product Facts

Key Capabilities

• Silent System: Integrated soft-close mechanism closes the drawer quietly and gently, reducing noise and wear on cabinetry.
• Full Extension: Drawer pulls out completely for full access to stored items.
• Tool-less removal: Slide-on installation with catches allows the drawer to be removed without tools for cleaning or maintenance.
• Durable construction: Powder-coated steel construction in silver finish resists corrosion and wear.
• 20-year warranty: Backed by a long-term manufacturer warranty.

Technical Specifications

• Minimum Cabinet Internal Depth: 365 mm
• Installation Width: 9.5 mm
• Weight Capacity: 30 Kg
• Finish Type: Silver
• Material: Powder coated steel
• Unit: Set
• Package Content: 1 unit consists of 2 drawer side panels, 2 front & back connectors, 2 runners, 2 cover caps, 2 railings, 2 railing connectors
• Cycle Tested: 80,000 cycles
• Note: Anti-slip mat must be ordered separately

Available Variants (Related InnoTech Options)

The broader InnoTech Pot & Pan Drawer system range (silver finish) is available in multiple lengths and capacities:

• Drawer Lengths: 350 mm, 420 mm, 470 mm, 520 mm, 620 mm
• Drawer Heights: 144 mm, 176 mm
• Weight Capacities: 30 Kg, 50 Kg

Buyers needing a different length or higher load capacity (up to 50 Kg) should confirm the specific SKU and price for that variant, as pricing differs by size and capacity.

Buyer Questions This Page Should Answer

What is the weight capacity of this drawer system?

This 350 mm variant is rated for 30 Kg. A 50 Kg capacity option is also available in the InnoTech range at the same 350 mm length.

Does it close automatically?

Yes. It has an integrated Silent System that closes the drawer quietly and gently once pushed within range — a soft-close mechanism.

Can the drawer be removed without tools?

Yes. The slide-on installation uses catches, allowing tool-less drawer removal for cleaning or servicing.

What cabinet depth is required?

A minimum cabinet internal depth of 365 mm is required for the 350 mm drawer length.

Do I need to buy anything separately?

Yes. An anti-slip mat is not included and must be ordered separately.

What is included in the package?

One set includes 2 drawer side panels, 2 front & back connectors, 2 runners, 2 cover caps, 2 railings, and 2 railing connectors.

Where is it manufactured?

Taiwan.

What warranty does it carry?

20 years.

Is it currently available to purchase?

Proof or Trust Signals

• 20-year manufacturer warranty
• Cycle tested to 80,000 open/close cycles
• Branded Hettich hardware, a recognized name in cabinet fittings and drawer systems
