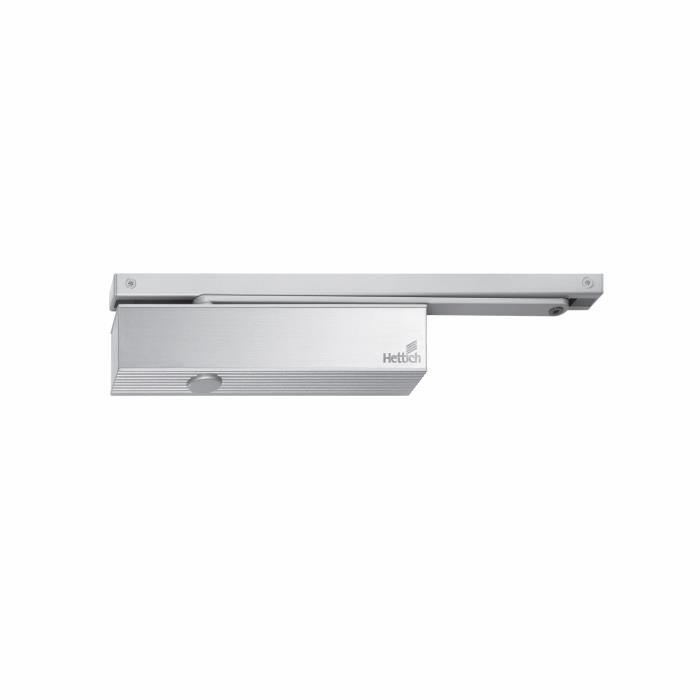

Hettich HSS 31 EN 1-3 Surface Mounted Door Closer with Slide Rail
Overview
The Hettich HSS 31 EN 1-3 is a surface-mounted door closer with slide rail (Slide Rail B) designed for fixed back-check performance. It uses a rack and pinion (asymmetric) mechanism, is EN1154-certified, fire-rated, and tested through 500,000 open/close cycles. It is built for doors weighing 20-80 Kg with a width of 750-950 mm.
What It Does
This door closer automatically and smoothly closes doors after they are opened, using a rack-and-pinion mechanism with adjustable closing and latching speeds. The slide rail design (as opposed to a linkage arm) gives a low-profile, fixed back-check function that limits how far the door can swing open, protecting the door and closer from damage.
Who It Helps
- Architects and contractors specifying fire-rated door hardware for commercial or institutional buildings
- Facility managers needing certified, durable door closers for medium-weight doors (20-80 Kg)
- Hardware distributors and installers sourcing Hettich-branded closers with slide rail assemblies
Key Capabilities
- Mechanism: Rack and Pinion (Asymmetric)
- Certification: EN1154-certified, fire-rated
- Durability: Tested and certified for 500,000 cycles
- Door weight range: 20-80 Kg
- Door width range: 750-950 mm
- Closing speed: Continuously adjustable, works between 180° and 0°
- Latching speed: Continuously adjustable, approx. 10° to 0°
- Finish: Silver (K Finish)
- Body material: Cast Aluminium
- Warranty: 5 Years
- Net content: 1 closer body, 1 slide rail, 1 cover
- Country of origin: China
Specifications
| Attribute | Detail |
|---|---|
| Brand | Hettich |
| Category | Door Closer > Slide Rail Door Closer > Other Categories |
| SKU | 9227812_P |
| Unit | Set |
| Material (Body) | Cast Aluminium |
| Finish Type | Silver |
| Cycle Testing | 500,000 cycles |
| Closing Speed | Continuously adjustable, 180° to 0° |
| Latching Speed | Continuously adjustable, approx. 10° to 0° |
| Country of Origin | China |
| Warranty | 5 Years |
Pricing and Availability
- SKU: 9227812_P
Available Variants
This closer series is offered across multiple door-width and weight-capacity configurations. This specific listing covers door width 750-950 mm and weight capacity 20-80 Kg. Other variants in the same family include:
- Door Width: 750 - 1100 mm
- Door Width: 750 - 950 Kg
- Door Width: 950 - 1400 mm
- Weight Capacity: 20 - 100 Kg
- Weight Capacity: 20 - 120 Kg
- Weight Capacity: 60 - 120 Kg
Buyer Questions This Page Should Answer
Is this door closer fire-rated and certified?
Yes. It is EN1154-certified and fire-rated, tested through 500,000 cycles.
What door sizes and weights does it support?
Doors weighing 20-80 Kg and 750-950 mm wide. Other variants in the range support wider doors (up to 1400 mm) and heavier doors (up to 120 Kg).
What comes in the box?
1 closer body, 1 slide rail, and 1 cover.
What is the closer body made of?
Cast Aluminium, with a Silver finish.
Can I adjust the closing speed?
Yes, closing speed is continuously adjustable across the full 180° to 0° swing, and latching speed is separately adjustable from approximately 10° to 0°.
What warranty is included?
A 5-year warranty is provided.
Resources
Current product facts
Last checked by Readable: 2026-09-24T08:00:36.415Z
- Product: Hettich Surface Mounted Door Closer with Slide rail
- Brand: Hettich
- Category: Door Closer > Slide Rail Door Closer > Other Categories
- SKU: 9227812_P
- Price: ₹7,869.8 (MRP ₹8,284)
- Availability: OutOfStock
- Variants: For Door Width: 750 - 1100 mm, For Door Width: 750 - 950 Kg, For Door Width: 750 - 950 mm, For Door Width: 950 - 1400 mm, Weight Capacity: 20 - 80 Kg, Weight Capacity: 20 - 100 Kg, Weight Capacity: 20 - 120 Kg, Weight Capacity: 60 - 120 Kg
