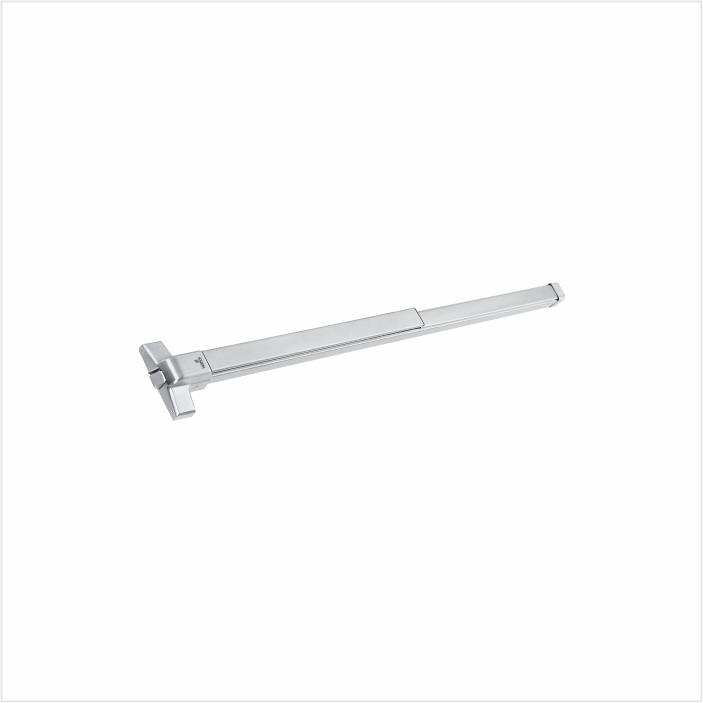

Hettich HPN 3000 RIM Touch Bar – 1-Point Locking, Fire Rated
Overview
The Hettich HPN 3000 RIM is a touch bar panic device designed for single-leaf emergency exit doors. It provides a single-point locking mechanism operated by pressing the touch bar, allowing fast, intuitive evacuation during emergencies. The fire-rated steel construction makes it suitable for use in public buildings that must comply with life-safety and emergency-exit regulations.
It belongs to Hettich's Door Locking Solution range, specifically: Door Locking Solution > Euro Profile Cylinder > Panic Bar Solution (For Emergency Exit Door) > Single Door Panic Bar.
What It Does
- Enables quick, single-action emergency exit by pushing the touch bar, which releases a single-leaf, 1-point locking mechanism.
- Fire-rated steel build allows use on fire-rated door assemblies.
- Designed for compliance with emergency-exit safety requirements in public and commercial spaces.
- Fixing axis of 1000 mm supports standard door installations within the specified size range.
Who It Helps
- Facility managers and building owners who need code-compliant emergency exit hardware for public spaces.
- Architects, contractors, and door hardware installers specifying panic bar solutions for steel, wooden, or profile-framed doors.
- Safety and compliance teams responsible for fire-rated emergency exit systems.
Key Product Facts
| Attribute | Detail |
|---|---|
| Brand | Hettich |
| Model | HPN 3000 RIM (Panic Bar Solution) |
| SKU | 9228616 |
| Mode of Operation | Touch bar |
| Lock Type | Single-leaf, 1-point locking |
| Fixing Axis | 1000 mm |
| Max. Door Height | 2400 mm |
| Max. Door Width | 1100 mm |
| Door Thickness Range | 45–50 mm |
| Material | Steel |
| Finish | Silver plated |
| Door Type Compatibility | Steel, wooden, profile framed |
| Fire Rated | Yes |
| Installation | Screw-on or screw-through version |
| Handing | Left/right — same version (non-handed) |
| Warranty | 5 years |
| Net Content | 1 set (panic bar) |
| Country of Origin | China |
Buyer Questions This Page Should Answer
Is the HPN 3000 RIM fire-rated?
Yes. It is built for fire-rated door applications, supporting compliance with emergency-exit safety regulations.
What type of locking mechanism does it use?
A single-leaf, 1-point locking mechanism operated via a touch bar — pressing the bar releases the lock for immediate exit.
What door sizes and types is it compatible with?
It fits doors up to 2400 mm height and 1100 mm width, with thickness between 45–50 mm. It is compatible with steel, wooden, and profile-framed doors.
Does it require a handed (left/right) version?
No. The same unit works for both left and right door configurations.
How is it installed?
It supports either a screw-on or screw-through mounting version, with a 1000 mm fixing axis.
What warranty does it carry?
A 5-year warranty is included.
Is it currently available to purchase?
What is the country of origin?
China.
Proof or Trust Signals
- Sold under the Hettich brand, a recognized manufacturer of door and furniture hardware.
- Backed by a 5-year warranty.
- Positioned within Hettich's structured Panic Bar Solution category for emergency exit doors, indicating fit within a broader compliant hardware system.
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-09-24T08:01:00.730Z
- Product: Hettich HPN 3000 RIM: 1 Point Locking, Touch bar, Steel Silver Painted, Fire Rated
- Brand: Hettich
- Category: Door Locking Solution > Euro Profile Cylinder > Panic Bar Solution (For Emergency Exit Door) > Single Door Panic Bar
- SKU: 9228616
- Price: ₹8,303 (MRP ₹10,379)
- Availability: OutOfStock
