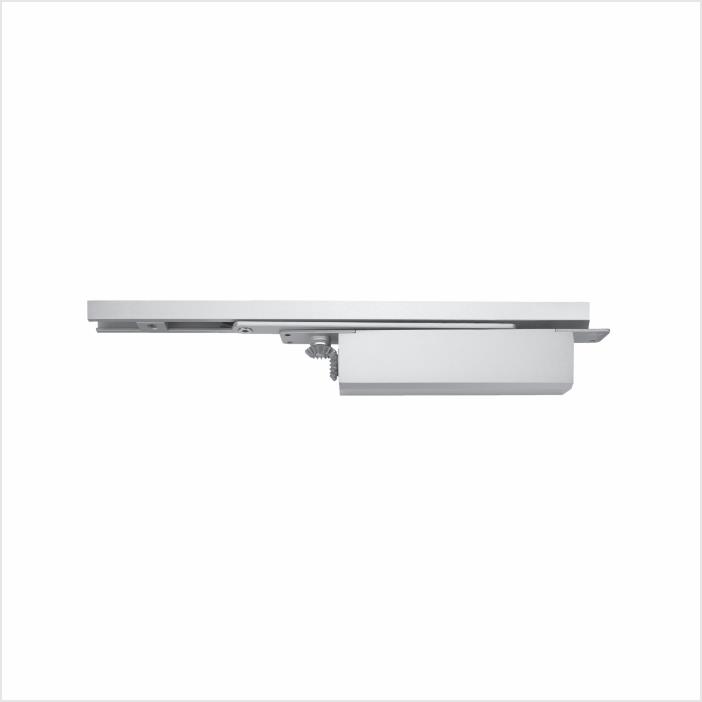

Hettich HCS 400 with Hold-Open Slide Rail (EN 2-4) - Concealed Door Closer
Overview
The Hettich HCS 400 is a concealed (invisible) door closer designed for heavy commercial and residential doors. It uses a CAM action mechanism and a hold-open slide rail, allowing the door to stay open at a set position when needed. Because the closer body is hidden within the door and frame, it preserves a clean architectural line while still delivering controlled, silent closing.
It is EN1154 certified, fire rated, and tested for 500,000 operating cycles, making it suitable for fire-rated door assemblies and high-traffic entryways where reliability and code compliance matter.
What It Does
- Closes doors smoothly and silently after use, with an adjustable closing and latching speed.
- Holds the door open at a selected position via the EN 2-4 hold-open slide rail.
- Operates through a door opening angle of up to 120°.
- Remains fully concealed within the door and frame, with no visible arm or body on the door face.
Who It Helps
- Architects and specifiers needing a fire-rated, EN1154-certified door closer for commercial or institutional fire doors.
- Facility managers and contractors fitting heavy doors (80-120 kg) in offices, hotels, hospitals, or retail spaces.
- Fitters and hardware dealers sourcing a tested, high-cycle door closer for doors 850-1100 mm wide.
- Homeowners or designers wanting a hidden door closer for a minimalist door aesthetic.
Key Product Facts
| Attribute | Detail |
|---|---|
| Brand | Hettich |
| Category | Door Closer > Concealed Door Closer |
| SKU | 9250843 |
| Country of Origin | China |
| Body Material | Cast Aluminium |
| Finish | Silver |
| Warranty | 5 Years |
Technical Specifications
| Specification | Value |
|---|---|
| Mechanism | CAM Action |
| Door Weight Capacity | 80 - 120 kg |
| Door Width | 850 - 1100 mm |
| Minimum Door Thickness | 40 mm |
| Door Opening Angle | Up to 120° |
| Closing Speed | Continuously adjustable, approx. 120° to 0° |
| Latching Speed | Adjustable, between 10° to 0° |
| Cycle Testing | 500,000 cycles tested and certified |
| Certification | EN1154 |
| Fire Rating | Fire rated |
| Hold-Open Feature | EN 2-4 hold-open slide rail |
| Unit | Set (1 door closer set per package) |
Buyer Questions This Page Should Answer
Is this door closer suitable for fire doors?
Yes. It is EN1154 certified and fire rated, meeting requirements commonly specified for fire door assemblies.
What size and weight of door does it support?
Doors weighing 80-120 kg and 850-1100 mm wide, with a minimum door thickness of 40 mm.
Does it stay open on its own?
Yes. It includes an EN 2-4 hold-open slide rail that lets the door remain open at a chosen position rather than closing automatically every time.
How durable is it rated for?
It is tested and certified for 500,000 open-close cycles.
Is the closer visible once installed?
No. It is a concealed design, hidden within the door and frame, so no closer body or arm is visible on the door face.
What is the closer made of and what finish does it come in?
The body is cast aluminium, finished in silver.
What warranty is provided?
A 5-year warranty is offered on this product.
Proof or Trust Signals
- EN1154 certification for door closer devices.
- Fire-rated for use on fire door assemblies.
- 500,000-cycle durability testing and certification.
- 5-year manufacturer warranty.
- Sold under the Hettich brand, a recognized name in door and furniture fittings.
Resources or Next Steps
Current product facts
- Product: Hettich HCS 400 with hold open Slide rail: EN 2-4, For Door Width 850-1100 mm and Door Weight 80-120 kg; EN1154 Certified; Fire rated; 500,000 cycle tested (Min. Door Thickness - 4
- Brand: Hettich
- Category: Door Closer > Concealed Door Closer > Other Categories
- SKU: 9250843
- Price: ₹17,999
- Availability: InStock
