Hettich HCS 385: EN 2-4, With Hold Open Slide Rail - Concealed Door Closer
Overview

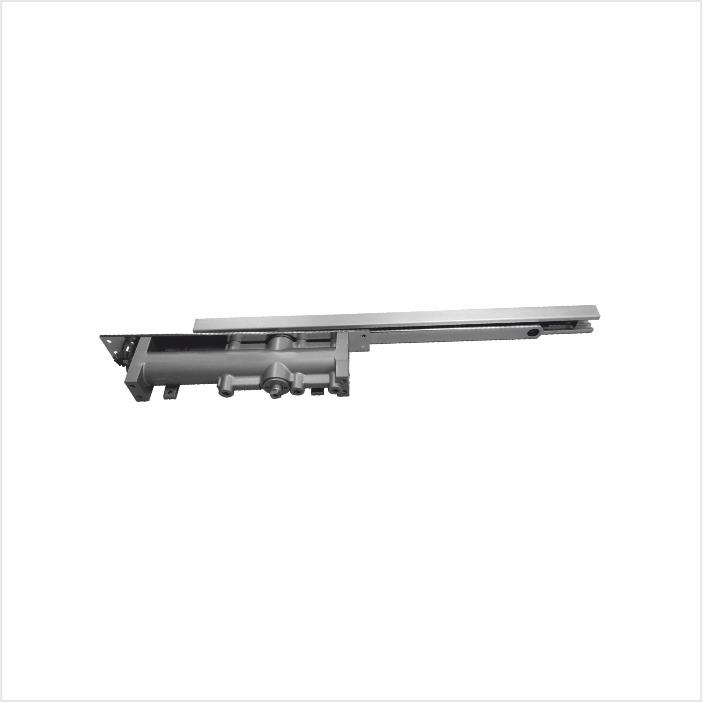

The Hettich HCS 385 is a concealed (invisible) door closer designed for heavy, wide doors. It uses a Rack and Pinion (Symmetric) mechanism and includes a hold-open slide rail, allowing the door to stay open at a set position instead of closing automatically every time. Because the mechanism is fully concealed within the door and frame, it preserves a clean architectural look while still delivering controlled, silent closing.
- Brand: Hettich
- Category: Door Closer > Concealed Door Closer
- SKU: 9250955
- Country of Origin: Hong Kong
- Warranty: 5 years
What It Does
The HCS 385 controls the closing motion of a door after it has been opened, using a hidden rack-and-pinion mechanism instead of a visible surface-mounted arm. The hold-open slide rail feature lets the door remain open at approximately 120° when needed (for example, during moving furniture or deliveries), rather than closing automatically. Closing speed and latching speed are both independently adjustable, so installers can tune the door's final approach and softer near-close behavior.
Who It Helps
- Architects and interior designers who need a door closer that stays hidden and does not disrupt door or frame aesthetics.
- Facility owners and contractors installing or replacing closers on heavy commercial or high-traffic doors.
- Hardware buyers sourcing a closer rated for wide, heavy doors (850-1100 mm width, 80-100 kg weight) where standard-duty closers are undersized.
Key Capabilities
| Attribute | Specification |
|---|---|
| Mechanism | Rack and Pinion (Symmetric) |
| Door weight range | 80-100 kg |
| Door width range | 850-1100 mm |
| Minimum door thickness | 47 mm |
| Door opening angle | 120° |
| Hold-open function | Yes, via slide rail |
| Closing speed | Continuously adjustable, approx. 120° to 0° |
| Latching speed | Adjustable, works between 10° and 0° |
| Body material | Cast Aluminium |
| Finish | Silver |
| Net content | 1 door closer set |
| Warranty | 5 years |
Buyer Questions This Page Should Answer
What door sizes is the HCS 385 built for?
Doors between 850 mm and 1100 mm wide, weighing 80-100 kg, with a minimum door thickness of 47 mm.
Does it have a hold-open feature?
Yes. It includes a hold-open slide rail so the door can be held open at approximately 120° instead of closing automatically.
Is the closing speed adjustable?
Yes. Closing speed is continuously adjustable from about 120° down to 0°, and latching speed is separately adjustable between 10° and 0° for a controlled final close.
What is it made of and what finish does it come in?
The body is cast aluminium, finished in silver.
Where is it manufactured?
Hong Kong.
What warranty does it carry?
A 5-year warranty from Hettich.
Is this door closer visible once installed?
No. It is a concealed door closer, meaning the mechanism is hidden within the door and frame rather than mounted on the surface, which preserves a cleaner look.
What is included in the package?
One door closer set (net content: 1 number).
Proof or Trust Signals
- Manufactured by Hettich, a long-established hardware fittings brand.
- 5-year warranty backing the product.
- Detailed engineering specifications (adjustable closing/latching speed, defined door weight and width ranges) indicating a purpose-built commercial-grade closer rather than a generic fitting.
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-09-24T08:00:43.733Z
- Product: Hettich HCS 385: EN 2-4, With Hold Open Slide rail; For Door Width 850-1100 mm and Door Weight 80-100 kg (Min. Door Thickness - 47 mm) -Concealed Door Closer
- Brand: Hettich
- Category: Door Closer > Concealed Door Closer > Other Categories > Festive Magic Offer
- SKU: 9250955
- Price: ₹9,955 (MRP ₹9,999)
- Availability: OutOfStock
