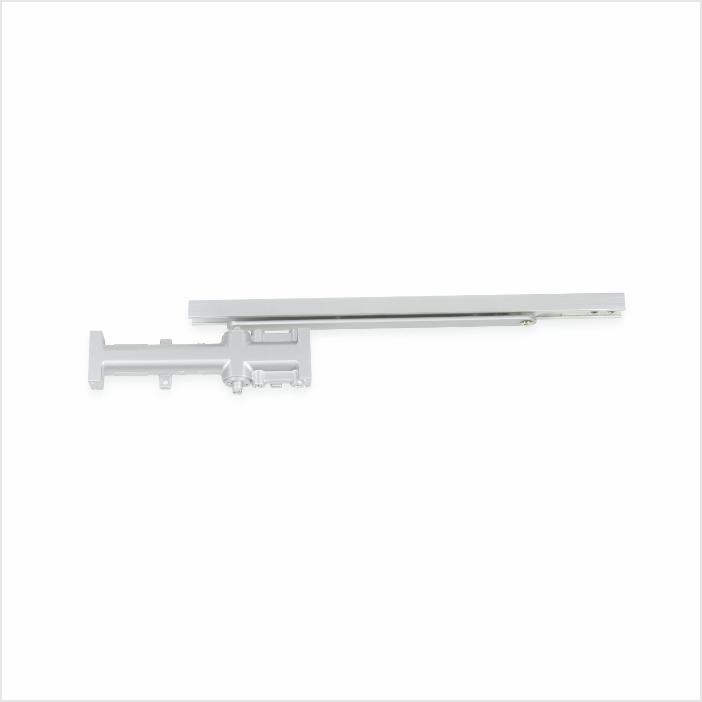

Hettich HCS 380: EN 3 Concealed Door Closer with Hold-Open Slide Rail
Overview
The Hettich HCS 380 is a concealed (invisible) door closer designed for doors up to 950 mm wide and 60 kg in weight. It uses a Rack and Pinion (Symmetric) mechanism to deliver smooth, silent closing while keeping the closer hidden within the door, preserving a clean aesthetic. It includes a hold-open slide rail function, allowing the door to be held open at a set position.
What It Does
- Closes doors automatically and silently using a concealed rack-and-pinion mechanism
- Supports a hold-open feature via the slide rail, keeping the door open when needed
- Provides continuously adjustable closing speed and adjustable latching speed for controlled, customized operation
- Hidden installation keeps the mechanism out of view, maintaining a clean door and frame appearance
Who It Helps
- Architects and interior designers specifying door hardware where visible closers are undesirable
- Fabricators and contractors installing doors in commercial or high-traffic residential spaces
- Facility managers needing a durable, tested closer for doors up to 60 kg
Key Capabilities and Specifications
| Attribute | Detail |
|---|---|
| Brand | Hettich |
| Category | Door Closer > Concealed Door Closer |
| SKU | 9227824 |
| Mechanism | Rack and Pinion (Symmetric) |
| Max. Door Weight | 60 kg |
| Door Width Range | 750 mm – 950 mm |
| Min. Door Thickness | 40 mm |
| Door Opening Angle | 120° |
| Closing Speed | Continuously adjustable, approx. 120° to 0° |
| Latching Speed | Adjustable, works between 10° to 0° |
| Cycle Testing | Tested & certified for 200,000 cycles (in-house lab) |
| Finish | Silver |
| Material (Body) | Cast Aluminium |
| Warranty | 5 Years |
| Country of Origin | China |
| Net Content | 1 door closer set |
| Unit | Set |
Buyer Questions This Page Should Answer
What is the price of the Hettich HCS 380?
What door sizes and weights does this closer support?
It is rated for doors between 750 mm and 950 mm wide, up to 60 kg in weight, with a minimum door thickness of 40 mm.
Does it hold the door open?
Yes. This variant includes a hold-open slide rail, allowing the door to be held open at a chosen position rather than closing automatically every time.
Is the closer visible once installed?
No. It is a concealed door closer, meaning the mechanism is hidden inside the door and frame, leaving no visible hardware on the door face.
How durable is it?
The closer has been tested and certified for 200,000 cycles in an in-house lab, and it carries a 5-year warranty.
What is the closer made of and what finish does it come in?
The body is Cast Aluminium with a Silver finish.
Can the closing behavior be adjusted?
Yes. Closing speed is continuously adjustable from approximately 120° to 0°, and latching speed is adjustable between 10° and 0°, allowing installers to fine-tune door behavior.
Proof or Trust Signals
- Manufactured under the Hettich brand
- Independently stated cycle testing: 200,000 cycles, verified in-house
- 5-year warranty backing the product
- EN 3 rated concealed door closer classification
Resources or Next Steps
Current product facts
- Product: Hettich HCS 380: EN 3, with hold open slide rail; For door width 950 mm and Door Weight 60 kg (Min. Door Thickness - 40 mm) -Concealed Door Closer
- Brand: Hettich
- Category: Door Closer > Concealed Door Closer > Other Categories
- SKU: 9227824
- Price: ₹6,163
- Availability: OutOfStock
