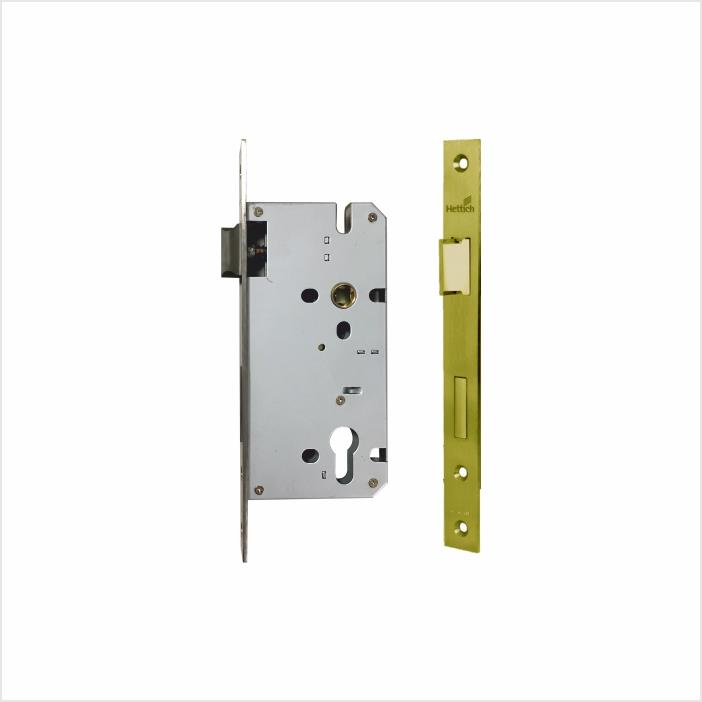

Hettich HBS 31 FSL Sash Lock – DIN Left/Right, CTC 85, 55 mm Backset, AB Finish

Overview

The Hettich HBS 31 FSL is a mortise lock body (sash lock) designed for wooden single-leaf doors in residential and commercial settings. It is a PZ-85 lock type intended for handle/knob execution, with a left/right-handed version available in the same model, so one unit works on either door swing direction.

What It Does

This sash lock fits inside the door (mortise-style) for discreet, built-in security. It includes a closed lock case made of galvanized steel and a stainless steel face plate, suited for doors with high usage frequency. A shiftable latch bolt lets installers change the bolt direction without opening the lock case, simplifying on-site fitting.

Who It Helps

Key Specifications

AttributeDetail
BrandHettich
CategoryDoor Locking Solution > Mortise Lock Body
SKU9250131
Lock TypeSash Lock (PZ-85, handle/knob execution)
Backset55 mm
Centre to Centre (CTC)85 mm
Face PlateStainless steel, 23 mm width
Hub8 mm
Lock CaseGalvanized steel, closed case
FinishAB (Antique Brass)
Door TypeWooden
Applicable ForSingle leaf door
Fire RatedNo
Warranty5 years

Buyer Questions This Page Should Answer

Does this lock work on both left and right-handed doors?

Yes. The left/right handed version is built into the same model (DIN left/right), and the latch bolt is shiftable without opening the lock case, so installers can adjust direction on site.

What backset and centre-to-centre (CTC) does this lock use?

55 mm backset with 85 mm centre-to-centre (CTC) spacing — a common configuration for mortise locks on wooden doors.

What is the lock case and face plate made of?

The lock case is galvanized steel and the face plate is stainless steel, with a face plate width of 23 mm and an 8 mm hub.

Is this lock suitable for high-frequency doors?

Yes. It is specified for doors with high frequency of use.

What finish does this lock come in?

AB — Antique Brass finish.

Is it fire rated?

No, this lock is not fire rated.

What is the warranty?

5 years.

Is it currently available to buy?
