Hettich HBN-14 Mortise Flush Door Hinge – Square Edge, Z-Hole Pattern, 160Kg Capacity, SS Finish

Overview

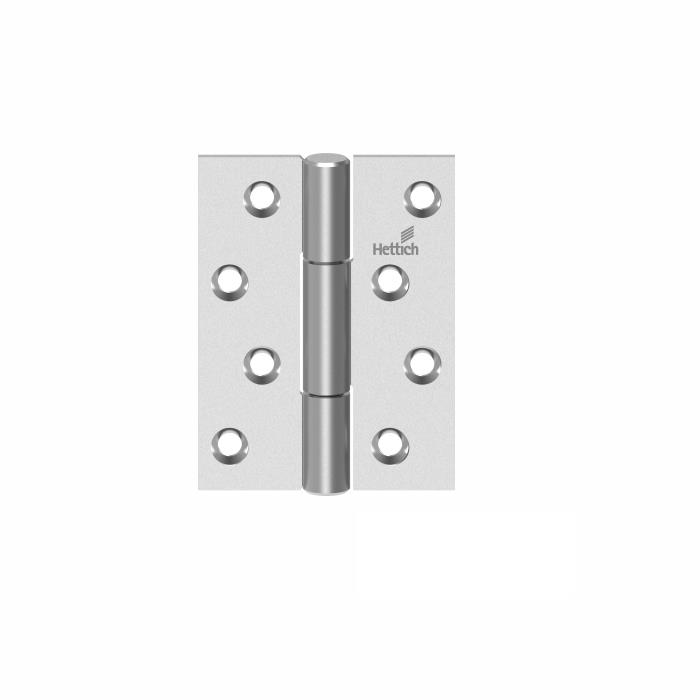

The Hettich HBN-14 is a stainless steel (SS 304) mortise flush door hinge designed for timber doors, built with a square edge and Z-shape drilling/hole pattern. It is laser welded and rated for a load capacity of up to 160 kg per pair, making it suitable for heavier residential and commercial door installations.

What It Does

This butt hinge mounts flush into the door and frame mortise, providing a stable, reliable pivot point for timber doors. It is engineered for durability and safety compliance, with fire resistance and cycle-tested performance backed by international standards.

Who It Helps

• Homeowners and contractors installing or replacing heavy timber doors
• Architects and builders specifying fire-rated door hardware for residential or commercial projects
• Hardware retailers and distributors sourcing certified, warrantied butt hinges

Key Capabilities

• Material: SS 304, laser welded construction
• Load capacity: Up to 160 kg per pair
• Durability testing: Tested to EN 1935 (Class 14) for 1 million (10 lakh) cycles
• Fire resistance: Tested for 120 minutes according to EN 1634
• Bearing: Teflon fluoropolymer-coated, grease-free bearing
• Warranty: 5 years
• Hole pattern: Z-shape drilling pattern, square edge
• Finish: Stainless steel (SS)

Product Specifications

Available Sizes and Pricing

The HBN-14 is offered in multiple sizes; pricing and stock status vary by size/SKU.

Buyer Questions This Page Should Answer

What door type is this hinge designed for?

It is designed for timber (wood) doors, mounted via mortise installation with a Z-shape drilling pattern.

How much weight can this hinge support?

Up to 160 kg per pair.

Is this hinge fire-rated?

Yes, it is tested for 120 minutes of fire resistance according to EN 1634.

What standards has it been tested against?

It meets EN 1935 Class 14, tested for 1 million (10 lakh) open/close cycles.

What warranty is included?

A 5-year warranty is provided.

What finish and material options are available?

The hinge is available in stainless steel (SS) finish only, made from SS 304 laser-welded material.

What sizes can I choose from?

Sizes include 4x3x3, 5x3x3, and 5x4x3 (inches).

Does it come with screws?

Yes, the net content includes the hinge with screws.

Where is it manufactured?

Country of origin is China.
