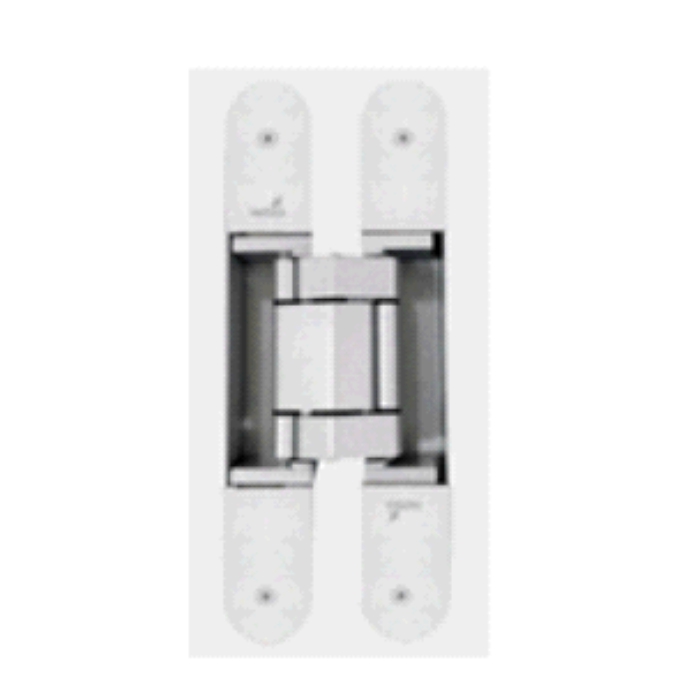

Hettich HBC-34-1845/246Z-3D: 3D-Concealed Hinge (Silver Finish)

Overview

The Hettich HBC-34-1845/246Z-3D is a 3D-concealed cabinet hinge designed to sit discreetly behind cabinet or furniture doors, enabling smooth and silent operation. It offers three-dimensional adjustment for precise door alignment and is built for higher load applications with a 120 kg/pair capacity.

What It Does

This hinge conceals its mechanism behind the door for a clean, seamless look on cabinetry and furniture. Its 3D adjustment feature lets installers fine-tune the door's height, depth, and side position after mounting, ensuring accurate alignment across the cabinet face.

Who It Helps

Cabinet and furniture manufacturers needing heavy-duty concealed hinges
Interior fit-out contractors installing doors with a minimum thickness of 45 mm
Homeowners or renovators sourcing replacement hinges rated for higher door weights

Key Capabilities

Attribute	Detail
Product name	Hettich HBC-34-1845/246Z-3D
Brand	Hettich
Category	Concealed Hinges
SKU	9228476
Finish	Silver
Material	Zinc alloy die-cast body with SS 304 connecting flanges
Loading capacity	Up to 120 kg per pair
Minimum door thickness	45 mm
Opening angle	180 degrees
Adjustment	3-dimension adjustment for alignment
Cycle testing	Tested for 200,000 cycles
Warranty	5 years
Country of origin	China
Net quantity	1 pair
Net content	Hinges with screws
Unit	Pair

Buyer Questions This Page Should Answer

What is the maximum weight this hinge can support?

Up to 120 kg per pair, making it suitable for heavier cabinet or furniture doors.

What is the minimum door thickness required?

45 mm minimum door thickness is required for proper installation.

What finish does this hinge come in?

This specific SKU (9228476) is finished in Silver.

What materials is the hinge made from?

Zinc alloy die-cast construction with SS 304 stainless steel connecting flanges.

How durable is the hinge?

It is tested for 200,000 open-close cycles and comes with a 5-year warranty.

Can the hinge be adjusted after installation?

Yes, it includes 3-dimension adjustment to fine-tune alignment.

What is included with purchase?

Hinges are supplied with screws, one pair per unit.

Comparison Context

Proof or Trust Signals

Manufactured under the Hettich brand, a recognized name in furniture and cabinet hardware fittings
Cycle-tested for 200,000 operations
Backed by a 5-year warranty
SS 304 connecting flanges for corrosion resistance

Resources or Next Steps

Current product facts

Last checked by Readable: 2026-09-24T07:59:58.318Z

Product: Hettich 3D Concealed Hinges
Brand: Hettich
Category: Door Hinges > Concealed Hinges > Other Categories
SKU: 9251128_P
Price: ₹5,302.9 (MRP ₹5,582)
Availability: InStock
Variants: Weight Capacity: 40 Kg, Weight Capacity: 80 Kg, Weight Capacity: 120 Kg, Finish Type: Matt Black, Finish Type: Silver
