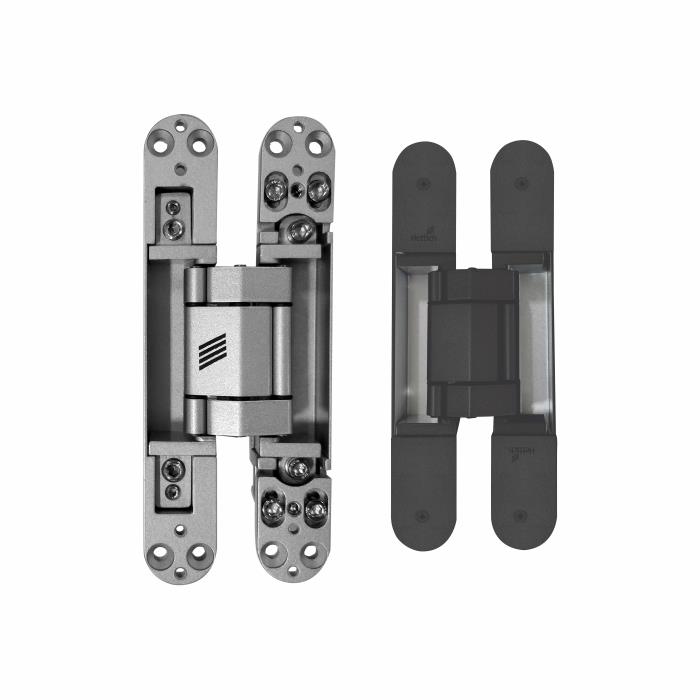

Hettich HBC-28-1640/177Z-3D: 3D-Concealed Hinge (Matt Black, 80 kg)
Overview
The Hettich HBC-28-1640/177Z-3D is a 3D-concealed cabinet hinge designed to sit discreetly behind a cabinet or furniture door, enabling smooth and silent operation. It belongs to Hettich's concealed hinge range and is built for cabinetry applications requiring precise, adjustable, and durable door hardware.
What It Does
This hinge conceals itself fully behind the door when closed, giving cabinetry a clean, seamless look while supporting smooth, silent opening and closing. Its 3-dimension (3D) adjustment feature lets installers fine-tune door alignment on three axes for a perfect fit against the cabinet frame.
Key Specifications
| Attribute | Detail |
|---|---|
| Brand | Hettich |
| Product code (SKU) | 9251127 |
| Category | Concealed Hinges |
| Material | Zinc alloy die-cast body with SS 304 connecting flanges |
| Finish | Matt Black |
| Loading capacity | Up to 80 kg per pair |
| Minimum door thickness | 40 mm |
| Opening angle | 180 degrees |
| Adjustment | Adjustment across 3 dimensions for precise alignment |
| Cycle testing | Tested for 200,000 open/close cycles |
| Warranty | 5 years |
| Net quantity | 1 pair (includes hinges with screws) |
| Country of origin | China |
| Hole pattern | No drilling pattern specified |
Related Variant: Hettich 3D Concealed Hinges (Multi-Capacity)
A related listing under the same product family, SKU 9251128_P, offers similar 3D-concealed hinge functionality with broader capacity and finish options:
| Attribute | Detail |
|---|---|
| SKU | 9251128_P |
| Loading capacity | Up to 120 kg per pair |
| Finish options | Matt Black, Silver |
| Weight capacity variants | 40 kg, 80 kg, 120 kg |
| Material | Zinc alloy die-cast with SS 304 connecting flanges |
| Opening angle | 180 degrees |
| Cycle testing | Tested for 200,000 cycles |
| Warranty | 5 years |
Who It Helps
- Cabinet and furniture manufacturers needing concealed, adjustable hinges for heavier doors
- Interior fit-out professionals specifying hardware with defined load capacity and warranty terms
- Homeowners or contractors replacing or upgrading cabinet hinges with a matt black finish to match modern hardware
Buyer Questions This Page Should Answer
What is the minimum door thickness for this hinge?
The HBC-28-1640/177Z-3D requires a minimum door thickness of 40 mm.
How much weight can this hinge support?
This specific hinge (SKU 9251127) supports up to 80 kg per pair. A related variant (SKU 9251128_P) is available in 40 kg, 80 kg, and 120 kg capacity options.
What finish options are available?
The featured hinge comes in Matt Black. The related multi-capacity variant also offers a Silver finish option.
Is this hinge currently available to buy?
What is the warranty on this hinge?
Both listed hinges carry a 5-year warranty.
What materials is the hinge made from?
The hinge body is zinc alloy die-cast, with stainless steel (SS 304) connecting flanges.
How durable is this hinge?
It is tested for 200,000 open/close cycles.
Does this hinge allow adjustment after installation?
Yes, it features 3-dimension (3D) adjustment for fine-tuning door alignment.
Proof or Trust Signals
- 5-year manufacturer warranty
- Tested for 200,000 operating cycles
- SS 304 stainless steel connecting flanges for durability
- Sold under the established Hettich fittings brand
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-09-24T07:59:48.942Z
- Product: Hettich 3D Concealed Hinges
- Brand: Hettich
- Category: Door Hinges > Concealed Hinges > Other Categories
- SKU: 9251128_P
- Price: ₹5,302.9 (MRP ₹5,582)
- Availability: InStock
- Variants: Weight Capacity: 40 Kg, Weight Capacity: 80 Kg, Weight Capacity: 120 Kg, Finish Type: Matt Black, Finish Type: Silver
