Hettich Grant 1230 with 3000 mm Runner, 147 Kg/Door
Overview

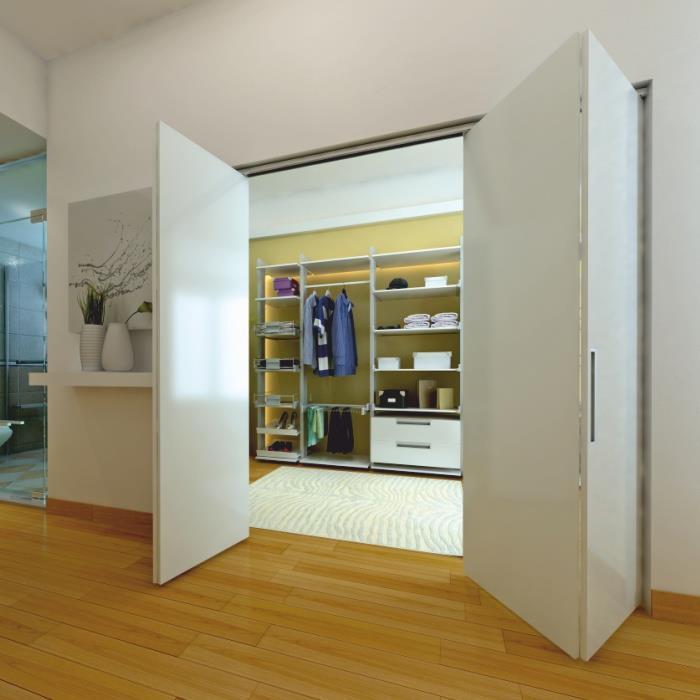

The Hettich Grant 1230 is a top-mounted sliding door system designed for heavy-duty residential and commercial applications, including room dividers. This 3000 mm runner variant supports doors up to 147 kg per door and a maximum door height of 3000 mm, making it suited for large, heavy wooden sliding or folding doors.
What It Does
Grant 1230 mounts at the top of the door opening and carries the door load through a four-wheel, centre-hung carrier riding on a heavy-duty aluminum I-beam track. It supports single, bi-parting, and by-passing door configurations, adapting to different sliding door layouts without changing the core hardware set.
Who It Helps
- Interior fabricators and carpenters building heavy wooden sliding or room-divider doors
- Architects and designers specifying hardware for large-format sliding partitions
- Homeowners and contractors needing a durable, quiet-operating sliding system rated for high door weights
Key Capabilities
- Mounting type: Top-mounted
- Headroom required: 82.5 mm min. to 92.5 mm max. (3 1/4" to 3 3/4")
- Applications: Single, bi-parting, and by-passing doors
- Operation: Precision ball-bearing wheels for smooth, quiet, effortless sliding
- Carrier: Four-wheel carrier, centre hung, for efficient load distribution
- Track: Heavy-duty aluminum I-beam track with jump-proof design
- Standards: Conforms to ANSI/BHMA standards, Grade 1
- Configuration notes: By-passing doors require parallel track mounting; bi-parting doors require an additional hardware set
- Warranty: 10 years
Product Specifications
| Specification | Value |
|---|---|
| Brand | Hettich |
| Product line | Sliding Door Solutions > Sliding Solutions for Room Divider System > Grant 1230 |
| SKU | 9296872.S |
| Track length | 3000 mm |
| Weight capacity per door | 147 kg |
| Maximum door height | 3000 mm |
| Minimum door thickness | 25.4 mm |
| Sliding type | Sliding and folding |
| Door material | Wood |
| Unit | Set |
| Number of doors | 1 |
| Cover profile | No |
| Lock option | No |
| Country of origin | India |
| Warranty | 10 years |
Buyer Questions This Page Should Answer
How heavy a door can the Grant 1230 (3000 mm) support?
Up to 147 kg per door.
What is the maximum door height this runner supports?
Up to 3000 mm.
What is the minimum door thickness required?
25.4 mm.
What door configurations does it support?
Single, bi-parting, and by-passing sliding doors. By-passing doors need parallel tracks; bi-parting doors need an extra hardware set.
How much headroom does installation require?
Between 82.5 mm (minimum) and 92.5 mm (maximum).
What door material is this designed for?
Wood.
Does it include a lock or cover profile?
No lock option and no cover profile are included with this set.
What standards does it meet?
ANSI/BHMA Grade 1 standards.
What is the warranty?
10 years.
Pricing and Availability
| Detail | Value |
|---|---|
| SKU | 9296872.S |
Resources
Current product facts
Last checked by Readable: 2026-09-24T07:58:05.217Z
- Product: Hettich Grant 1230 with 3000 mm Runner, 147 Kg / Door, max. height 3000 mm & min. thickness 25.4 mm
- Brand: Hettich
- Category: Sliding Door Solutions > Sliding Solutions for Room Divider System > Grant 1230
- SKU: 9296872.S
- Price: ₹414 (MRP ₹517)
- Availability: InStock
