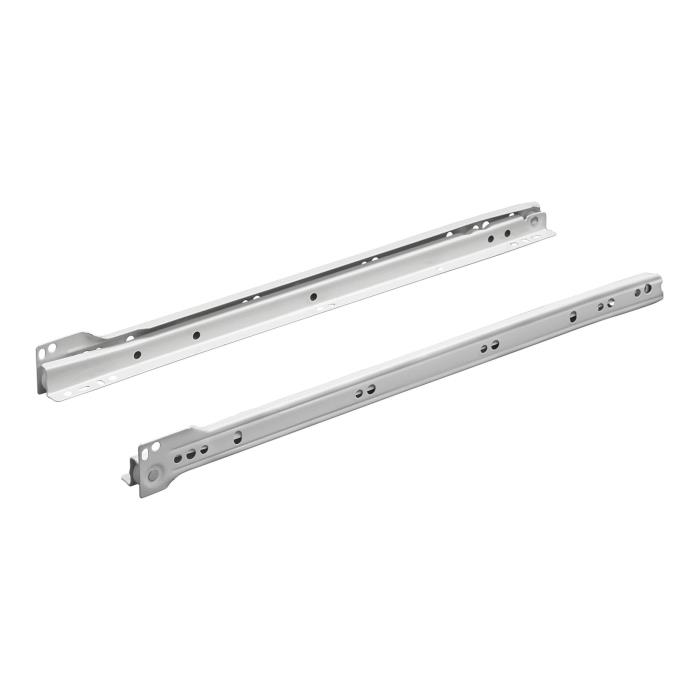

Hettich FR 302/400 mm White Drawer Channel

Overview

The Hettich FR 302 is a self-closing drawer channel (runner) system from Hettich's FR Runner with Stop Control range. It uses an integrated Stop Control mechanism to close drawers automatically and smoothly, and is built from powder-coated steel in a white finish. This listing covers the 400 mm size, SKU 1083319.

What It Does

FR 302 is a partial-extension drawer channel designed for cabinet drawers that need a durable, self-closing action. The integrated Stop Control mechanism pulls the drawer shut automatically once it is pushed close enough, reducing slamming and wear. It supports a loading capacity of 20 kg per set and is rated for 20,000 open/close cycles.

Who It Helps

This product is suited for:

• Modular kitchen and furniture fabricators sourcing drawer hardware
• Carpenters and interior contractors fitting cabinets with self-closing drawers
• Homeowners or renovators replacing worn drawer runners with a durable, tested channel

Key Capabilities and Specifications

Available Size Variants

• 250 mm
• 300 mm
• 350 mm
• 400 mm
• 450 mm
• 500 mm
• 550 mm

Buyers needing a size other than 400 mm should check availability and pricing for the specific variant length, as price varies by size.

Buyer Questions This Page Should Answer

What does FR 302 mean?

FR 302 is the model name for Hettich's drawer channel with an integrated Stop Control self-closing mechanism, part of the FR Runner with Stop Control series.

How much weight can it hold?

Each FR 302 set is rated for a loading capacity of 20 kg.

Is this a full-extension or partial-extension runner?

FR 302 is a partial extension drawer channel.

What sizes are available?

Sizes range from 250 mm to 550 mm in 50 mm increments (250, 300, 350, 400, 450, 500, 550 mm), with the 400 mm size listed at SKU 1083319.

What is the minimum cabinet depth required?

The minimum cabinet internal depth needed is 404 mm for the 400 mm channel.

What is the installation width?

The required installation width is 12.5 ± 1 mm.

What warranty does it come with?

Hettich provides a 10-year warranty on the FR 302 drawer channel.

How durable is it rated to be?

The channel is tested for 20,000 open/close cycles.

What is included in the package?

Each unit/set includes 2 runners.

What color/finish options exist?

This listing is available in a white, powder-coated steel finish.
