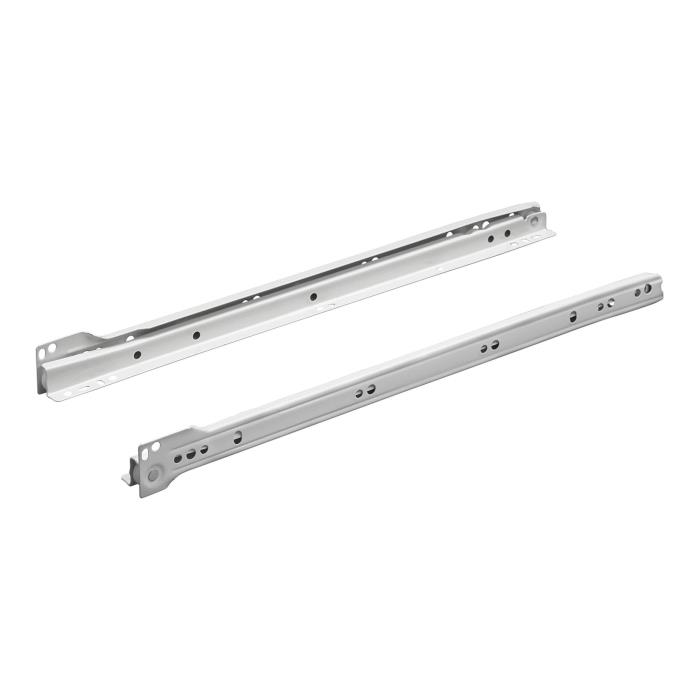

Hettich FR 302/250 mm White Roller Drawer Channel

Overview

What It Does

The FR 302 is a drawer channel system with an integrated Stop Control self-closing mechanism, so the drawer closes automatically once pushed within range. It uses partial extension, meaning the drawer does not pull out to its full depth, which suits compact cabinet installations.

Who It Helps

Key Capabilities

Product Specifications

SpecDetail
SKU75993
Size250 mm
Closing functionalityNormal Closing (self-closing / Stop Control)
Weight capacity20 Kg
MaterialPowder-coated steel, white
FinishWhite
UnitSet (1 unit = 2 runners)
Installation width12.5 ± 1 mm
Cycle testing20,000 cycles
Extension typePartial Extension
Minimum cabinet internal depth254 mm
Country of originChina
Warranty10 Years

Available Sizes

The FR 302 White Channel is available in multiple lengths beyond the 250 mm variant: 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, and 550 mm. Choose a size based on the cabinet's internal depth, keeping in mind the 254 mm minimum internal depth requirement for the 250 mm version.

Buyer Questions This Page Should Answer

What is the FR 302 roller channel used for?

It is a drawer slide/runner used to mount and smoothly operate light-duty drawers in cabinets and furniture, with an automatic self-closing feature.

How much weight can it hold?

Each FR 302 channel is rated for a 20 kg loading capacity.

Does it close automatically?

Yes. The integrated Stop Control mechanism provides self-closing action so the drawer shuts without manual force once pushed close enough.

What minimum cabinet depth is needed?

For the 250 mm size, the cabinet's internal depth should be at least 254 mm.

What does one unit include?

One package (unit) consists of 2 runners, which is the standard set needed per drawer.

Is it full extension or partial extension?

The FR 302 is a partial extension channel, so the drawer does not slide out to its complete depth.

What is the warranty?

Hettich backs the FR 302 with a 10-year warranty.

Where is it manufactured?

Country of origin is China.

What sizes are available?

250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, and 550 mm.
