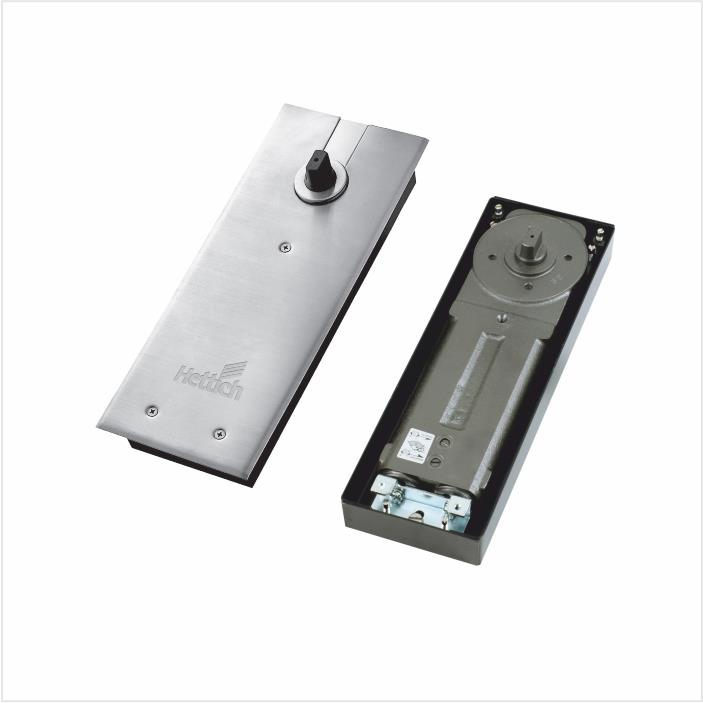

Hettich HTS FS844 Floor Spring (840 Series) – Fire Rated
Overview
The Hettich HTS FS844 is a cam action floor spring (door closer body) designed for commercial and high-traffic glass, wooden, steel, or profile-framed doors. It is fire rated, EN1154 certified, and tested for 500,000 open/close cycles. This listing covers the floor spring body only, for a door width of 1100 mm, without accessories.
What It Does
The floor spring is installed at the base of a door to control smooth opening and closing. It includes an inbuilt back check and an optional hold-open function at 90°, allowing the door to stay open at that angle without additional hardware. It suits single or double leaf doors and works with both DIN Left and DIN Right door configurations.
Who It Helps
- Architects, contractors, and facility managers specifying door hardware for commercial or high-traffic entrances
- Fabricators installing glass doors that need reliable, fire-rated closing mechanisms
- Buyers replacing or upgrading floor springs on doors within the 850–1100 mm width range
Key Capabilities
| Spec | Detail |
|---|---|
| Product | Hettich Floor Spring HTS FS844 (Body) |
| Series | 840 Series |
| Door weight capacity | 40 kg – 150 kg |
| Door width | 850 mm – 1100 mm |
| Door opening angle | 130° |
| Hold open | Optional, at 90° (no accessories required) |
| Back check | Inbuilt |
| Handing | Both DIN Left / DIN Right |
| Door type | Steel, wooden, or profile-framed |
| Fire rated | Yes |
| Certification | EN1154 |
| Cycle testing | 500,000 cycles |
| Finish | Silver |
| Warranty | 5 years |
| Net content | 1 set floor spring |
| Country of origin | China |
| SKU | 9227847 |
Buyer Questions This Page Should Answer
What door widths does the HTS FS844 support?
It is rated for door widths between 850 mm and 1100 mm.
How heavy a door can it handle?
Doors weighing 40 kg up to a maximum of 150 kg.
Does it hold the door open automatically?
Yes, it has an optional hold-open feature at 90° that works without extra accessories.
Is it certified for fire-rated door applications?
Yes, it is EN1154 certified and marketed as fire rated.
How durable is the mechanism?
Hettich states it is tested for 500,000 open/close cycles.
What is included with this SKU?
This listing is for the floor spring body only (1 set), for 1100 mm door width, without additional accessories.
Is it suitable for single or double doors?
Yes, it is applicable for both single and double leaf doors, and supports both DIN Left and DIN Right handing.
What is the warranty?
Hettich offers a 5-year warranty on this floor spring.
Is it currently available to purchase?
Proof or Trust Signals
- EN1154 certification for door closing devices
- 500,000-cycle durability testing
- Fire-rated classification
- 5-year manufacturer warranty
- Hettich brand, part of the 840 Series door locking solutions range
Pricing
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-09-25T18:46:51.283Z
- Product: Hettich Floor Spring -HTS FS844 (Body): For Door Width 1100 mm, Hold open at 90°without accessories; EN1154 Certified; 500,000 cycle tested; Fire rated.
- Brand: Hettich
- Category: Door Locking Solution > Floor Spring > 840 Series (Door Weight 150 Kg) > Other Categories
- SKU: 9227847
- Price: ₹11,976.65 (MRP ₹12,607)
- Availability: OutOfStock
