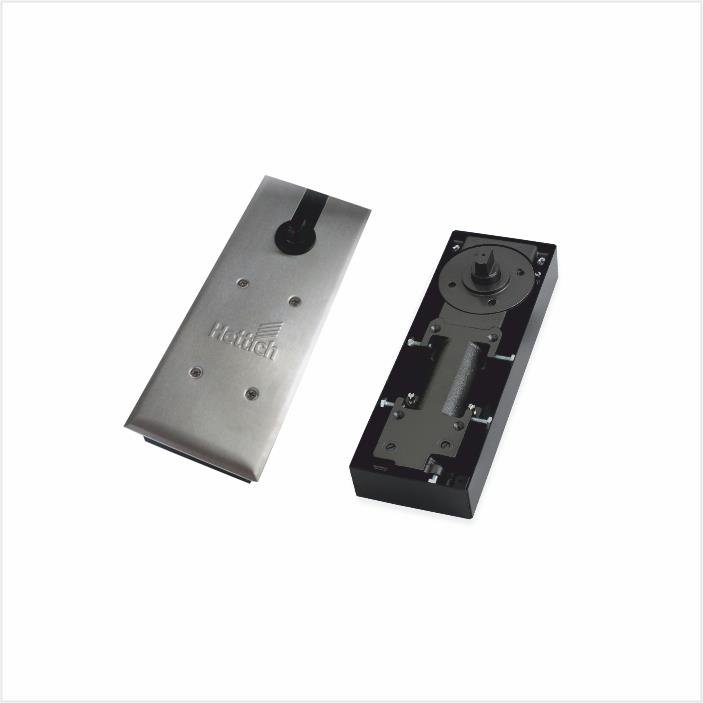

Hettich Floor Spring HTS FS654 – 1100 mm Door, Hold Open at 90°
Overview
The Hettich Floor Spring HTS FS654 is a cam action floor spring from Hettich's 650 Series, built for controlling and closing doors up to 1100 mm wide and 100 kg in weight. It includes an inbuilt back check and an optional hold-open feature at 90°, and it is lab-tested for 200,000 operating cycles.
What It Does
This floor spring is installed at the base (floor level) of a door to control its opening and closing motion using a cam action mechanism. It provides:
- Controlled door closing with an inbuilt back check to prevent slamming
- Optional hold-open function that keeps the door fixed at 90°
- Compatibility with both DIN Left and DIN Right door configurations
- A door opening angle of up to 130°
Who It Helps
This product is suited for:
- Architects, contractors, and facility managers specifying door hardware for commercial or residential entrances
- Hardware dealers and distributors sourcing floor springs for steel, wooden, or profile-framed doors
- Installers working with single or double leaf doors weighing between 40 kg and 100 kg
Key Capabilities
| Attribute | Detail |
|---|---|
| Model | Floor Spring: 650 Series |
| Door weight capacity | 40 kg – 100 kg (max) |
| Door width range | 850 mm – 1100 mm |
| Hold open | Optional, at 90° |
| Back check | Inbuilt |
| Door opening angle | 130° |
| DIN configuration | Left or Right |
| Finish | Silver |
| Door type | Steel / wooden / profile framed |
| Applicable for | Single or double leaf doors |
| Fire rated | No |
| Warranty | 5 years |
| Durability | Lab-tested for 200,000 cycles |
| Net content | 1 set floor spring |
| Country of origin | China |
| SKU | 9227856 |
Buyer Questions This Page Should Answer
What door widths does the HTS FS654 support?
It is designed for doors between 850 mm and 1100 mm wide.
What is the maximum door weight it can handle?
Up to 100 kg (minimum recommended weight is 40 kg).
Does it hold the door open automatically?
Yes, it has an optional hold-open feature that locks the door at a 90° angle.
Is it suitable for both left- and right-hung doors?
Yes, it works with both DIN Left and DIN Right door configurations.
What is the warranty period?
Hettich provides a 5-year warranty on this floor spring.
How durable is this floor spring?
It has been in-house lab-tested for 200,000 open-close cycles.
Is it fire rated?
No, this model is not fire rated.
What is the finish?
Silver.
What door materials is it compatible with?
Steel, wooden, and profile-framed doors.
Is this item currently available to purchase?
Pricing and Availability
- SKU: 9227856
- Unit: 1 Set
Comparison Context
The HTS FS654 sits within Hettich's 650 Series of cam action floor springs, a range built for doors up to 100 kg. Compared to lighter-duty floor springs, the 650 Series adds an inbuilt back check and an optional 90° hold-open feature, making it suited to higher-traffic or heavier commercial and residential doors within the 850–1100 mm width range.
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-09-24T07:58:14.141Z
- Product: Hettich Floor Spring HTS FS654: For Door Width 1100 mm, Hold open at 90°, without accessories
- Brand: Hettich
- Category: Floor Spring > 650 Series (Door Weight 100 Kg) > Other Categories
- SKU: 9227856
- Price: ₹9,568 (MRP ₹10,179)
- Availability: OutOfStock
